Description
Overview:

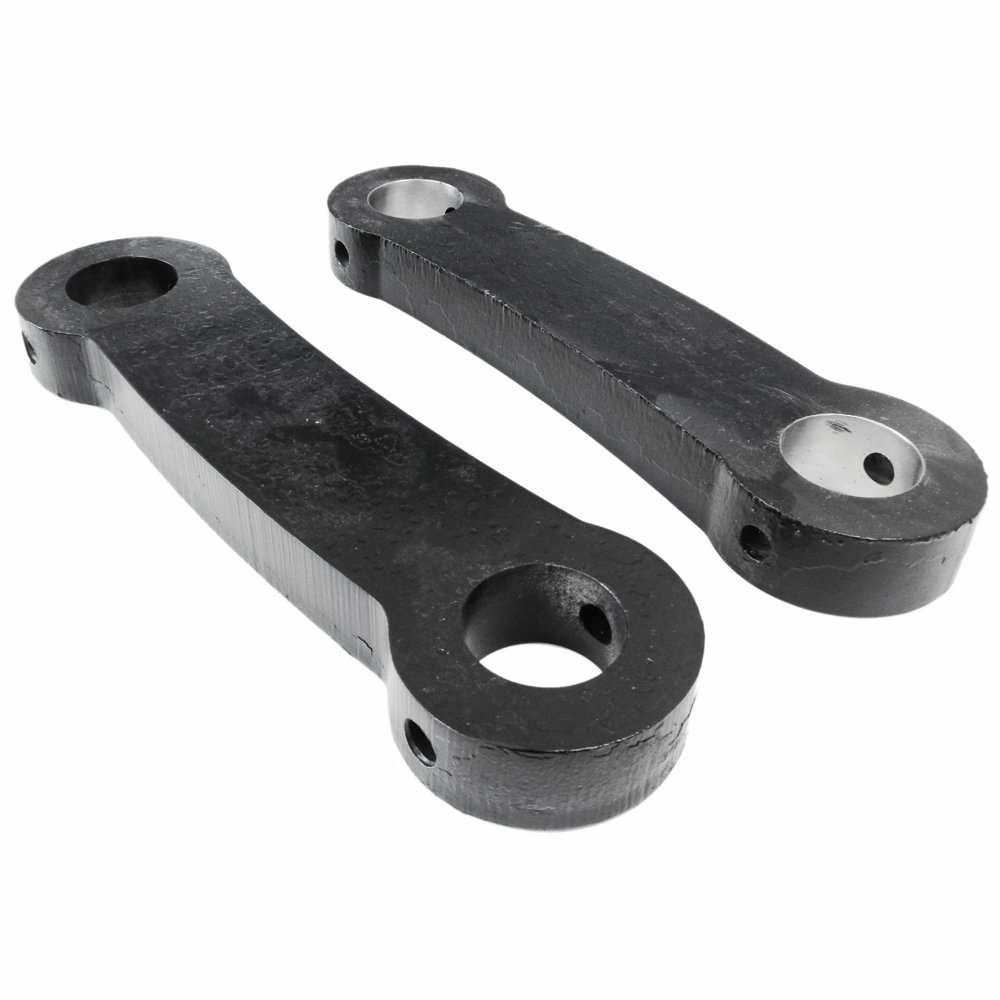

The Tipping Links are non-genuine replacement components for JCB mini excavators in the 802-804 Series, including popular models such as the JCB 802 and 804. Manufactured from heavy-duty steel with accurately machined eye bores, they connect the bucket linkage and help transmit force smoothly through the digging cycle. Replacing worn, bent, or elongated links restores correct geometry, improves bucket control, and reduces play. These links are designed as a direct-fit aftermarket alternative to the original part, replacing OEM reference 331/23311. Suitable for trade users, hire fleets, and DIY maintenance, they help keep machines working reliably in tough site conditions and reduce unplanned downtime when linkage wear affects performance.
Key Features:
- Non-genuine, cost-effective replacement for OEM 331/23311
- Heavy-duty steel construction for strength under high loads
- Precision-machined bores to suit original pin and bush sizes
- Restores smooth articulation and reduces slack in the bucket linkage
- Designed for JCB 802-804 Series mini excavators
- Direct-fit geometry for straightforward installation using standard workshop tools
- Built to cope with frequent cycling and abrasive site environments
- Helps extend service intervals by replacing worn linkage components early
Typical Applications:
Used during routine maintenance or repairs when bucket action becomes loose, uneven, or noisy. Common in groundworks, utilities, landscaping, and construction tasks where frequent digging and loading accelerates linkage wear. Suitable for workshop overhauls or on-site repairs to minimise downtime and keep JCB mini excavators operating safely and efficiently.
Also known as:
Bucket tipping link, bucket link, dog bone link, dipper link, excavator bucket linkage, linkage arm, centre link, bucket lever link.
Fits Models:
802, 802-804 Series, 802.7 SUPER, 8025, 8025 ZTS ORFS, 8025CTS, 8025ZTS, 8025ZTSORFS, 8026 CTS, 8026CTS, 8027, 8027Z, 803, 803 MAGNUM, 803 PLUS, 803 SUPER, 8030, 8030 ZTS ORFS, 8030ZTS, 8030ZTSORFS, 8032, 8032Z, 8035, 8035 ZTS ORFS, 8035ZTS, 8035ZTSORFS, 804, 804 SUPER
Alternate Part Numbers:
331/23311, 33123311
Product Specifications
| L&S Part No. | 202 754 |
|---|---|
| Unit of Sale | 1 |
| Applications | 802, 802-804 Series, 802-804Series, 802.7 SUPER, 802.7SUPER, 8025, 8025 ZTS ORFS, 8025CTS, 8025ZTS, 8025ZTSORFS, 8026 CTS, 8026CTS, 8027, 8027Z, 803, 803 MAGNUM, 803 PLUS, 803 SUPER, 8030, 8030 ZTS ORFS, 8030ZTS, 8030ZTSORFS, 8032, 8032Z, 8035, 8035 ZTS ORFS, 8035ZTS, 8035ZTSORFS, 803MAGNUM, 803PLUS, 803SUPER, 804, 804 SUPER, 804SUPER |
| Machine Type | Excavators |
| Fits Models | 802 | 803 | 804 | 8025 | 8027 | 8030 | 8032 | 8035 |
