Description
Overview:

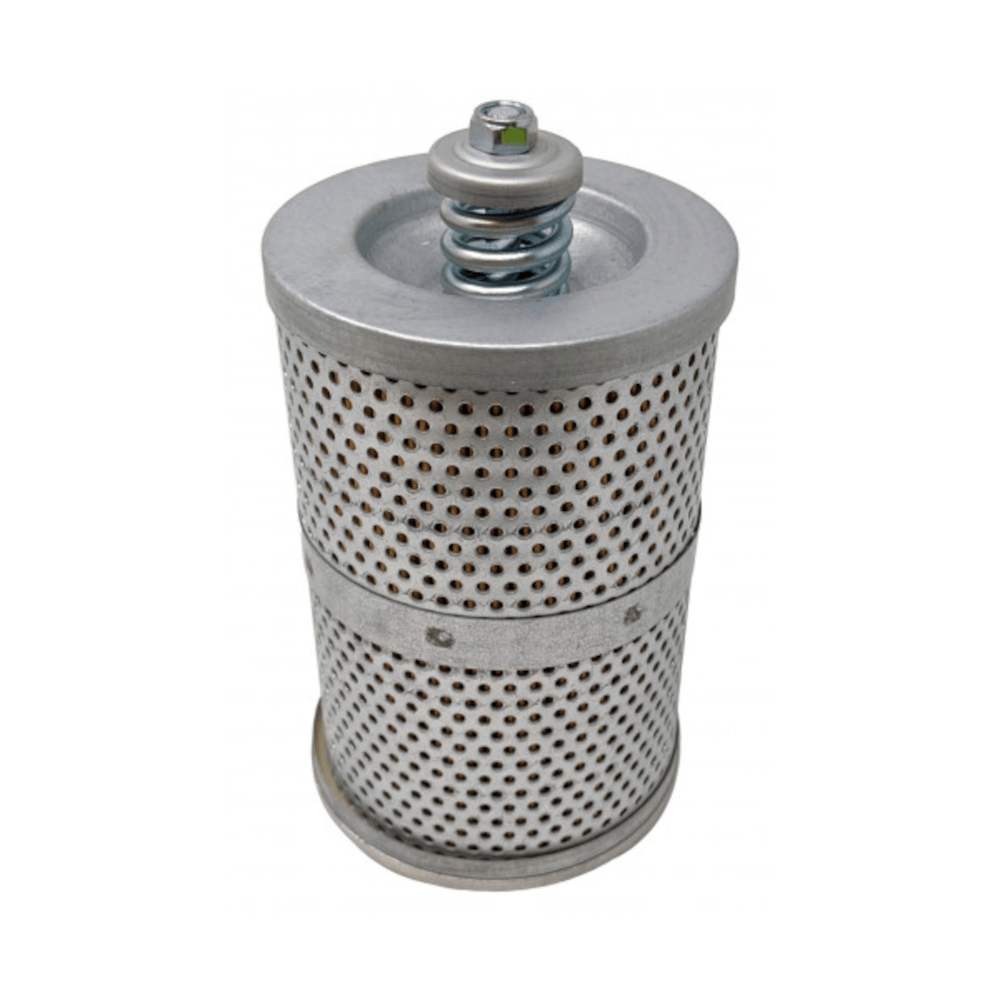

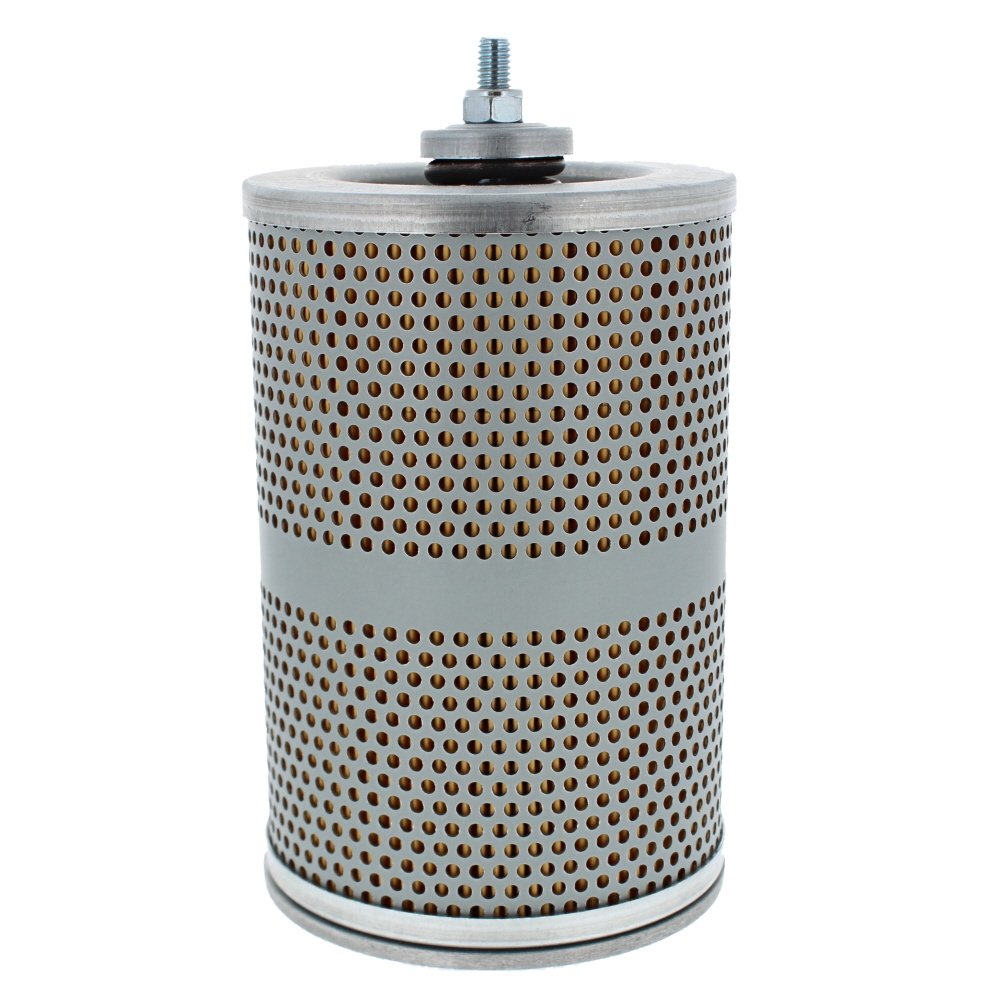

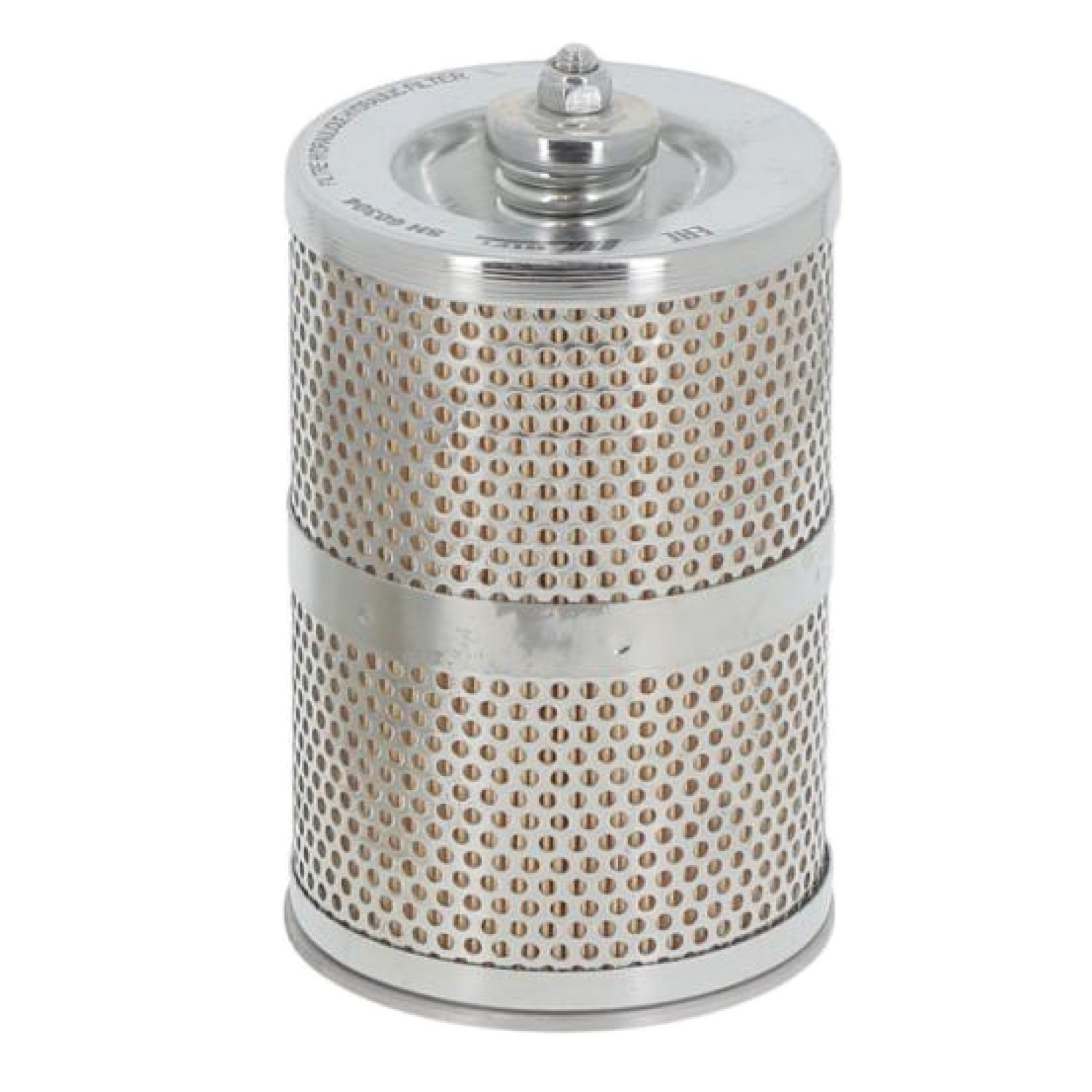

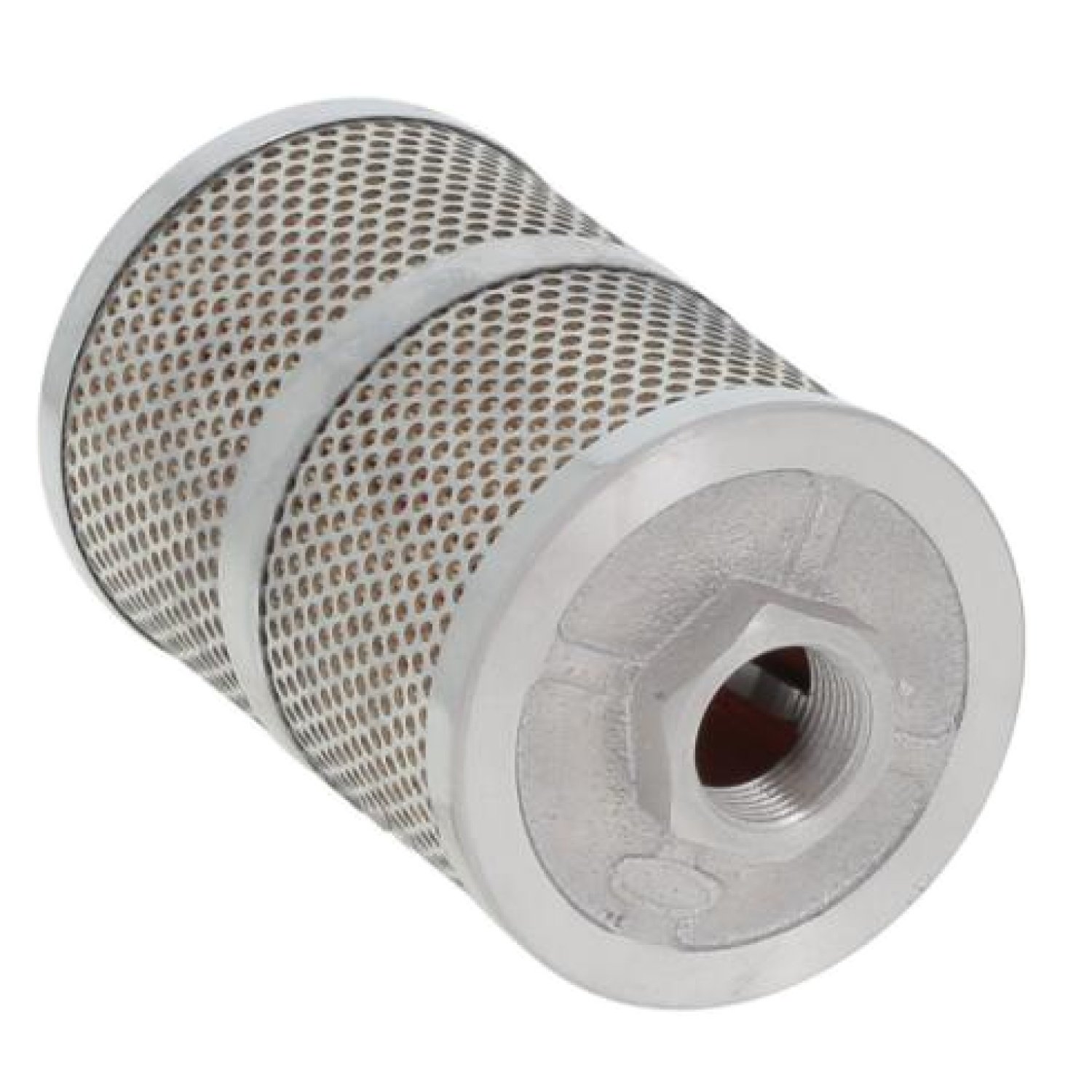

The Hydraulic Return Filter replaces OEM number RD41162120 and is a Genuine part for Kubota KX161-3 Mini Diggers. This filter is located in the hydraulic system and functions to remove contaminants from the hydraulic fluid as it returns to the reservoir, protecting the system from debris and wear. Compatible with models including KX161-3 and TB23R.
Key Features:
- Genuine OEM part
- Replaces RD41162120
- Essential for hydraulic system contamination control
- Suitable for Kubota and Takeuchi models
- Integral to maintaining hydraulic fluid purity
Typical Applications:
Used in the hydraulic systems of mini diggers to filter returning fluid, preventing debris from circulating and causing damage or wear.
Also known as:
Hydraulic Filter, Return Oil Filter, Hydraulic Oil Return Filter.
Fits Models:
KX161-3, KX1613, TB 20R, TB 23R, TB 23 R, TB20R, TB23R
Alternate Part Numbers:
RC 08302 A 001 A, RD411.6212.0, RD 411-62120, 36330-8263-0, RC08302A001A, 15521.03100, 15511-03100, 3607790 M 1, RD41162120, 1551103100, 1552103100, 1200383660, 3633082630, SPH 94022, 3607790M1, SH 60304, HY 90354, WHY 6823, SFH 6212, SH 60306, SH 60309, SH 60307, SH 60314, SPH94022
Product Specifications
| L&S Part No. | LH2093 |
|---|---|
| Unit of Sale | 1 |
| Fits Brands | Kubota, Takeuchi |
| Key Features | - Replaces part number RD41162120. - Fits Kubota KX161-3 mini diggers. - Genuine OEM hydraulic return filter. - Compatible with TB 20R and TB 23R models. - Interchangeable with multiple OEM numbers. |

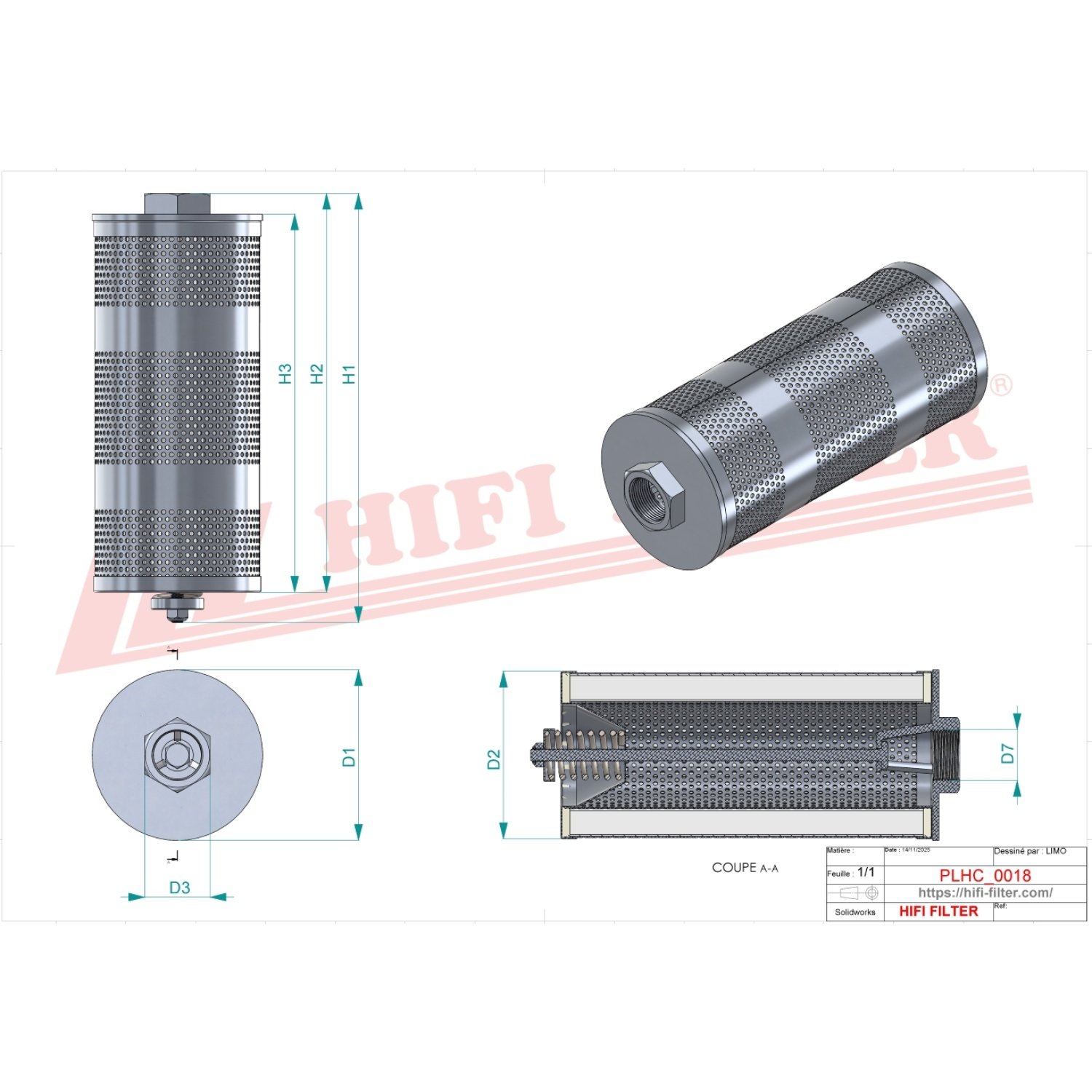

| Filter Specifications | D1: 107mm D2: 105.5mm D3: 41mm H1: 198mm H2: 170mm H3: 159mm Thread: 1"-BSPT |
| Fits Models | KX161-3 |
