Description
Overview:

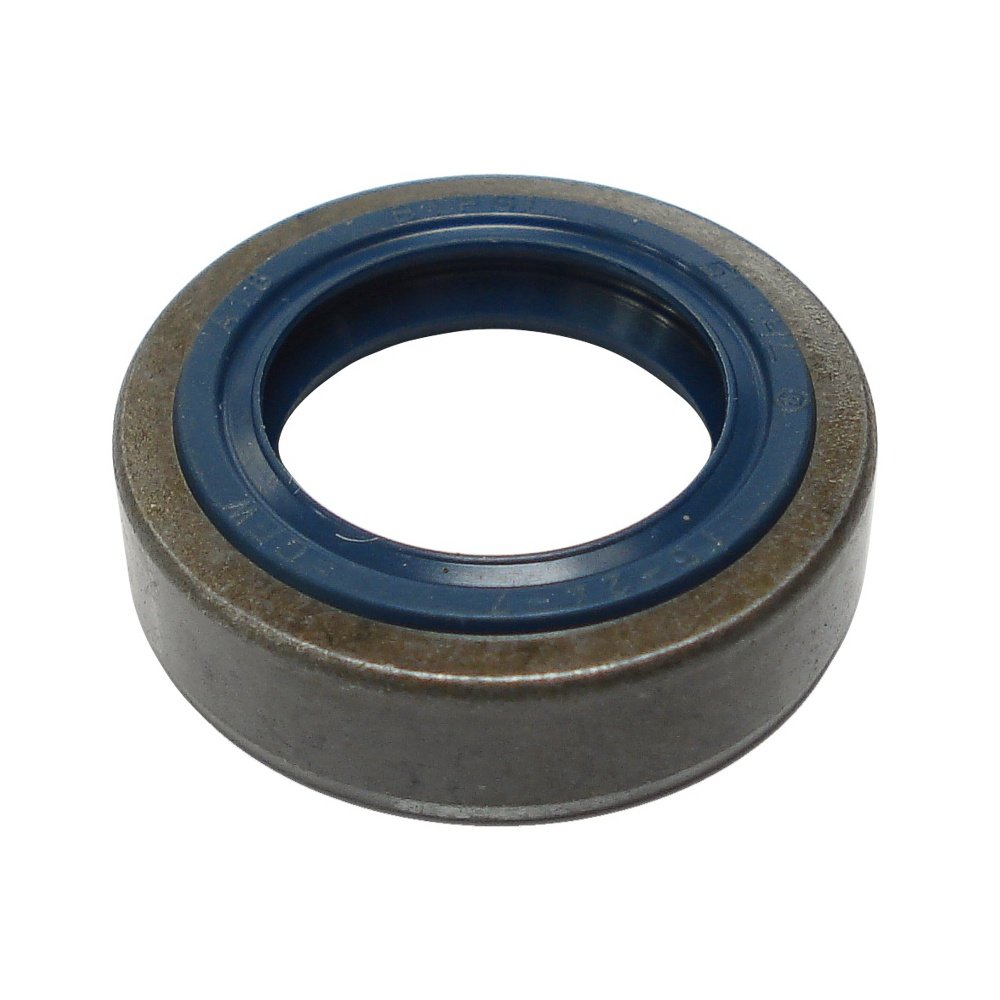

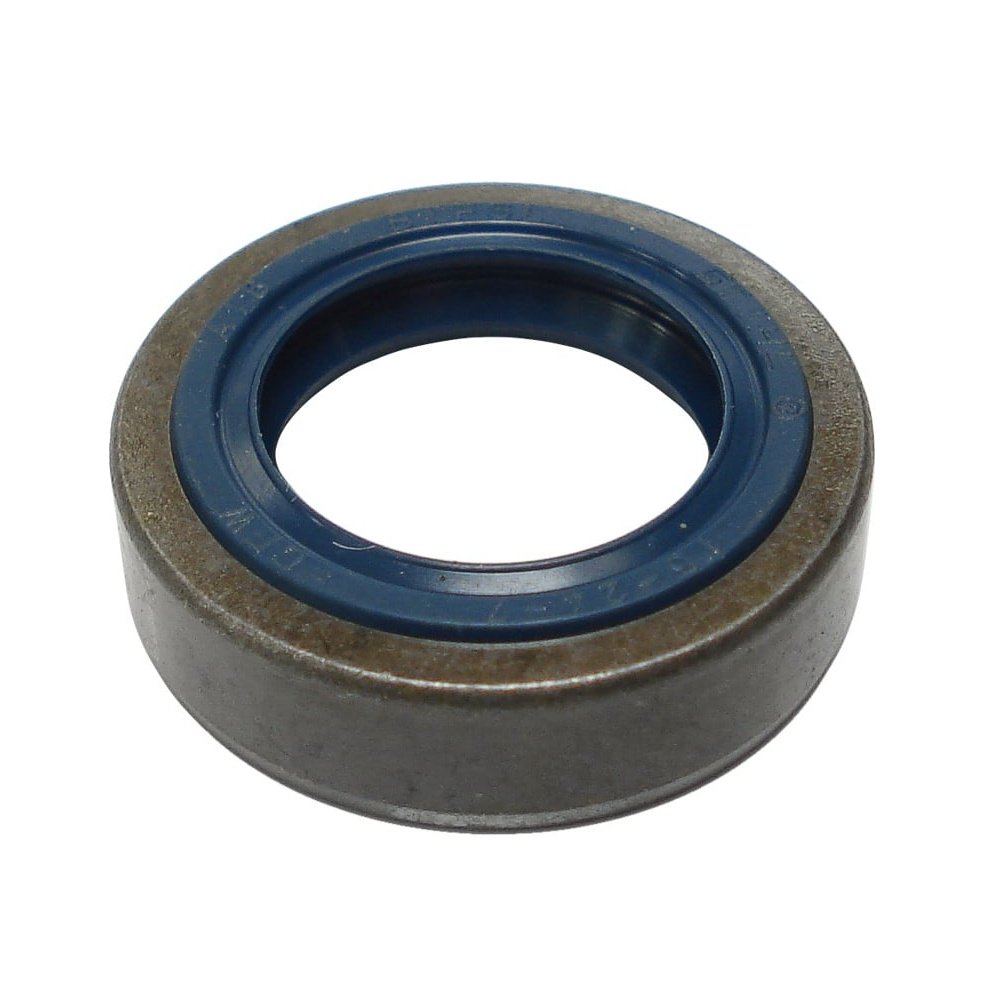

This non-genuine Oil Seal 15 x 24 x 7 mm (0.59 x 0.94 x 0.28 in) is a quality replacement for Stihl machinery that uses a 15 mm shaft and 24 mm housing bore. It is designed to replace OEM part number 9640 003 1570 and is suitable for disc cutters such as the TS400 and TS410, as well as a range of other Stihl tools. The seal features a durable elastomer lip with metal reinforcement to maintain a tight seal around rotating shafts. Its job is to keep oil in and contaminants out, helping engines and drive components maintain proper lubrication and efficiency, and supporting reliable running under everyday site and garden use.
Key Features:
- Direct replacement for OEM 9640 003 1570, sized 15 x 24 x 7 mm (0.59 x 0.94 x 0.28 in)
- Robust elastomer sealing lip with metal support for long service life
- Helps prevent oil leakage and ingress of dust and debris
- Supports stable crankcase or gearbox sealing on rotating shafts
- Suitable for a wide range of Stihl disc cutters and handheld tools
- Compact, standard form factor for straightforward fitting with basic tools
- Cost-effective alternative to OEM while maintaining reliable performance
- A practical spare for preventative maintenance and repairs
Typical Applications:
Used during engine or drive-end servicing to reseal rotating shafts in disc cutters, brushcutters, chainsaws, blowers and sprayers. Ideal for fixing oil weeps, restoring crankcase integrity, or renewing worn seals during rebuilds. Helps maintain correct lubrication, performance and starting behaviour on Stihl handheld equipment operating in dusty or wet environments.
Also known as:
Rotary shaft seal, radial oil seal, oil lip seal, crankcase seal, engine oil seal, shaft gasket, rubber shaft seal.
Fits Models:
041 AV, 041 FB, 041 G, 042 AV, 048, 050, 051, 075, 076, BG 17, FS 20, FS 360 C, FS 410, FS 410 AV, FS 410 C, MS 241 C, SG 17, SG 17 L, TS 400, TS 410, TS 420, TS 50, TS 510, TS 760
Alternate Part Numbers:
9640 003 1570, 96400031570
Product Specifications
| L&S Part No. | 400 203 |
|---|---|
| OEM No. | 8322 |
| Unit of Sale | 1 |
| Size | 15 x 24 x 7mm |
| Applications | 041 AV, 041 FB, 041 G, 041AV, 041FB, 041G, 042 AV, 042AV, 048, 050, 051, 075, 076, BG 17, BG17, FS 20, FS 360 C, FS 410, FS 410 AV, FS 410 C, FS20, FS360C, FS410, FS410AV, FS410C, MS 241 C, MS241C, SG 17, SG 17 L, SG17, SG17L, TS 400, TS 410, TS 420, TS 50, TS 510, TS 760, TS400, TS410, TS420, TS50, TS510, TS760 |
| Machine Type | Disc Cutters |
| Fits Models | TS400 | TS410, TS420 | TS510 | FS360C FS410C | FS20 | FS410AV (old model) | MS241C | SG17, SG17L |
