Description
Overview:

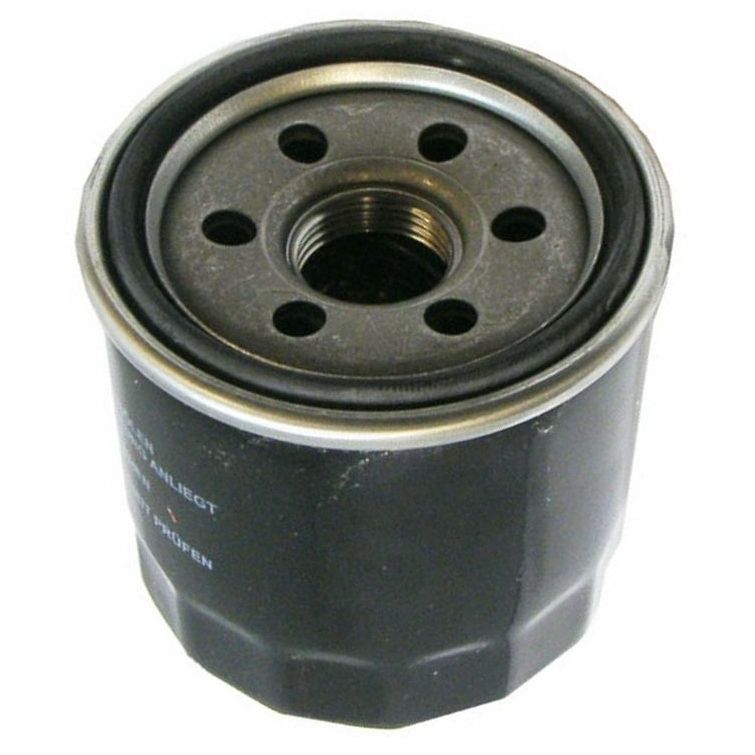

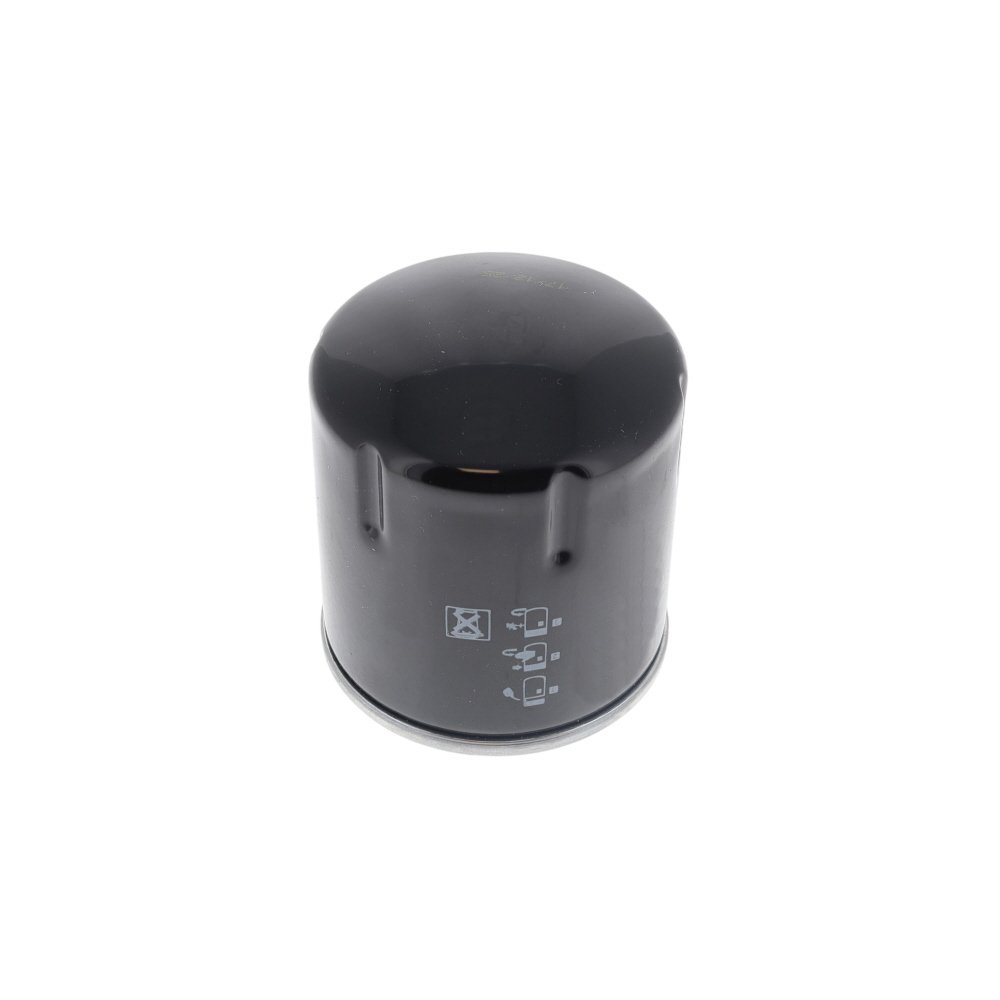

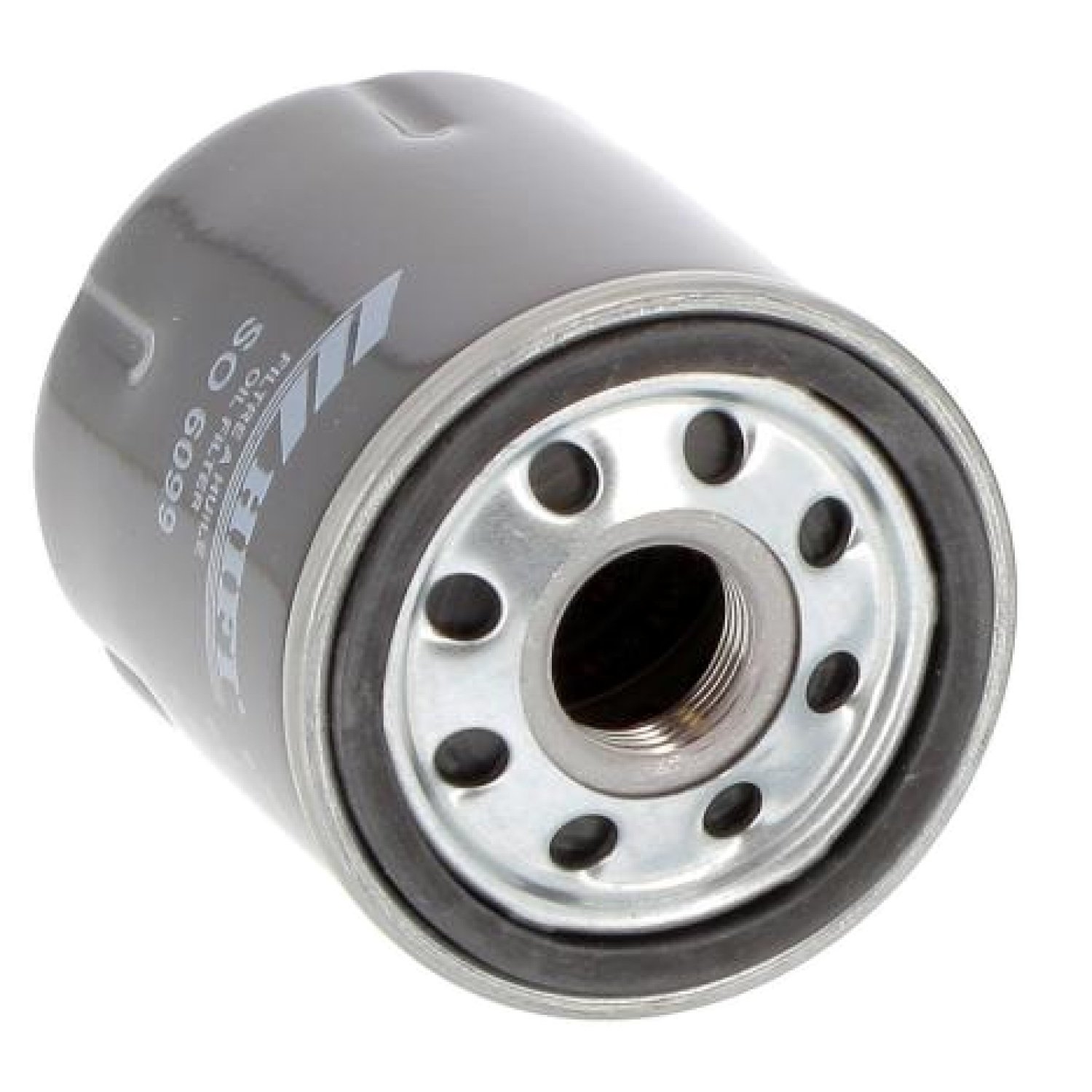

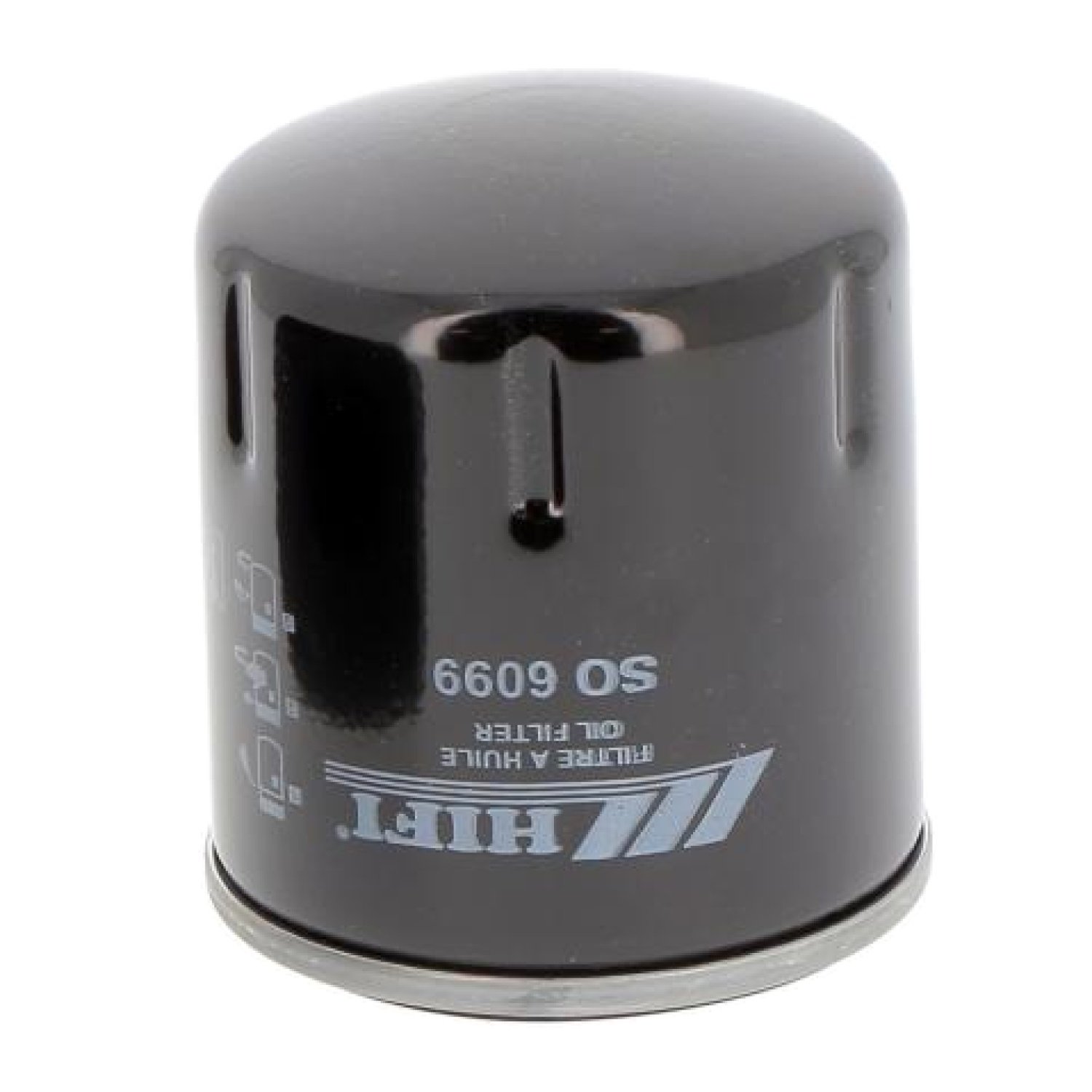

The Spin-On Oil Filter (68 x 68 mm) is a replacement filter designed for small diesel engines used in compact tractors, mowers, UTVs and mini excavators. It uses a metal canister with a pleated filtration media and a moulded sealing gasket to keep contaminants out of the lubrication system. The compact body makes it easy to fit in tight engine bays. Dimensions are 68 x 68 x 68 mm (2.68 x 2.68 x 2.68 inches) with an M20 x 1.5 thread. Suitable for a wide range of listed machines, including Kubota BX2350D and GR2120. This aftermarket filter supports reliable oil flow and protection during routine services, helping maintain engine performance and service life when changed at recommended intervals.
Key Features:
- Spin-on design for quick, straightforward replacement
- Compact 68 x 68 x 68 mm size (2.68 x 2.68 x 2.68 inches) for tight spaces
- M20 x 1.5 thread to match specified applications
- Robust metal canister with leak-resistant sealing gasket
- Pleated media helps capture wear particles and sludge
- Supports stable oil pressure and flow in small diesel engines
- Suitable aftermarket replacement for HH150-32430 equivalents
- Aids engine longevity when used at scheduled service intervals
- Ideal for tractors, ride-on mowers, UTVs and compact excavators listed
- Easy to remove and refit with basic hand tools
Typical Applications:
Routine oil service on compact tractors, out-front and ride-on mowers, utility vehicles and mini excavators. Used to filter engine oil on machines working in agriculture, landscaping, grounds care, light construction and hire fleets, helping reduce engine wear in dusty or heavy-duty conditions.
Also known as:
Lube filter, lubrication filter, spin-on cartridge, canister filter, engine lube spin-on, service filter, HH150-32430 equivalent filter.
Fits Models:
B1410, B1610, B7300HSD, B7400HSD, B7410DT, B7510DT, B7510HSD, B7610HSD, BW80AD2, BW80ADH-2, BX1500D, BX1800, BX1800D, BX1830D, BX1850D, BX1860D, BX1870, BX2230D, BX2350D, BX2360, BX2370, BX24, BX25, BX25D, Front Runner, FrontRunner, G18, G1800, G1800S, G18HD, G1900, G1900S, G2000, G2000S, G2160, G2460G, GF1800, GF1800E, GF1800E-R, GF1800R, GR2100, GR2110, GR2120, GZD15HD, GZD15LD, KC110H, KC110HR, KX018-4, KX0184, KX36, KX36-3, KX363, KX41, KX41-3, KX413, Lazer Z XS, LazerZXS, RTV-X900, RTV400, RTV400Ci, RTV500, RTV900R-ASD, RTV900S-ASD, RTV900T-TSD, RTV900W-HSD, RTVX900, SP4554, T1600, TG1860, U17-3, U17-3 Alpha, U17-3Alpha, U173, Z482-E, Z482E, ZD18, ZD21, ZD221, ZD321, ZD323, ZG222, ZG227, D 85 AHG, D 85 AHA, D 120 AHG, D 120 AHA, D 150 AHP 4x4, Z 34, Z 22 BI, Z 45, Z 25 BI, Z 25 J, PC 55MR 5, PC 55 MR 5MO, AD 3 T, AD 4 T, AD 9 T, AD 35, AD 4 5 T, CS 171, CV 32 7 NQ, MACH 274, MACH 377, MACH 420, MACH 471, MACH 474, MACH 475, MACH 477, MACH 478, MACH 573, MACH 580, EC 20D, EC 20E, EC 35, ECR 38, VIO 50 6A, D85AHG, D85AHA, D120AHG, D120AHA, D150AHP4X4, Z34, Z22BI, Z45, Z25BI, Z25J, PC55MR5, PC55MR5MO, AD3T, AD4T, AD9T, AD35, AD45T, CS171, CV327NQ, MACH274, MACH377, MACH420, MACH471, MACH474, MACH475, MACH477, MACH478, MACH573, MACH580, EC20D, EC20E, EC35, ECR38, VIO506A, BW80ADH2, FRONTRUNNER, GF1800ER, LAZERZXS, RTV400CI, RTV900RASD, RTV900SASD, RTV900TTSD, RTV900WHSD, U173ALPHA
Alternate Part Numbers:
FIN-FL70547, HH150-32430, 15853-32430, HH150.32430, W21ES0.1500, 1585332430, FINFL70547, HH15032430, 1585399170, 2913318000, W21ES01500, FBW-B7285, 211-63760, 21163760, FBWB7285, WGL9187, FL70547, SP 4554, 5002644, SP 4028, SO 6099, 1158189, 6671057, SP4554, SP4028
Product Specifications
| L&S Part No. | LO9111 |
|---|---|
| Unit of Sale | 1 |
| Size | Size: 68 x 68 x 68mm x Thread: M20-1.5 |
| Applications | B1410, B1610, B7300HSD, B7400HSD, B7410DT, B7510DT, B7510HSD, B7610HSD, BW80AD2, BW80ADH-2, BX1500D, BX1800, BX1800D, BX1830D, BX1850D, BX1860D, BX1870, BX2230D, BX2350D, BX2360, BX2370, BX24, BX25, BX25D, Front Runner, FrontRunner, G18, G1800, G1800S, G18HD, G1900, G1900S, G2000, G2000S, G2160, G2460G, GF1800, GF1800E, GF1800E-R, GF1800R, GR2100, GR2110, GR2120, GZD15HD, GZD15LD, KC110H, KC110HR, KX018-4, KX0184, KX36, KX36-3, KX363, KX41, KX41-3, KX413, Lazer Z XS, LazerZXS, RTV-X900, RTV400, RTV400Ci, RTV500, RTV900R-ASD, RTV900S-ASD, RTV900T-TSD, RTV900W-HSD, RTVX900, SP4554, T1600, TG1860, U17-3, U17-3 Alpha, U17-3Alpha, U173, Z482-E, Z482E, ZD18, ZD21, ZD221, ZD321, ZD323, ZG222, ZG227, D 85 AHG, D 85 AHA, D 120 AHG, D 120 AHA, D 150 AHP 4x4, Z 34, Z 22 BI, Z 45, Z 25 BI, Z 25 J, PC 55MR 5, PC 55 MR 5MO, AD 3 T, AD 4 T, AD 9 T, AD 35, AD 4 5 T, CS 171, CV 32 7 NQ, MACH 274, MACH 377, MACH 420, MACH 471, MACH 474, MACH 475, MACH 477, MACH 478, MACH 573, MACH 580, EC 20D, EC 20E, EC 35, ECR 38, VIO 50 6A, D85AHG, D85AHA, D120AHG, D120AHA, D150AHP4X4, Z34, Z22BI, Z45, Z25BI, Z25J, PC55MR5, PC55MR5MO, AD3T, AD4T, AD9T, AD35, AD45T, CS171, CV327NQ, MACH274, MACH377, MACH420, MACH471, MACH474, MACH475, MACH477, MACH478, MACH573, MACH580, EC20D, EC20E, EC35, ECR38, VIO506A, BW80ADH2, FRONTRUNNER, GF1800ER, LAZERZXS, RTV400CI, RTV900RASD, RTV900SASD, RTV900TTSD, RTV900WHSD, U173ALPHA |
| Machine Type | Excavators, Tractors |
| Fits Brands | Ausa, Genie, Greyfriars, Komatsu, Kubota, Thwaites, Volvo, Yanmar |
| Fits Models | KX36 | KX36-3 | KX41 | KX41-3 | KX018-4 | U17-3 |
