Description
Overview:

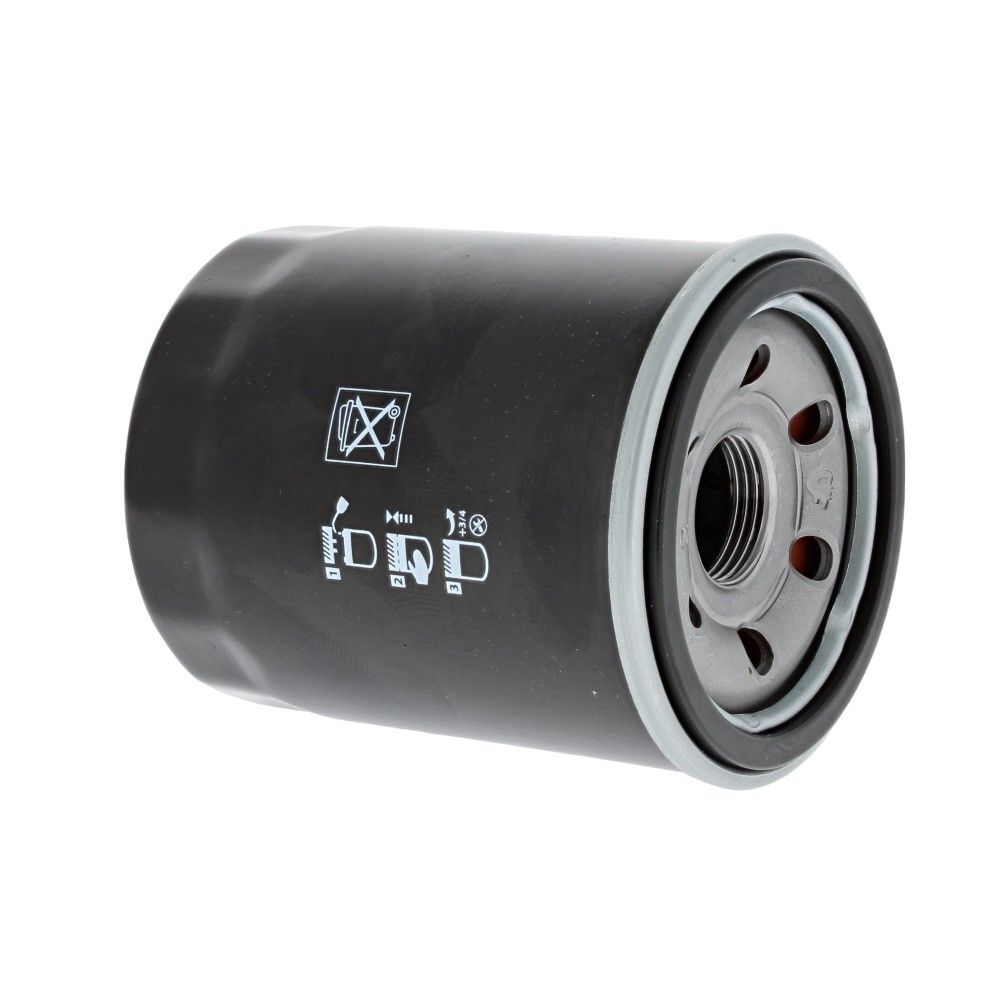

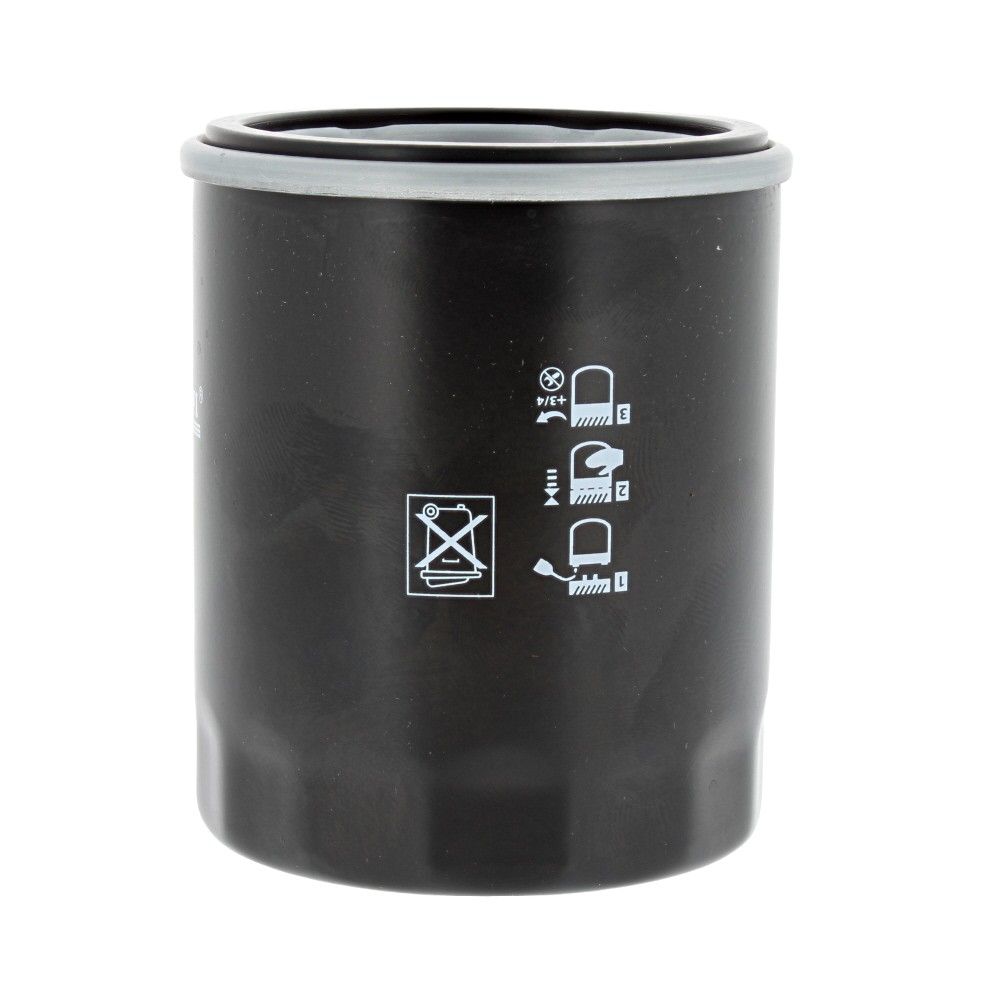

The spin-on oil filter is a non-genuine replacement part for compact construction machinery and small industrial engines from brands such as Case, Caterpillar, Hanix, Mitsubishi, and Volvo. Built around a durable metal canister with a quality rubber sealing gasket, it filters fine contaminants from engine oil to protect bearings and extend engine life. It features a compact 89 mm height and 68 mm width, with an M20 x 1.5 thread for straightforward fitment to many engines and mini excavators, including models like the Volvo EC13 and EC14. An internal by-pass valve set at 14 psi (about 0.97 bar) helps maintain oil flow if the element becomes restricted, and an anti-drainback valve supports reliable lubrication at start-up. The spin-on format makes routine servicing quick and clean.
Key Features:
- Spin-on design for quick, mess-reduced changes with basic hand tools
- Durable metal canister and robust base plate for workshop and site use
- M20 x 1.5 thread for broad compatibility across small diesel and petrol engines
- By-pass valve set at 14 psi (approx. 0.97 bar) to protect against oil starvation
- Anti-drainback valve to retain oil and improve protection during cold starts
- Compact 89 mm height x 68 mm width for tight engine bays
- Reliable filtration to support oil cleanliness and reduce engine wear
- Suitable for various Case, Caterpillar, Hanix, Mitsubishi, and Volvo machines
Typical Applications:
Engine oil filtration on mini excavators, compact loaders, site dumpers, generators, and small plant operating in dusty or stop-start conditions. Ideal for routine servicing and preventative maintenance to maintain oil cleanliness, stabilise oil pressure at start-up, and support consistent engine performance throughout the service interval.
Also known as:
Screw-on oil filter, canister oil filter, engine oil element, replacement oil cartridge, lube filter, replacement spin-on cartridge.
Fits Models:
EC13, EC14, EC14 Sirius, EC14CC, EC15, EC15B, EC15XTV, EC20, EC20B, EC25, EC25C, EC30, EC35, EX12, EX15, EX22, EX25, EX30, EX30UR, EX35, EX40UR, EB10, EB22, EB124, EB164, EB200XTV, EB224, EB254, EB284, EB304, EB306, EB350XT, EB406, EB250XTV, EL751, LS286, LS386, TB650, GXV530U
Alternate Part Numbers:
3667-354-230-0, 3667.354.230.0, 15400-RBA-F01, 17211 896 700, 17211-896-700, 15400 RBA F01, 15400.RBA.F01, 8.94368.727.0, 8.94368.728.0, 15400 PLM 02, 15400-PLM-02, 15400.PLM.02, 17211896700, 30A40-00103, 31A40-02100, 15208-31U00, JE15.14.302, 30A40-00105, 36673542300, 15400PLMA02, 30A40.00105, JEYO-14-302, 31A40.02100, JE15-14-302, 20801.02181
Product Specifications
| L&S Part No. | LO9033 |
|---|---|
| OEM No. | S533 |
| Unit of Sale | 1 |
| Size | 85mm x 67mm x 67mm x M20-1.5 Thread |
| Applications | EC13, EC14, EC15, EC15B, EC20, EC20B, EC25, EC30, EC35, GXV530U, EX 12, EX 15, EX 22, EX 25, EX 30, EX 30UR, EX 35, EX 40UR, EB 10, EB 12 4, EB 14 EB 14 4, EB 16 4, EB 22, EB 22 4, EB 25 4, EB 28 4, EB 30 4, EB 200 XTV, EB 250 XTV, EB 306, EB 350 XT, EB 406, EL 751, LS 286, LS 386, TB 650, EC 13, EC 14 Sirius, EC 14 CC, EC 15, EC 15B, EC 15XTV, EC 20, EC 20B, EC 25, EC 25C, EC 30, EC 35, EX12, EX15, EX22, EX25, EX30, EX30UR, EX35, EX40UR, EB10, EB124, EB14EB144, EB164, EB22, EB224, EB254, EB284, EB304, EB200XTV, EB250XTV, EB306, EB350XT, EB406, EL751, LS286, LS386, TB650, EC14SIRIUS, EC14CC, EC15XTV, EC25C |
| Machine Type | Excavators |
| Fits Brands | Baldwin, Caterpillar, Coopers, Crosland, Fiaam, Genie, Greyfriars, Hitachi, Honda, Hyster, Iseki, Isuzu, Kalmar Climax, Mahle, Match, Mazda, Micro, Mitsubishi, Motorcraft, Nissan, Pel Job, Sakura, Samsung, Schaeff, T.C.M, TFS, Takeuchi, U.F.I, VIC, Volvo |
| Fits Models | GXV530U (GJAEK) | EC13 | EC14 | EC15 | EC15B | EC20 | EC20B | EC25 | EC30 | EC35 |
