Description
Overview:

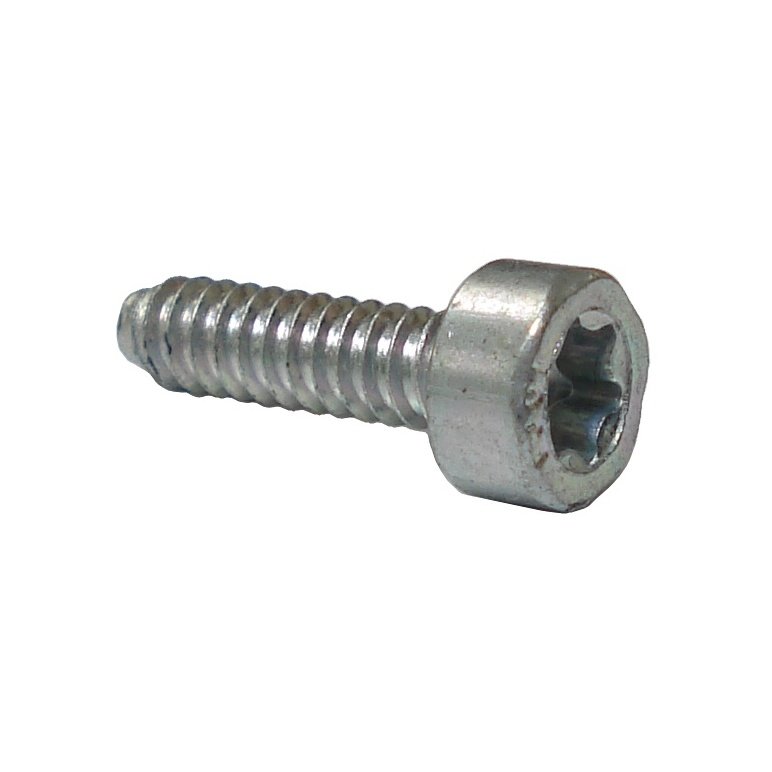

The Pan Head Self Tapping Screw D4 x 15 is a Genuine Stihl fastener designed for dependable assembly and repair of Stihl equipment, including the TS400 cut-off saw and MS230 chainsaw. Made from durable steel with a corrosion-resistant finish, it provides a secure hold in plastic and thin metal housings commonly found across Stihl machines. The pan head offers a broad bearing surface to protect covers, while the cross‐recess drive allows positive engagement with standard drivers. Its self‐tapping thread forms its own mating thread for quick, tidy installation. Size: 4 mm diameter x 15 mm length (0.16 in x 0.59 in). MPN: 9075 478 3015. Suitable for routine servicing and full rebuilds where a D4 x 15 tapping screw is specified on Stihl chainsaws, brushcutters, hedge trimmers and Kombi tools.
Key Features:
- Genuine Stihl part for assured fit and compatibility
- D4 x 15 size: 4 mm x 15 mm (0.16 in x 0.59 in)
- Pan head spreads load to reduce damage to plastic covers
- Cross‐recess drive for easy, stable driver engagement
- Self‐tapping thread for fast fastening without pre‐tapping in suitable materials
- Durable steel with corrosion‐resistant finish for outdoor use
- Precise head and thread geometry helps prevent stripping and cam‐out
- Suitable for repeated removal and refit during maintenance
- Widely used across many Stihl models for convenient spares stocking
Typical Applications:
Used to secure shrouds, air filter covers, starter housings, guards, handle frames and other light assemblies on Stihl machines. Ideal for plastics and thin sheet components where a self‐tapping D4 x 15 screw is specified, supporting both routine maintenance and more involved repairs.
Also known as:
Pan head self‐tapper, tapping screw, thread‐forming screw, cross‐recess pan screw, fastening screw, D4x15 screw.
Fits Models:
019T, 020, 020T, 021, 023, 025, 029, 030, 031, 039, FS490C, FS510C, FS560C, FS94, FS94C, FS94R, FS94RC, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HLA 56, HS45, HSA50, KM94R, KM94RC, MS171, MS171C, MS180, MS180C, MS181, MS181C, MS190T, MS191T, MS192C, MS192T, MS192TC, MS193C, MS193T, MS193TC, MS194T, MS194TC, MS200, MS200T, MS210, MS210C, MS211, MS211C, MS230, MS230C, MS250, MS250C, MS261, MS261C, MS290, MS310, MS362, MS362C, MS390, MS400C, MS462, MS462C, TS400
Alternate Part Numbers:
9075-478-3015, 90754783015
Product Specifications
| L&S Part No. | 9075 478 3015 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90754783015 |
| Unit of Sale | 1 |
| Size | IS-D4 x 15mm |
| Applications | 019T, 020, 020T, 021, 023, 025, 029, 030, 031, 039, FS490C, FS510C, FS560C, FS94, FS94 C, FS94C, FS94R, FS94RC, HL91K, HL91KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HLA 56, HLA56, HS45, HSA50, KM94R, KM94RC, MS171, MS171C, MS180, MS180C, MS181, MS181C, MS190T, MS191T, MS192C, MS192T, MS192TC, MS193C, MS193T, MS193TC, MS194T, MS194T / MS194TC, MS194TC, MS200, MS200T, MS210, MS210C, MS211, MS211C, MS230, MS230C, MS250, MS250C, MS261, MS261C, MS290, MS310, MS362, MS362C, MS390, MS400C, MS462, MS462C, TS400 |
| Machine Type | Disc Cutters, Chainsaws, Hedgetrimmers, Brushcutters, Pole Pruners |
| Fits Brands | Stihl |
| Fits Models | TS400 | MS180, MS180C | MS230, MS230C | MS250, MS250C | MS200, MS200T | MS290, MS310, MS390 | 030, 031 | 029, 039 | MS192C, MS192T, MS192TC | MS171, MS171C | MS181, MS181C | MS211, MS211C | MS362, MS362C | MS261, MS261C | HS45 | FS94, FS94 C, FS94R, FS94RC | FS490C, FS510C, FS560C | 019T | 020, 020T | 021, 023, 025 | MS462, MS462C | MS190T | MS191T | MS193C, MS193T, MS193TC | KM94R, KM94RC | HL91K, HL91KC | HL92C, HL92KC | HL94, HL94C, HL94K, HL94KC | HLA 56 | MS194T / MS194TC | MS400C | HSA50 | MSA190 T | FS491 C-EM | FS561 C-EM |
