Description
Overview:

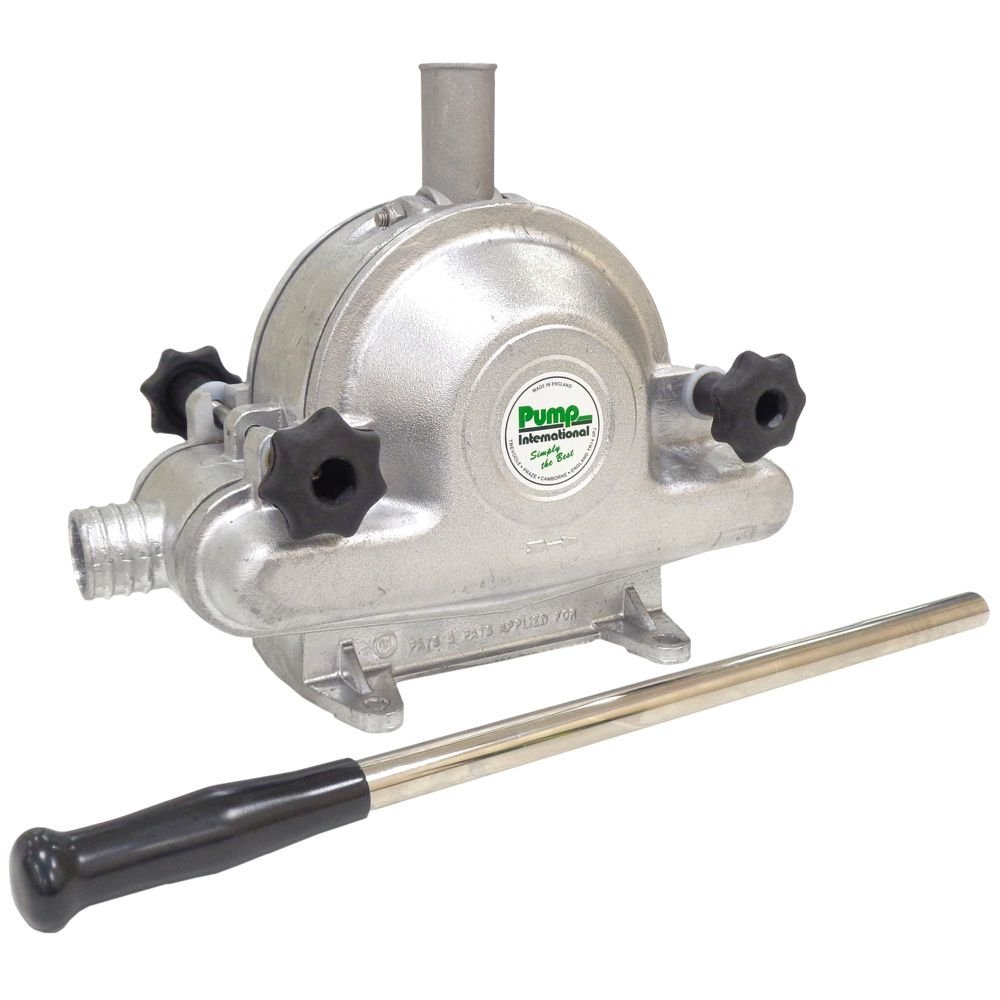

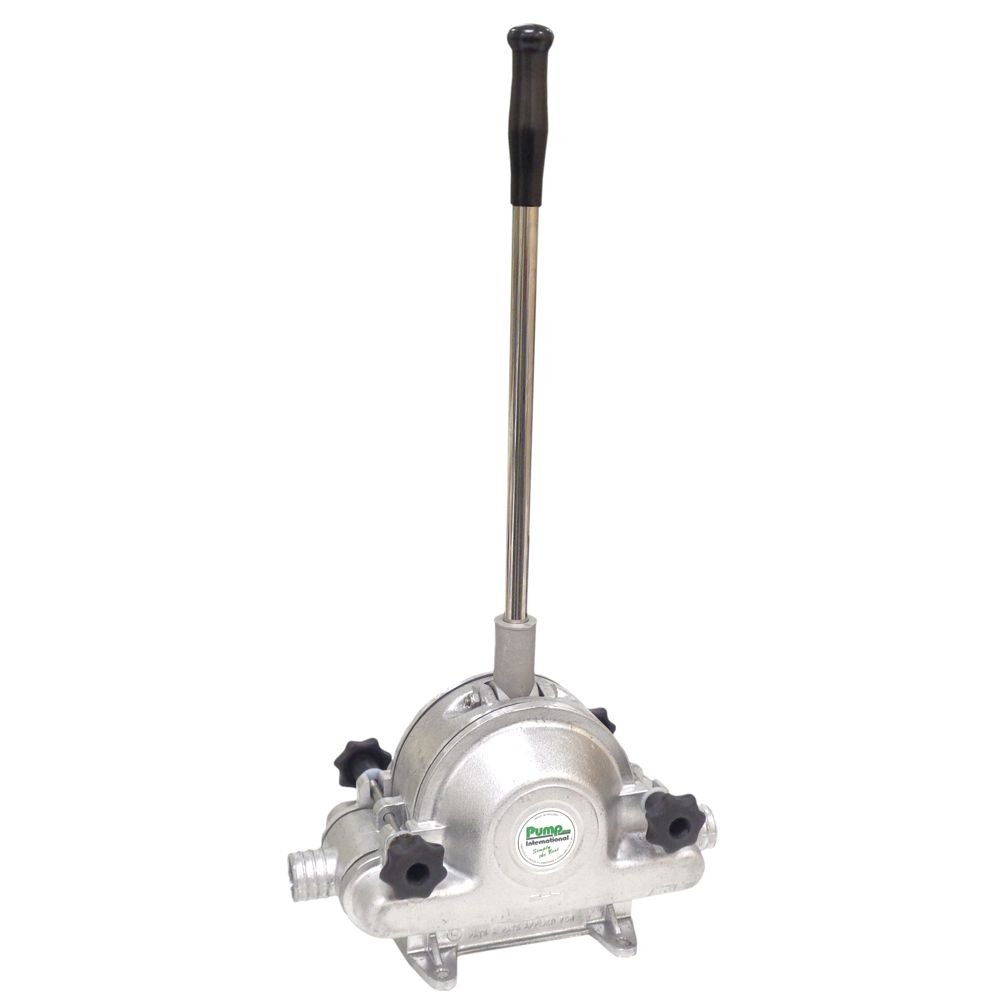

The Patay DD120B Hand Pump with Handwheels (A2002) is a manual diaphragm transfer pump built for dependable fluid movement on site and in the workshop. Its aluminium body with bright zinc plated (BZP) fittings resists corrosion, while a stainless steel handle provides a strong, comfortable grip. Delivering up to 135 litres per minute, the DD120B is suitable for fuels, oils, and water, and will pass soft solids up to 22 mm. A 1 1/2 inch (38 mm) outlet and self-priming design make it straightforward to set up on tanks, bowsers, drums, or IBCs. With up to 6 m lift and head and a light 3 kg form, it is well suited to construction plant, generators, pumps, and garden machinery where portable, no-power fluid transfer is required.
Key Features:
- High output: up to 135 litres per minute for fast transfer
- Self-priming diaphragm design for quick start-up without pre-filling
- 1 1/2 inch (38 mm) outlet for common hose connections
- Up to 6 m lift/head for versatile on-site positioning
- Passes soft solids up to 22 mm to handle dirty water and light slurries
- Aluminium body with BZP fittings for strength and corrosion resistance
- Stainless steel handle for durability and smooth pumping action
- Handwheel-secured chamber covers for tool-free inspection and diaphragm changes
- Manual operation-no electricity or air supply required
- Lightweight at approximately 3 kg for easy carrying and mounting
- Suitable for fuels, oils, water, and general site liquids when used with compatible hoses and seals
- Simple to install and maintain, with minimal service parts
Typical Applications:
Decanting diesel, heating oil, lubricants, and water from tanks, bowsers, and drums; dewatering trenches and service pits; draining sumps; transferring fluids to/from IBCs; emergency pumping on plant, generators, and agricultural or garden equipment; use on service vans where power is limited; general site fluid management and spill transfer.
Also known as:
Manual diaphragm transfer pump, hand-operated diaphragm pump, DD120B manual pump with handwheels, Patay A2002 hand pump, aluminium hand pump with BZP fittings, portable site transfer pump.
Alternate Part Numbers:
A2002
Product Specifications
| L&S Part No. | 300 658 |
|---|---|
| Manufacturer | Patay Pumps |
| OEM No. | A2002 |
| Unit of Sale | 1 |
| Size | Overall Length: 356mm Overall Width: 265mm Overall Depth: 183mm |
| Machine Type | Pumps |
