Overview:

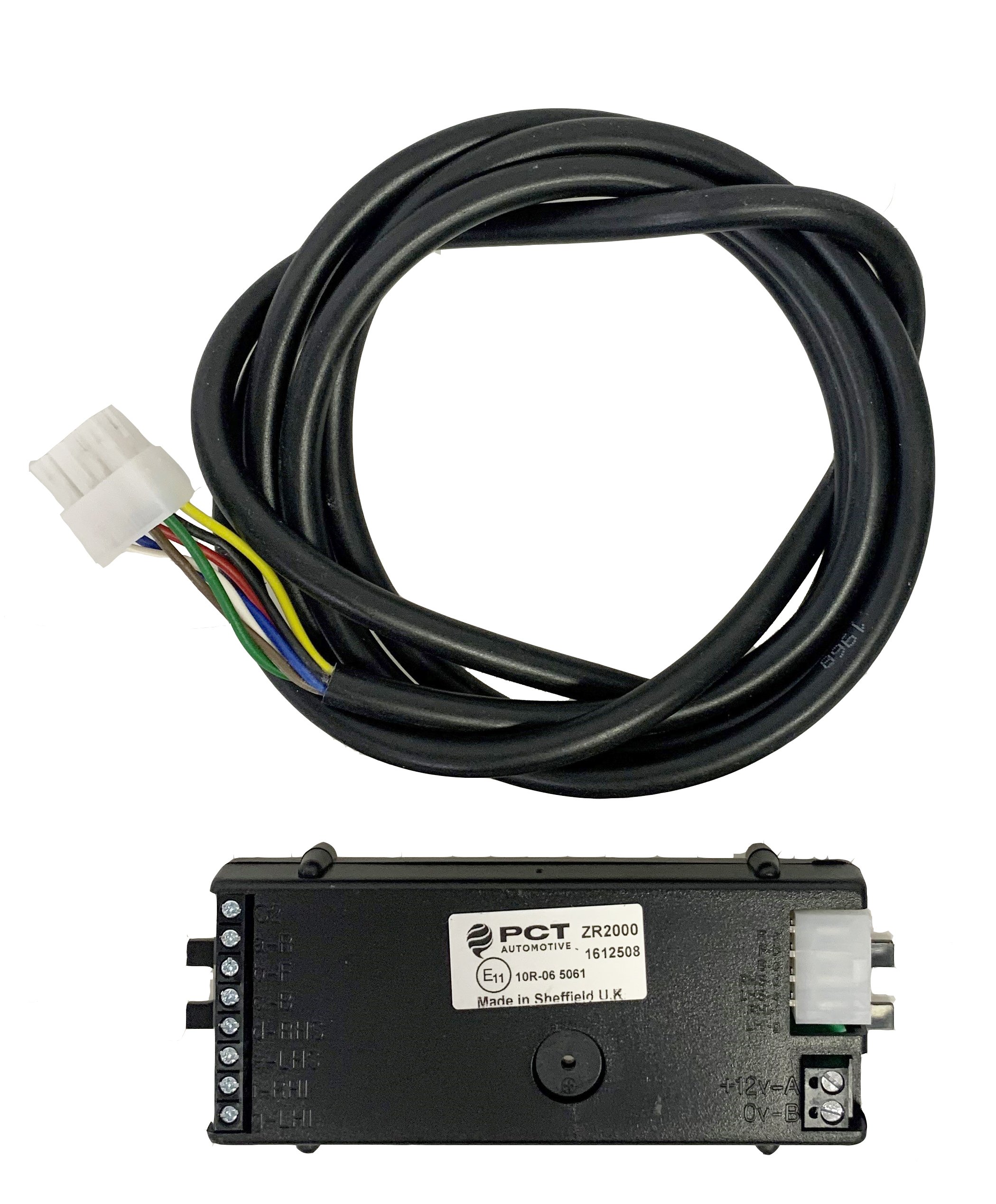

The Towing Interface Module, 7-Channel With C2 Tell-Tale, LED Compatible (MPN 763 889) is a slimline electronic module designed to link a vehicle's road-light circuits to the road lights on a trailer, caravan or plant trailer. Housed in a compact plastic enclosure with mounting tabs, it provides seven controlled outputs for trailer lighting and includes a C2 and indicator tell‐tale output for dashboard signalling. The unit features upgraded live and earth ports to accommodate thicker cables, a 2 m (approx. 6 ft 7 in) control input cable, and a disconnect plug that allows the interface to be isolated during vehicle diagnostic checks. Processor-based operation ensures silent running, and the electronics are designed to work with ultra‐low current LED lamps as well as conventional bulbs. Each road‐light channel is protected by a thermal fuse for added resilience. The module is EC Type Approved to 2006/96/EC and provides a 7‐channel output compliant with BS AU 149A:1980 and ISO 11446, making it suitable for professional towbar wiring on cars, vans, 4x4s, light commercials and transport equipment.
Key Features:
- Seven-channel towing light interface with indicator tell‐tale and C2 output
- Processor-controlled electronics for silent operation
- Compatible with ultra‐low current LED trailer lamps and conventional bulbs
- Thermal fuse protection on all road‐light channels
- 2 m (6 ft 7 in) control input cable with disconnect plug for diagnostics
- Upgraded live and earth terminals to accept thicker conductors
- Supplied with blade terminal (ZT2343)
- Ultra‐slim plastic enclosure with integrated mounting tabs
- EC Type Approved to 2006/96/EC
- Output compliant with BS AU 149A:1980 and ISO 11446
Typical Applications:
Used when wiring towbar electrics to interface a vehicle's lighting circuits with the trailer or caravan road lights, providing protected and standards‐compliant outputs along with a C2 dashboard tell‐tale. Suitable for towing setups using 7‐ or 13‐pin electrical systems that follow BS AU 149A:1980 and ISO 11446. Commonly installed on cars, vans, 4x4s, commercial vehicles and plant transporters where LED trailer lamps require reliable, silent triggering.
Also known as:
Trailer Light Interface Module
7‐Way Towing Relay
Universal Bypass Relay
PCT Logicon ZR2000 Interface
Maypole part number MP2875B
Product Specifications
| L&S Part No. | 763 889 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
