Description
Overview:

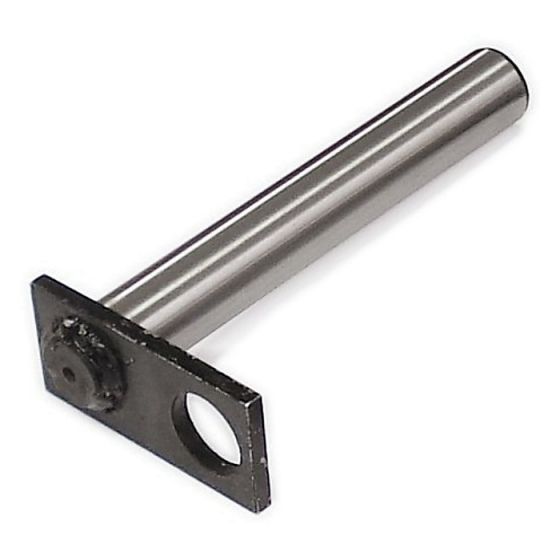

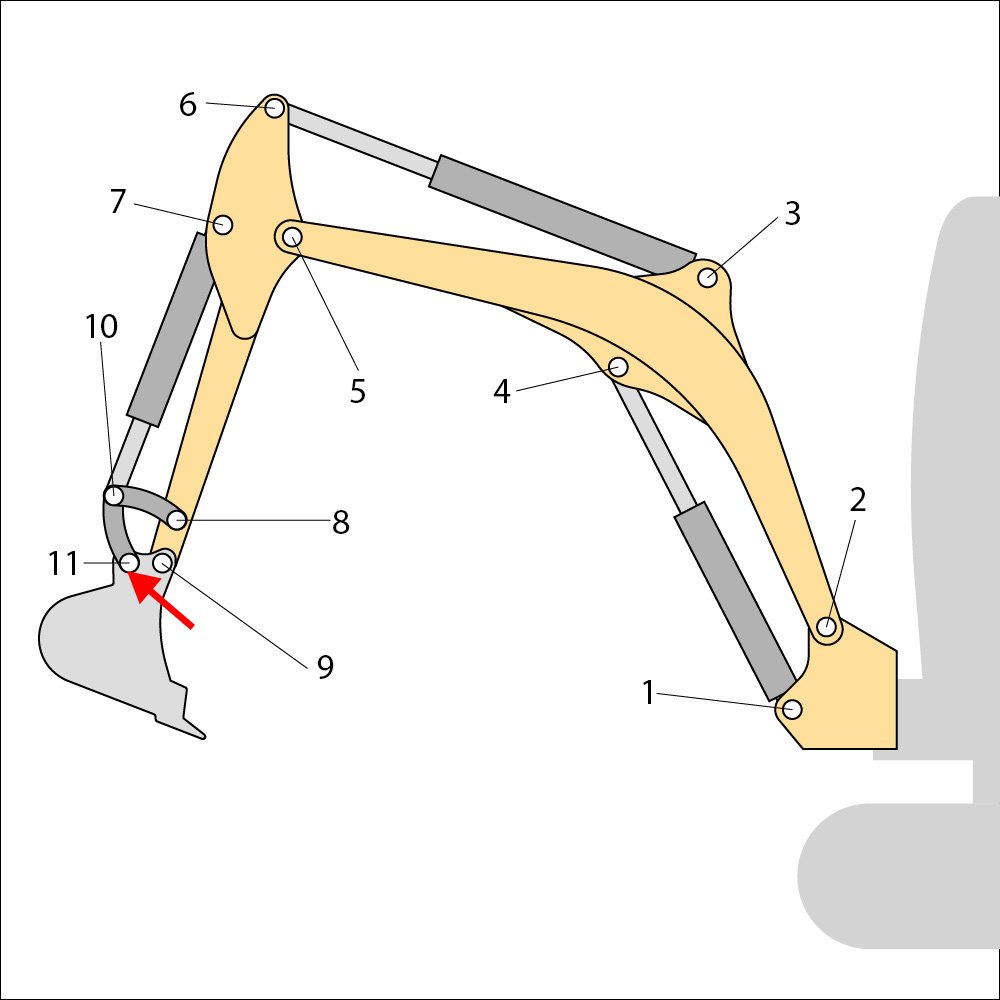

This Pin (Position 11) is a non-genuine replacement for JCB 803 PLUS mini excavators, made for dependable service in pivot points within the working equipment linkage. Manufactured from high-strength machined steel, it is designed to handle the shock loads and abrasive conditions found on site. The pin measures 35 mm in diameter and 237 mm in overall length, and is supplied ungreased for straightforward installation. It replaces OEM part number 232/01100 and offers a precise fit to help restore smooth movement and reduce wear on mating bushes. Suitable for JCB 803 PLUS and 803PLUS models, it supports routine maintenance by replacing worn or bent pins, helping to maintain tight tolerances, reduce play in joints, and keep the excavator operating reliably.
Key Features:
- Non Genuine Part: cost-effective replacement compatible with OEM 232/01100
- Precision machined steel for strength and long service life
- 35 mm diameter and 237 mm length for a direct, accurate fit
- Ungreased design; fit as supplied (greased alternative referenced as part no. 200 259)
- Helps restore correct alignment and reduces play in linkage joints
- Resists impact and side loads common in excavation work
- Clean, smooth surface finish to aid insertion and removal during maintenance
- Compatible with JCB 803 PLUS platform for hassle-free replacement
- Supports preventative maintenance to minimise downtime
- Suitable for use in demanding construction and landscaping environments
Typical Applications:
Replacement of worn, scored, or bent pins in the working equipment linkage on JCB 803 PLUS mini excavators. Commonly used at pivot points on the boom, dipper, or bucket linkage where accurate fit is essential to maintain smooth articulation, protect bushes, and keep the machine tight for precise control during digging, grading, and loading tasks.
Also known as:
Pivot pin, linkage pin, boom pin, dipper pin, bucket pin, hinge pin, excavator pivot, JCB linkage pin, replacement pivot bar for mini excavators, steel pivot dowel.
Fits Models:
803 PLUS, 803PLUS
Alternate Part Numbers:
232/01100, 23201100
Product Specifications
| L&S Part No. | 202 1859 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | Pin Diam - 35mm x Pin Length - 237mm |
| Applications | 803 PLUS, 803PLUS |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 803 PLUS |
