Description
Overview:

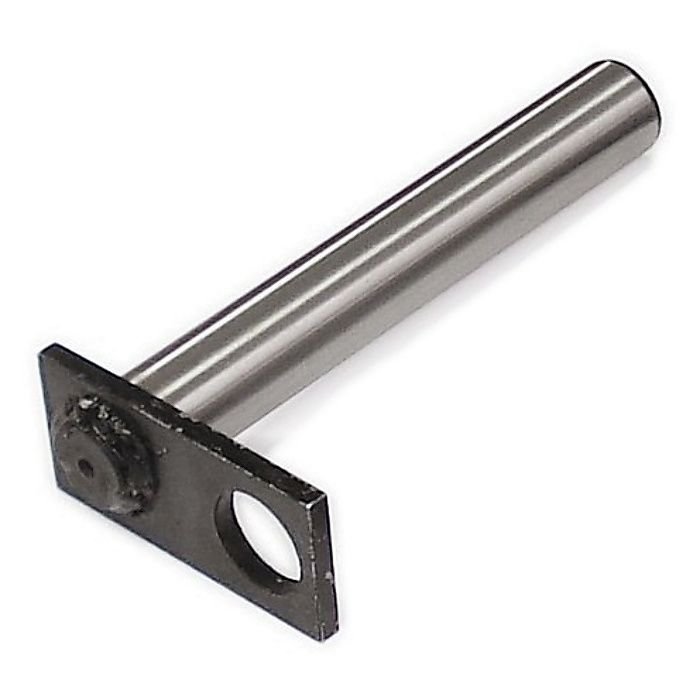

The Pin (Position 11) for JCB 8030ZTS mini excavators is a non-genuine replacement for OEM reference 232/01100. It is a precision-machined steel pin designed to restore smooth, tight movement at a key pivot point in the excavator's working arm. Built to handle the shock loads and abrasion common in digging and loading tasks, it helps keep the linkage aligned and operating correctly, reducing wear on matching bushes and components. Suitable for JCB compact excavators, including the 8030ZTS and 8030 ZTS, this pin is intended for straightforward fitment using the machine's existing hardware. It offers a practical, cost-effective option for routine maintenance or repair when the original pin is worn, seized, or damaged, supporting reliable day-to-day site work.
Key Features:
- Non-genuine replacement matching the fit and function of OEM 232/01100
- Robust steel construction for strength and long service life in demanding conditions
- Precision-machined to support accurate alignment and smooth articulation at Position 11
- Helps reduce play in the joint, protecting mating bushes and linkages from accelerated wear
- Clean surface finish to aid assembly and consistent movement
- Compatible with existing retainers and seals on the machine (where fitted)
- Practical choice for planned maintenance or quick turnaround repairs to minimise downtime
- Suitable for heavy on-site use in construction, utilities, landscaping, and hire fleets
Typical Applications:

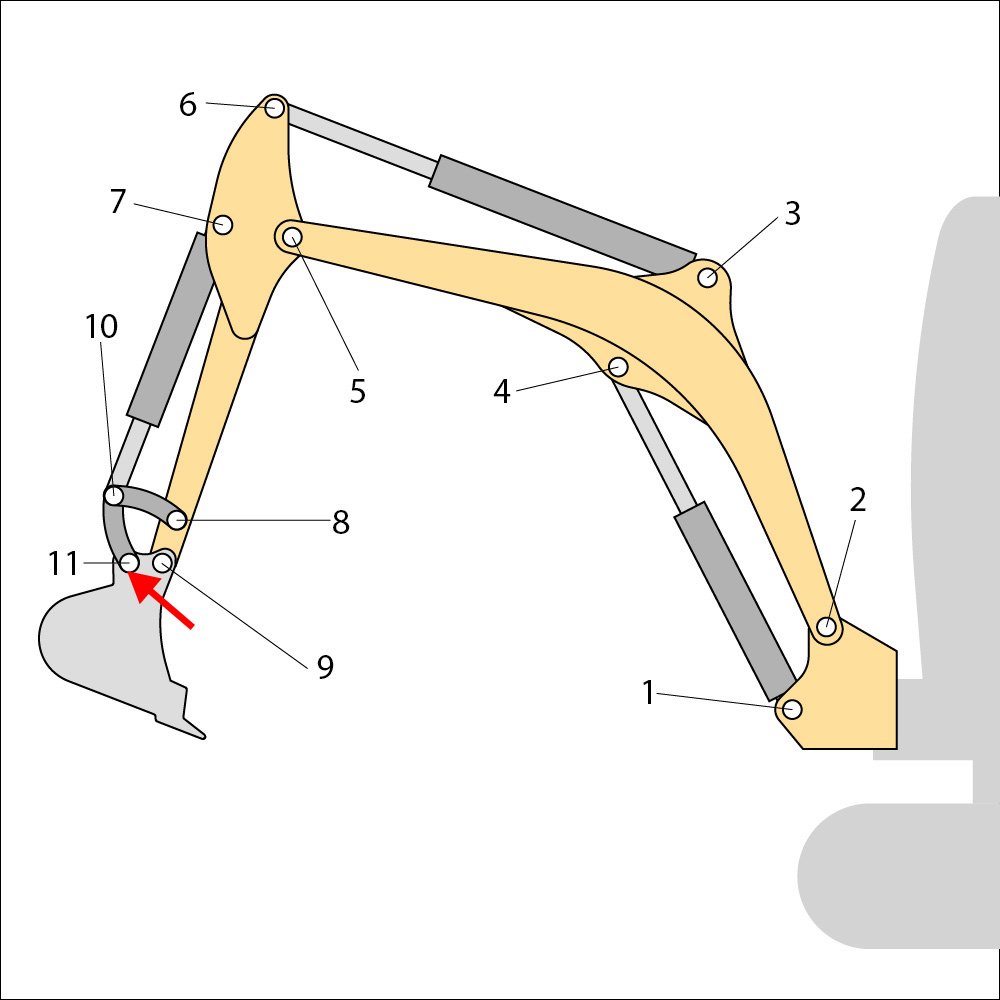

Used on the excavator working arm at Position 11 to secure and pivot the linkage. Commonly fitted during bucket linkage, dipper, or boom end rebuilds, pin-and-bush replacements, and when correcting excessive joint play. Suitable for daily digging, grading, trenching, and loading tasks on compact sites and access-restricted areas.
Also known as:
Pivot pin, bucket linkage pin, boom joint pin, dipper end pin, mini digger pin, JCB linkage pivot, replacement arm pin, chassis joint pin, wear pin, construction machinery pin.
Fits Models:
8030 ZTS, 8030ZTS
Alternate Part Numbers:
232 01100, 232/01100, 23201100
Product Specifications
| L&S Part No. | 202 1847 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 8030 ZTS, 8030ZTS |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 8030 ZTS |
