Description
Overview:

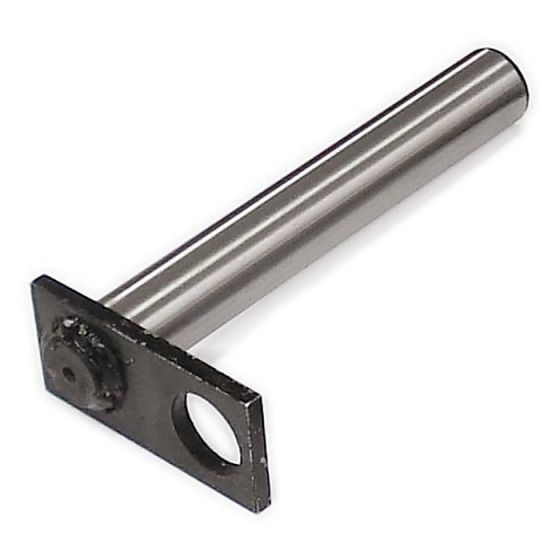

The Pin (Position 11) for JCB 804 PLUS mini excavators is a high-strength, non-genuine replacement designed to restore smooth, accurate movement at the specified pivot point. Engineered from durable steel and precision machined, it replaces worn or damaged pins to reduce play and maintain correct alignment in working linkages. Sized at 35 mm diameter and 237 mm length, it matches the OEM reference 232/01100 for a reliable fit on JCB 804 PLUS/804PLUS models. This dry (non-greased) pin is suitable for site and workshop use where dependable, long-lasting performance is required. It offers a practical, cost-effective alternative to genuine parts for tradespeople, plant operators, and DIY users who need to keep their machine working efficiently with minimal downtime. Non Genuine Part.
Key Features:
- Non-greased design for applications specified as dry running (greased version: part no. 200 259)
- Correct dimensions: 35 mm diameter and 237 mm length for precise fit at Position 11
- Compatible replacement for OEM reference 232/01100 to aid straightforward selection
- Durable steel construction to withstand impact, vibration, and abrasive conditions
- Helps restore tight tolerances, reducing play and improving machine responsiveness
- Smooth operation supports reduced wear on associated bushings and linkage components
- Straightforward installation using standard workshop tools and practices
- Cost-effective non-genuine alternative for routine maintenance and repairs
- Suitable for professional plant fleets and individual owners alike
- Supports reduced downtime by replacing a common wear item promptly
Typical Applications:

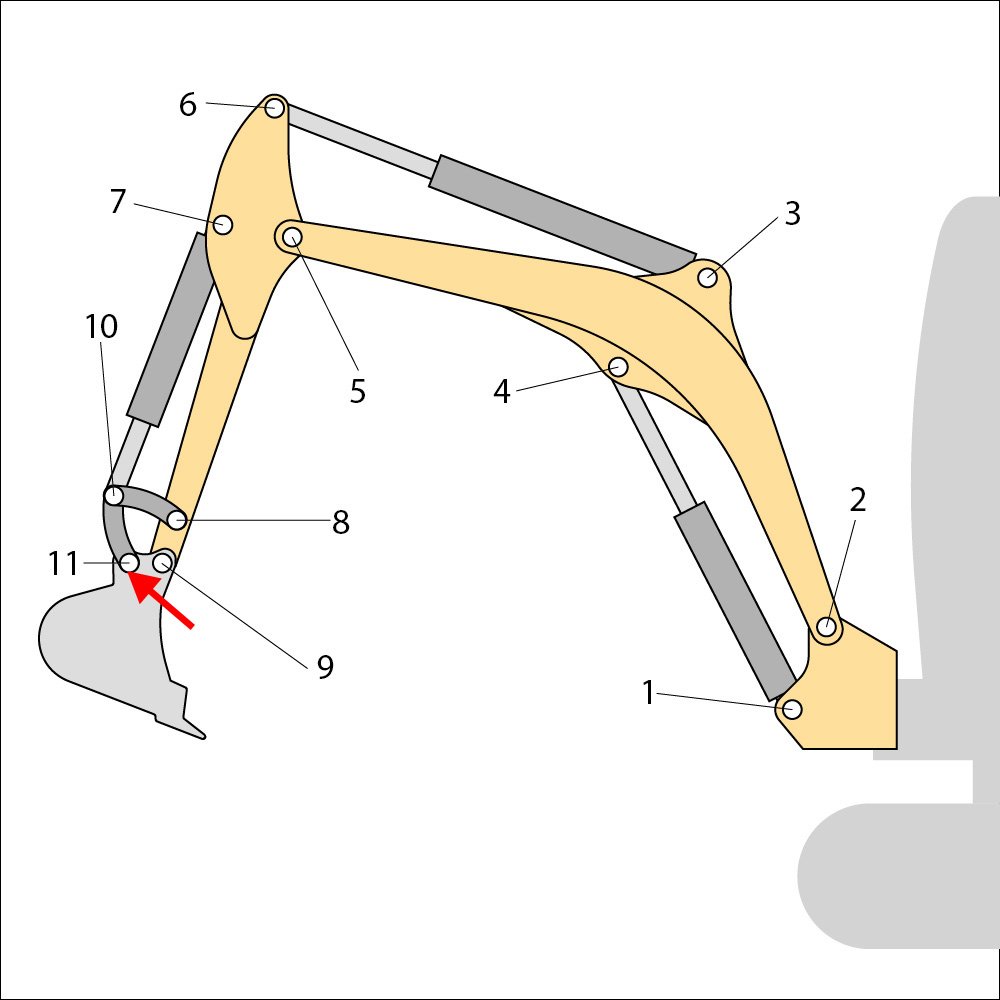

Used at the joint designated as Position 11 on the JCB 804 PLUS parts diagram to renew a worn pivot. Typical tasks include maintaining accurate movement in the excavator's working linkage so digging, grading, and lifting remain smooth and predictable. Ideal for scheduled overhauls or reactive repairs where the original pin has become undersized, bent, or corroded.
Also known as:
Pivot pin, linkage pin, excavator linkage pin, position 11 pivot, replacement pivot pin, JCB-compatible pin, OEM-equivalent pin for 232/01100.
Fits Models:
804 PLUS, 804PLUS
Alternate Part Numbers:
232/01100, 23201100
Product Specifications
| L&S Part No. | 202 1819 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | Pin Diam - 35mm x Pin Length - 237mm |
| Applications | 804 PLUS, 804PLUS |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 804 PLUS |
