Description
Overview:

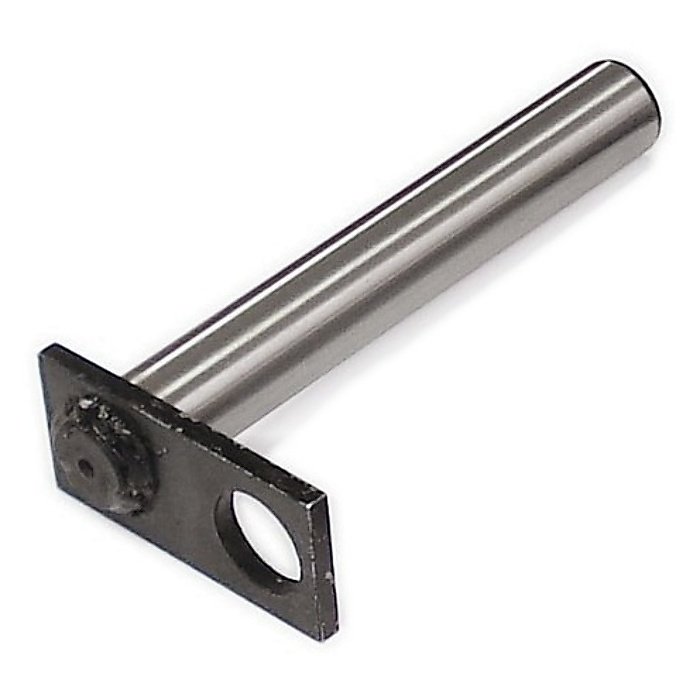

Non-genuine replacement Pin (Position 9) for JCB 803 PLUS mini excavators, engineered to replace OEM reference 232/01100. Made from high-strength, wear-resistant steel with a smooth, accurately machined shank, it restores tight, consistent movement in the boom/arm linkage. Key dimensions are 35 mm pin diameter and 237 mm overall length for a direct, like-for-like fit in the specified joint. This is an ungreased design intended for use with greased bushes or external lubrication points where fitted. Suitable for JCB 803 PLUS and 803PLUS machines, it helps maintain correct alignment, reduces play, and protects mating bushes and bores from accelerated wear. A practical service part for routine overhaul or replacing bent, pitted, or worn pins. This is a Non Genuine Part.
Key Features:
- Direct replacement for JCB OEM 232/01100 (Position 9) on 803 PLUS series
- Precision dimensions: 35 mm diameter and 237 mm length for correct fit
- Ungreased design; pair with greased bushes or existing lube points as required (greased alternative often referenced as part no. 200 259)
- High-strength steel construction for durability under heavy site use
- Clean machining for smooth articulation and consistent joint movement
- Helps reduce linkage play, vibration, and uneven bush wear
- Ready to install with standard assembly practices; no modifications to the joint
- Suitable for routine maintenance or reactive repair to restore performance
Typical Applications:
Used during pin-and-bush replacement in the boom, dipper, or bucket linkage on JCB 803 PLUS mini excavators. Ideal for workshop servicing, planned maintenance, or on-site repairs to address wear, play, or damage. Helps restore accurate digging, grading, and lifting control by keeping linkage joints aligned and secure.
Also known as:
Pivot pin, boom linkage pin, dipper pin, bucket linkage pin, hinge pin, articulation pin, JCB mini excavator pin, machine linkage pin, replacement linkage pin.
Fits Models:
803 PLUS, 803PLUS
Alternate Part Numbers:
232/01100, 23201100
Product Specifications
| L&S Part No. | 202 1858 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | Pin Diam - 35mm x Pin Length - 237mm |
| Applications | 803 PLUS, 803PLUS |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 803 PLUS |
