Description
Overview:

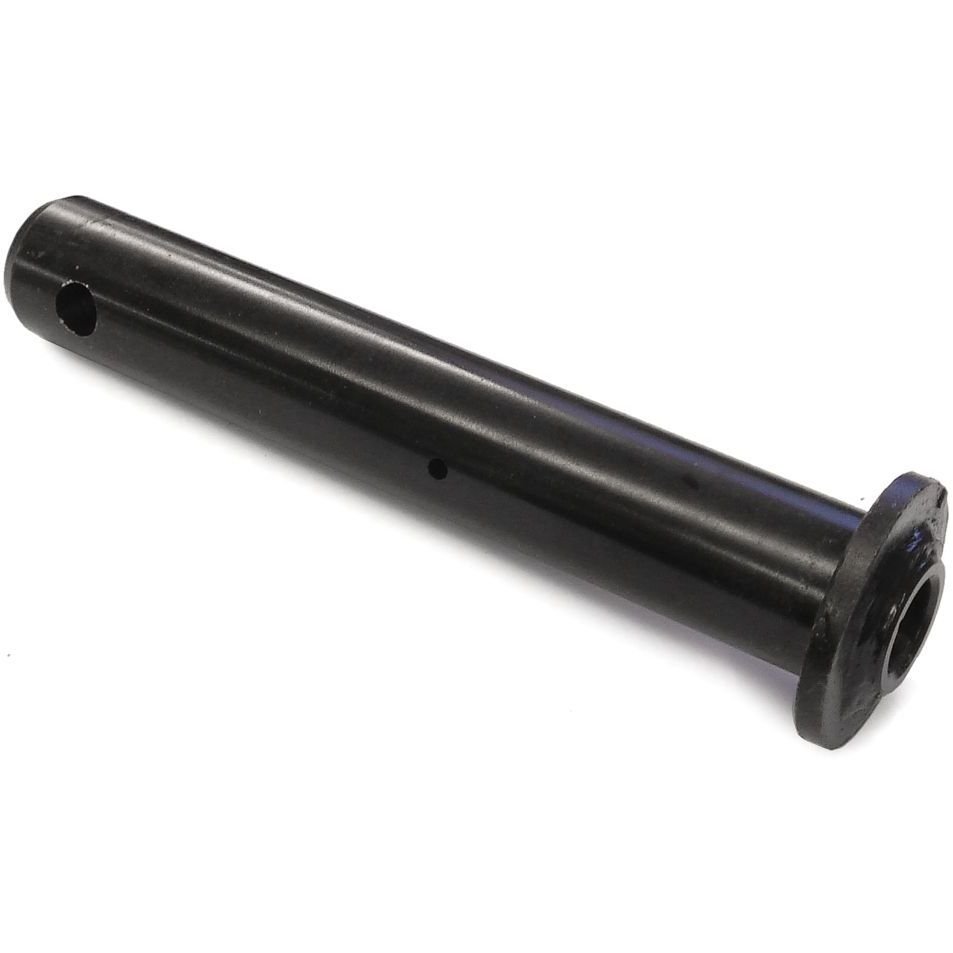

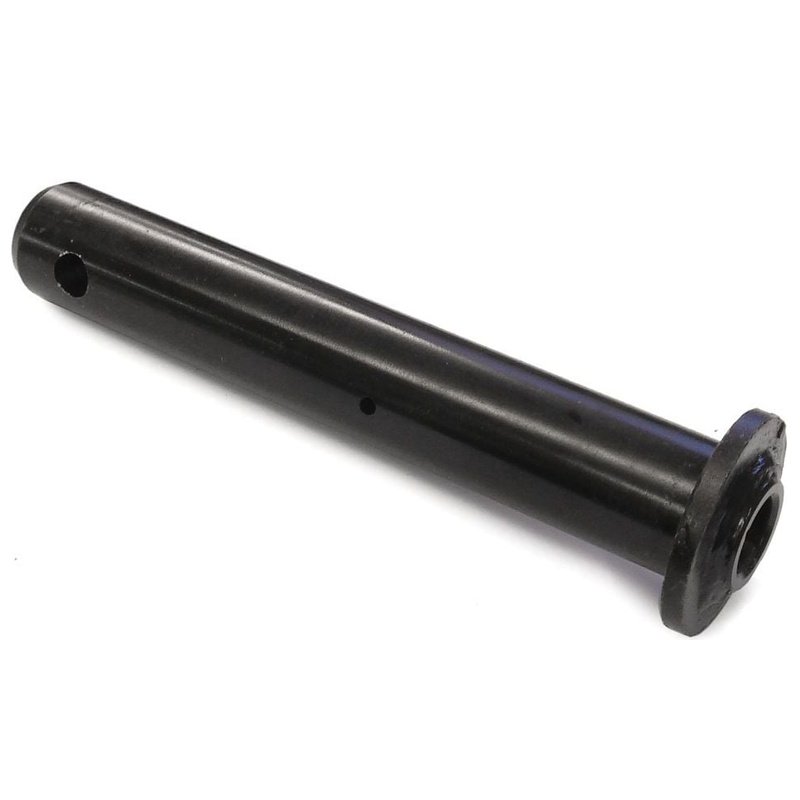

This Position 10 Link Pin is a heavy‐duty replacement pin for Kubota mini diggers and excavators, used to secure key linkage joints for smooth, tight operation. Built from high‐strength hardened steel, it is designed to handle continuous load cycles and shock loads typical of digging and lifting work. The pin measures 180 mm (7.09 inches) in length with a 30 mm (1.18 inches) diameter, making it a precise fit where specified by Kubota. It is commonly referenced as "Position 10" in linkage assemblies and suits popular compact models such as the KX41-3 and U15-3. By restoring correct joint fit and movement, this pin helps reduce play, protect bushes and bores, and maintain accurate bucket control on site or at home.
Key Features:
- Robust high-strength steel construction for long service life in harsh conditions
- Accurate sizing: 180 mm (7.09 inches) length, 30 mm (1.18 inches) diameter
- Helps maintain tight linkage tolerances to reduce wear on bushes and bores
- Direct replacement fit for quicker installation with standard workshop tools
- Supports smooth, consistent bucket and linkage movement under load
- Suitable for compact excavators where a Position 10 link pin is specified
- Engineered for durability in frequent start-stop and heavy digging cycles
- Useful for preventative maintenance and timely replacement to minimise downtime
- MPN: 202 510
Typical Applications:
Used at linkage pivot points on Kubota mini diggers and excavators to connect components in the boom, dipper, or bucket assemblies. Ideal when refurbishing worn joints, replacing damaged pins after impact, or tightening up play to improve breakout force, grading accuracy, and machine feel. Suitable for workshop maintenance, fleet upkeep, and DIY repairs.
Also known as:
Bucket linkage pin, boom link pin, pivot pin, hinge pin, linkage pivot pin, excavator joint pin, bucket joint pin, machine linkage pin.
Fits Models:
KX015-4, KX0154, KX018-4, KX0184, KX41, KX41-3, KX413, U15-3, U153, U17-3, U173, U20
