Description
Overview:

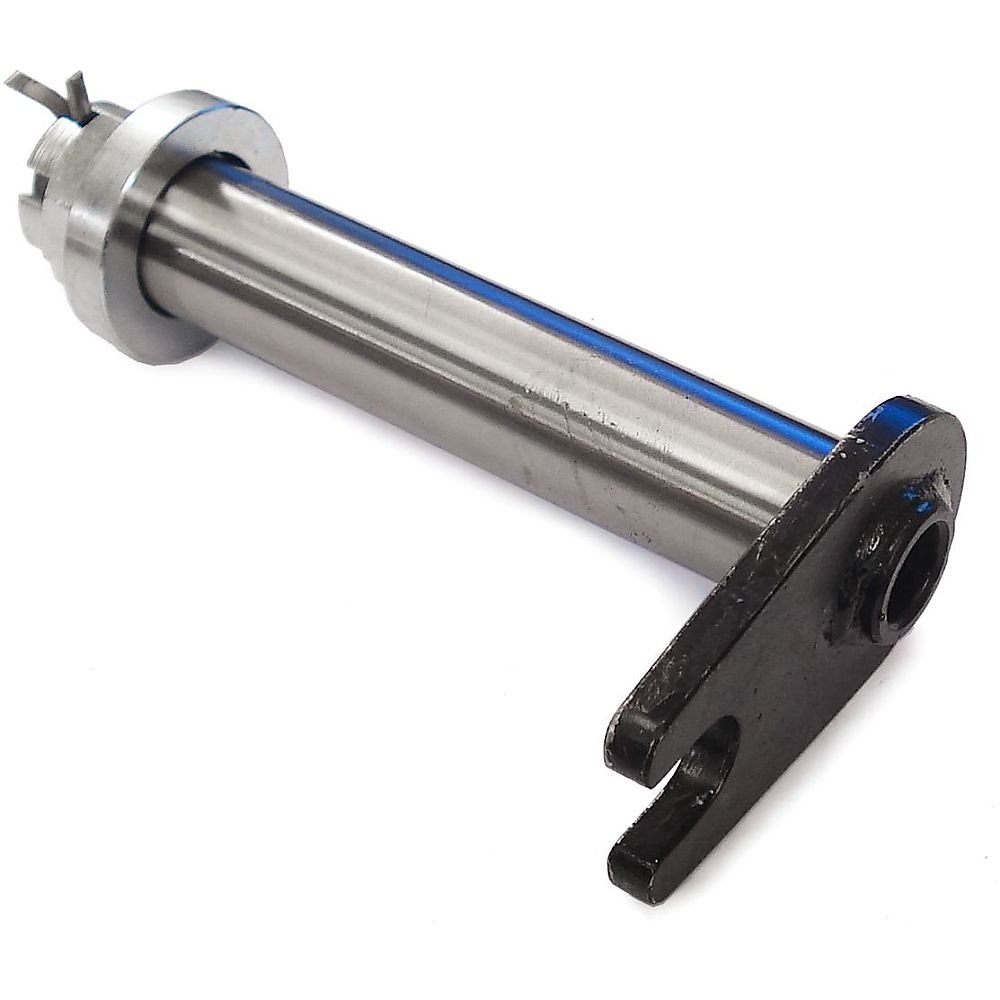

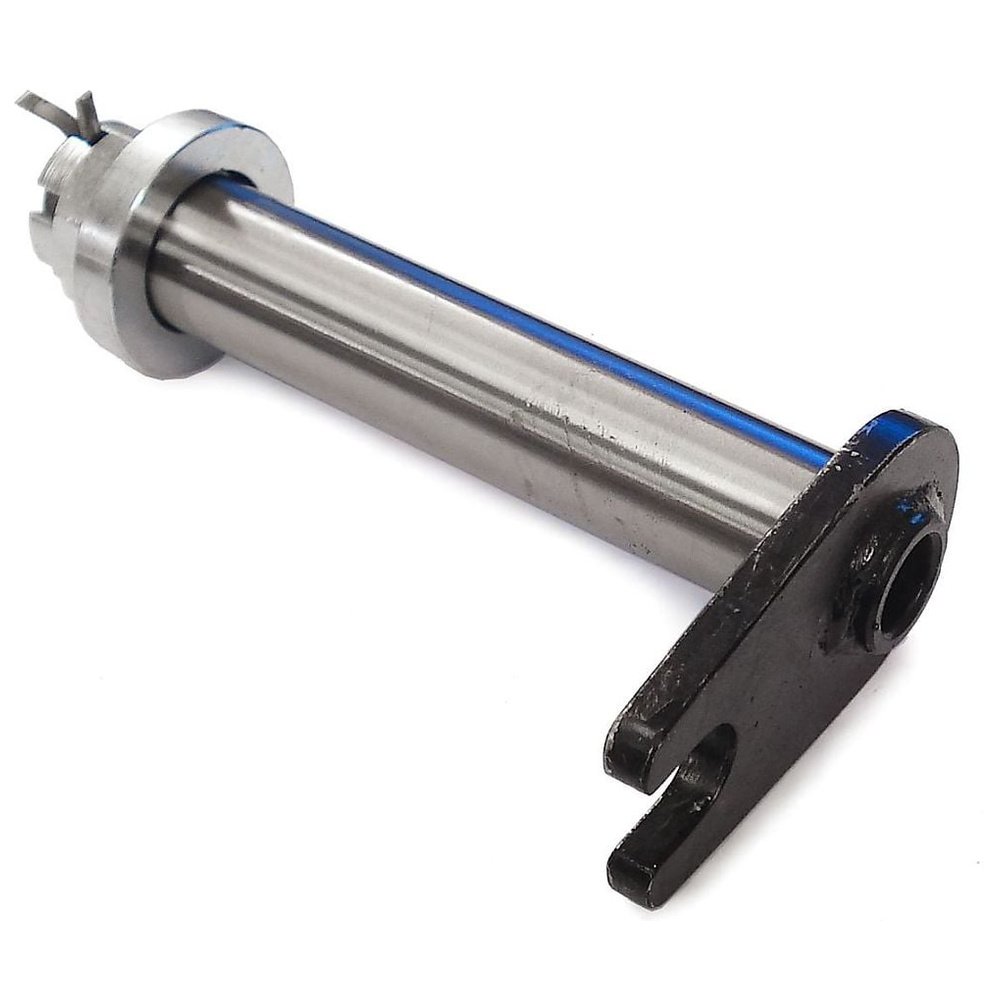

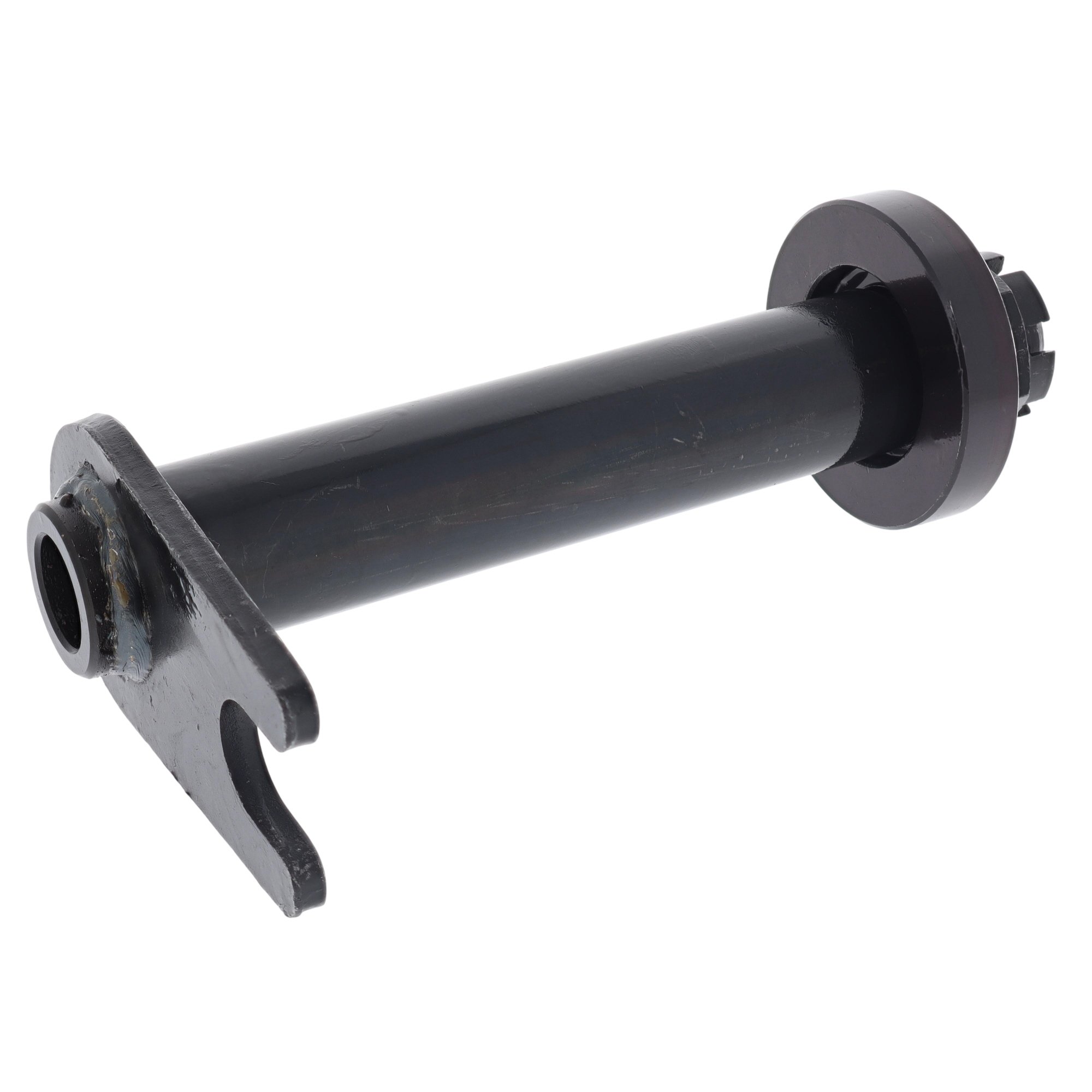

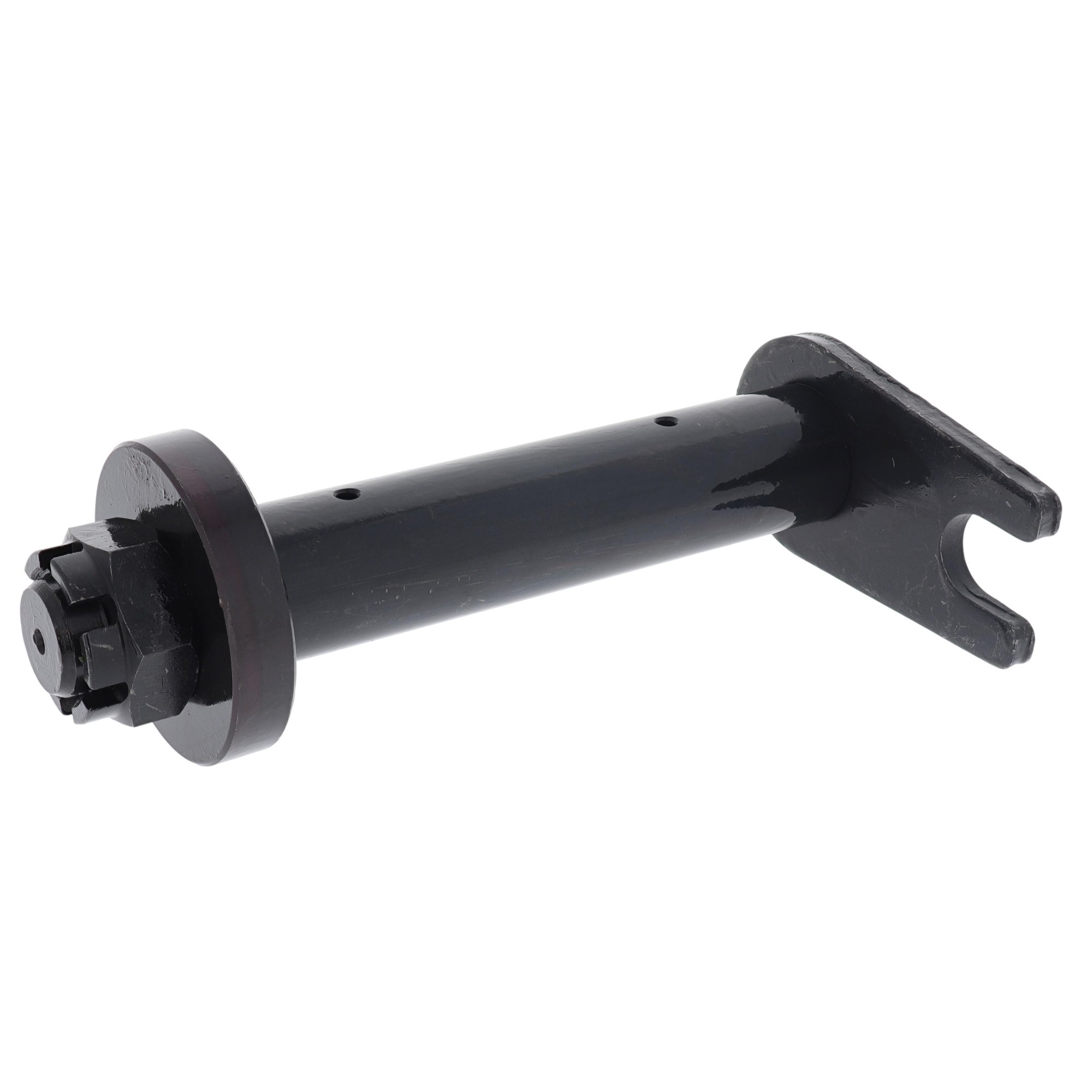

This Position 10 Link Pin is a replacement pivot pin for the linkage on Takeuchi TB014 and TB016 mini diggers/excavators. Made from high-strength steel and precision machined, it restores a tight, accurate joint between link components, helping to reduce play and wear across the bucket linkage. Sized at 30 mm (1.18 inches) diameter and 170 mm (6.7 inches) length, it is built to handle the shock loads and abrasion seen in daily site work. Referenced by Manufacturer Part Number (MPN) 202 524, this pin is intended to match the specification shown as "position 10" in parts diagrams, supporting reliable alignment and smooth operation in demanding applications.
Key Features:
- Correct fit for Takeuchi TB014 and TB016 linkage position 10
- Dimensions: 30 mm (1.18 inches) diameter; 170 mm (6.7 inches) length
- Precision-machined steel for smooth rotation and reduced play
- Robust construction to withstand heavy loads and frequent articulation
- Helps extend service life of mating bushes and linkage components
- Consistent sizing for easier installation and predictable fit-up
- MPN reference: 202 524 for accurate parts identification
- Suitable for routine maintenance, repairs, and planned overhauls
Typical Applications:
Used in the bucket/dipper linkage on compact excavators during general digging, grading, trenching, and utility work. Ideal for restoring worn joints on machines working in construction, landscaping, grounds maintenance, and plant hire. Replacing a tired or bent pin helps reduce downtime, improves control at the bucket, and supports even wear across bushes and mating links.
Also known as:
Pivot pin, articulation pin, bucket linkage pin, joint pin, connector pin, linkage pivot.
Fits Models:
TB014, TB016
