Description
Overview:

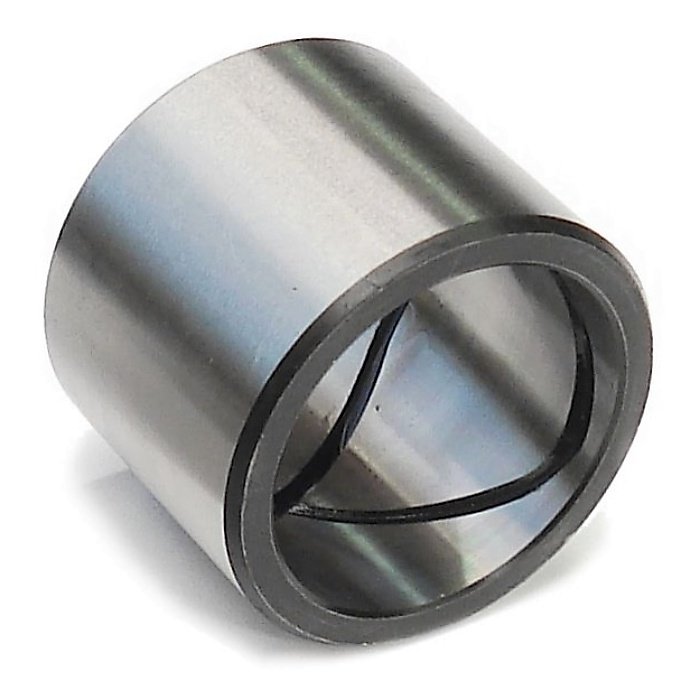

The Bucket Bush 30x40x40mm is a precision-machined steel sleeve used at the bucket pivot points on compact diggers and mini excavators. It replaces worn bushes to restore correct pin clearance, reduce play, and keep bucket movement smooth and controlled. With an inner diameter of 30 mm, outer diameter of 40 mm, and a length of 40 mm, it suits machines set up for a 30 mm bucket pin. Built from heavy-duty steel for reliability on site, it supports routine maintenance and full overhauls alike. Ideal for models such as EC14 and TB015, it helps extend the service life of pins, bosses and linkage components by spreading load properly and resisting abrasion in demanding groundworking conditions.
Key Features:
- Dimensions: 30 mm I/D, 40 mm O/D, 40 mm length for correct fit-up
- Machined steel construction for wear resistance and long service life
- Helps restore smooth articulation and reduces bucket and linkage play
- Supports tight, consistent pin-to-bush clearances to protect mating parts
- Robust design suited to frequent digging, grading and loading cycles
- Secure interference/press fit in the bucket boss when installed correctly
- Compatible with a wide range of digger models listed below
- Straightforward to fit with standard workshop tools and a suitable press
- Low-maintenance plain sleeve design for harsh site environments
- Ideal as part of preventative maintenance or bucket refurbishment
Typical Applications:
Replacement of bucket hinge bushes during pin-and-bush servicing, linkage rebuilds, or bucket refurbishment. Suitable for plant hire fleets, owner-operators and workshops maintaining compact excavators used in construction, utilities, landscaping, groundwork, and general excavation where smooth, accurate bucket movement is essential.
Also known as:
Pin bush, pivot bush, sleeve bush, bucket pivot bush, linkage bush, bucket hinge bush, bucket knuckle bush, digger pivot sleeve.
Fits Models:
301.5, 301.6, 301.8, 301.8C, 3015, 3016, 3018, 3018C, AX15, B12, B14, B15, B17, EB10, EB12, EB12.4, EB124, EB14.4, EB144, EB16.4, EB164, EC14, EC15, EC15B, EC15D, EC18C, EX15, EX16, EX17-1, EX17-2, EX171, EX172, H15A, N120, N120-2, N1202, N150-2, N1502, SV15, SV17, TB014, TB015, TB016, TB219, X220, X320, X322, X323, YB121, YB151, ZX16, ZX17U
Product Specifications
| L&S Part No. | 202 902 |
|---|---|
| Unit of Sale | 1 |
| Size | Length - 40mm x O/D - 40mm x I/D - 30mm |
| Applications | 301.5, 301.6, 301.8, 301.8C, 3015, 3016, 3018, 3018C, AX15, B12, B14, B15, B17, EB10, EB12, EB12.4, EB124, EB14.4, EB144, EB16.4, EB164, EC14, EC15, EC15B, EC15D, EC18C, EX15, EX16, EX17-1, EX17-2, EX171, EX172, H15A, N120, N120-2, N1202, N150-2, N1502, SV15, SV17, TB014, TB015, TB016, TB219, X220, X320, X322, X323, YB121, YB151, ZX16, ZX17U |
| Machine Type | Excavators |
| Fits Brands | BobCat, Caterpillar, Hanix, Nissan, Pel Job, Takeuchi, Volvo, Yanmar |
| Fits Models | H15A | TB014 | TB015 | TB016 | TB219 | EC14 | EC15 | EC15B | B12 | B14 | B15 | B17 | SV17 | X320 | X322 | X323 | 301.5 | 301.6 | 301.8 | AX15 | EX15 | EX16 | EX17-1 | EX17-2 | ZX16 | ZX17U |
