Description
Overview:

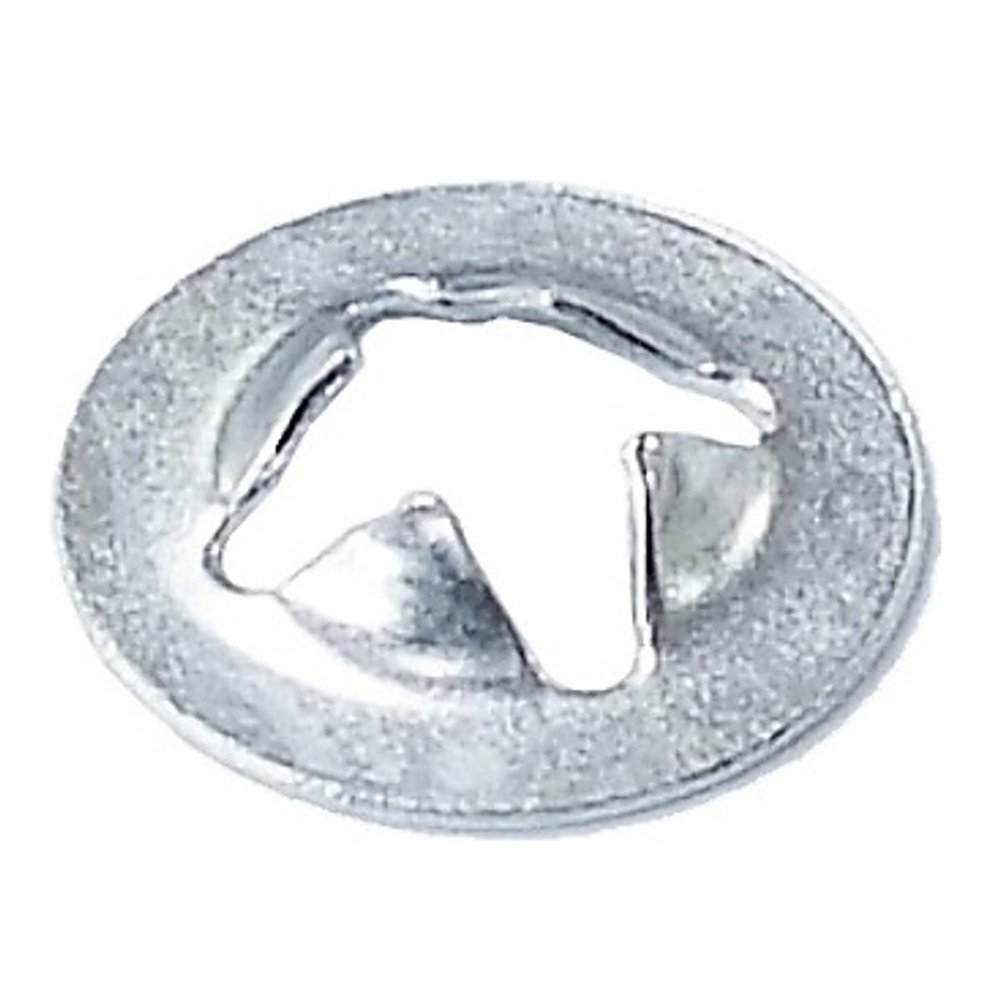

The Push Nut 4.0x9.6x1.8 is a genuine Stihl steel push-on fastener used to secure components on handheld outdoor power tools. It is commonly found on brushcutters, trimmers, hedge trimmers, blowers, kombi tools and MultiSystem machines, and is suitable for models such as the Stihl FS80 and FS80R. This low-profile fastener grips a smooth shaft or stud to stop parts working loose under vibration, helping to maintain reliable and safe operation. Manufactured to Stihl's specification with a durable black steel finish, it provides a firm hold without needing a threaded nut. Dimensions are 4.0 mm x 9.6 mm x 1.8 mm for correct fit and retention. Supplied as a Genuine Part under Stihl number 9417 003 7512 for dependable service life and fitment.
Key Features:
- Genuine Stihl part for OE fit and performance (9417 003 7512)
- Robust steel construction with a hard-wearing black finish
- Push-on design grips plain shafts or studs; resists vibration loosening
- Quick to fit and remove; no threading required
- Factory dimensions: 4.0 mm x 9.6 mm x 1.8 mm for accurate seating
- Low-profile fastener for tight assemblies and smooth operation
- Helps prevent loss of components and unplanned downtime
- Widely used across many Stihl machines and attachments
Typical Applications:
Retaining small components on pins and shafts in high-vibration areas, such as guards, linkages, pivots, spools, covers and brackets on brushcutters, trimmers, hedge trimmers, blowers, split-shaft tools and MultiSystem equipment. Suitable for routine maintenance, replacements, and repairs where a reliable push-on fixing is required.
Also known as:
Clip nut, speed nut, snap nut, push-on nut, push-on fastener, retaining push clip.
Fits Models:
BG 45, BG 46, BG 55, BG 65, BG 75, BG 85, BG45, BG46, BG55, BG65, BG75, BG85, BR 45 C, BR45C, FC 55, FC 55 DZ, FC 73, FC 75, FC 85, FC55, FC55DZ, FC73, FC75, FC85, FH 75, FH75, FR 85, FR 85 T, FR85, FR85T, FS 360 C, FS 38, FS 410 C, FS 45, FS 45 C, FS 45 L, FS 46, FS 46 C, FS 460 C, FS 460 RC, FS 490 C, FS 510 C, FS 55, FS 55 C, FS 55 R, FS 55 RC, FS 55 T, FS 560 C, FS 75, FS 80, FS 80 R, FS 85, FS 85 R, FS 85 RX, FS 85 T, FS360C, FS38, FS410C, FS45, FS45C, FS45L, FS46, FS460C, FS460RC, FS46C, FS490C, FS510C, FS55, FS55C, FS55R, FS55RC, FS55T, FS560C, FS75, FS80, FS80R, FS85, FS85R, FS85RX, FS85T, HL 45, HL 75, HL 75 K, HL45, HL75, HL75K, HS 45, HS 52, HS 75, HS 80, HS 85, HS45, HS52, HS75, HS80, HS85, HT 70, HT 70 K, HT 75, HT70, HT70K, HT75, KA 85 R, KA 85 R Attachment, KA85R, KA85R Attachment, KA85RAttachment, KM 55, KM 55 C, KM 55 R, KM 55 RC, KM 85, KM 85 R, KM55, KM55C, KM55R, KM55RC, KM85, KM85R, KR 85, KR 85 Attachment, KR85, KR85 Attachment, KR85Attachment, KW 85, KW85, MM 55, MM 55 C, MM 55 C MultiSystem, MM 55-Z MultiSystem, MM55, MM55-ZMultiSystem, MM55C, SH 55, SH 85, SH55, SH85, SP 80, SP 80 K, SP 81, SP 85, SP 85 K, SP80, SP80K, SP81, SP85, SP85K, TSA 230, TSA230
Alternate Part Numbers:
9417-003-7512, 94170037512
Product Specifications
| L&S Part No. | 9417 003 7512 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94170037512 |
| Unit of Sale | 1 |
| Size | 4.0x9.6x1.8mm |
| Applications | BG 45, BG 46, BG 55, BG 65, BG 75, BG 85, BG45, BG46, BG55, BG65, BG75, BG85, BR 45 C, BR45C, FC 55, FC 55 DZ, FC 73, FC 75, FC 85, FC55, FC55DZ, FC73, FC75, FC85, FH 75, FH75, FR 85, FR 85 T, FR85, FR85T, FS 360 C, FS 38, FS 410 C, FS 45, FS 45 C, FS 45 L, FS 46, FS 46 C, FS 460 C, FS 460 RC, FS 490 C, FS 510 C, FS 55, FS 55 C, FS 55 R, FS 55 RC, FS 55 T, FS 560 C, FS 75, FS 80, FS 80 R, FS 85, FS 85 R, FS 85 RX, FS 85 T, FS360C, FS38, FS410C, FS45, FS45C, FS45L, FS46, FS460C, FS460RC, FS46C, FS490C, FS510C, FS55, FS55C, FS55R, FS55RC, FS55T, FS560C, FS75, FS80, FS80R, FS85, FS85R, FS85RX, FS85T, HL 45, HL 75, HL 75 K, HL45, HL75, HL75K, HS 45, HS 52, HS 75, HS 80, HS 85, HS45, HS52, HS75, HS80, HS85, HT 70, HT 70 K, HT 75, HT70, HT70K, HT75, KA 85 R, KA 85 R Attachment, KA85R, KA85R Attachment, KA85RAttachment, KM 55, KM 55 C, KM 55 R, KM 55 RC, KM 85, KM 85 R, KM55, KM55C, KM55R, KM55RC, KM85, KM85R, KR 85, KR 85 Attachment, KR85, KR85 Attachment, KR85Attachment, KW 85, KW85, MM 55, MM 55 C, MM 55 C MultiSystem, MM 55-Z MultiSystem, MM55, MM55-ZMultiSystem, MM55C, SH 55, SH 85, SH55, SH85, SP 80, SP 80 K, SP 81, SP 85, SP 85 K, SP80, SP80K, SP81, SP85, SP85K, TSA 230, TSA230 |
| Machine Type | Brushcutters, Blower/Shredders |
| Fits Brands | Stihl |
| Fits Models | FS38, FS45, FS46 | FS55, FS55C, FS55R | FS75, FS80, FS85 | FS360C FS410C | FS460C, FS460RC | TSA230 | HS45 | HS75 | BG75 | BR45C | SH55, SH85 | FS490C, FS510C, FS560C | FR85T, FR85 | HT70, HT70K, HT75 | KM55, KM55C, KM55R, KM55RC | KM85, KM85R | KA85R Attachment | KR85 Attachment | MM 55, MM 55 C MultiSystem | MM 55-Z MultiSystem | KW 85 | FC 55 DZ | FC 73 | FC 75 | FC 85 | HL45 | HL75, HL75K | HS52 | BG55 | BG85 | HS80 | HS85 | FSA400 | FS361C | FS411 C-EM | FS461 C-EM | FS491 C-EM | SP 85 | FS461 C-EML |
