Description
Overview:

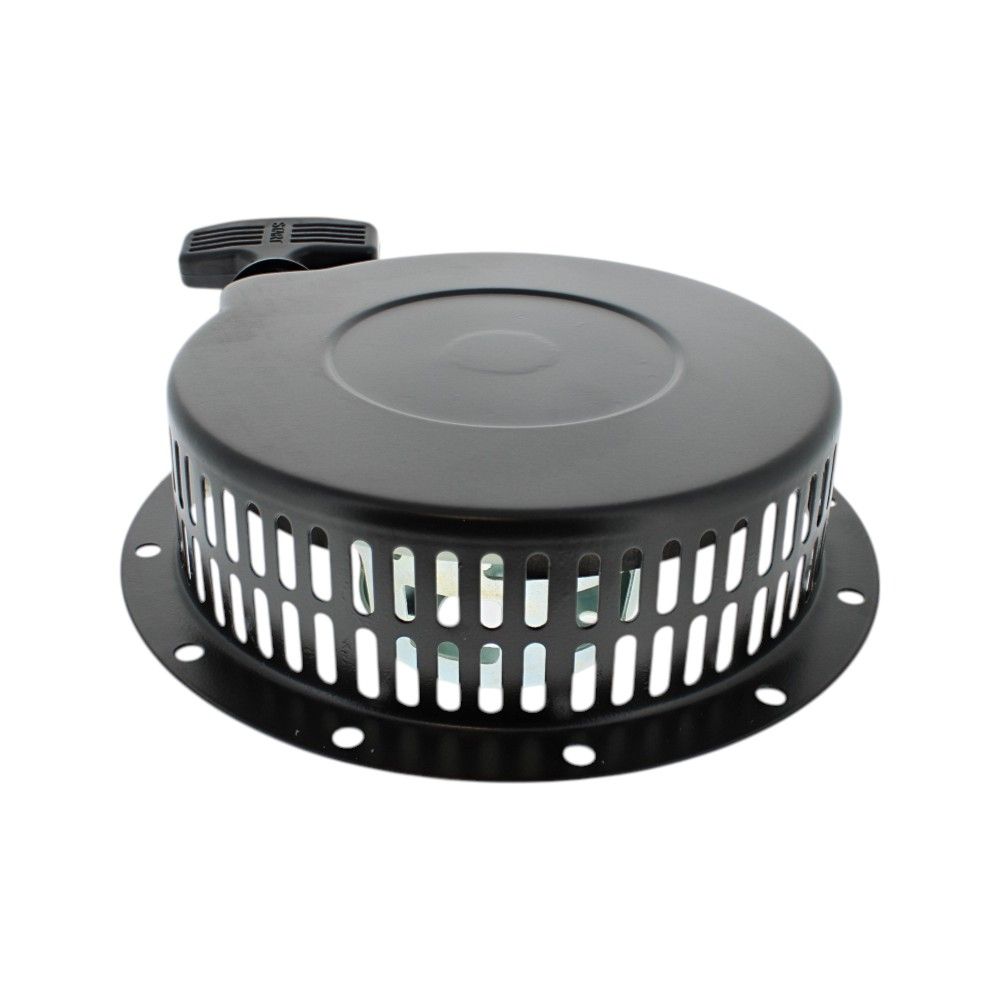

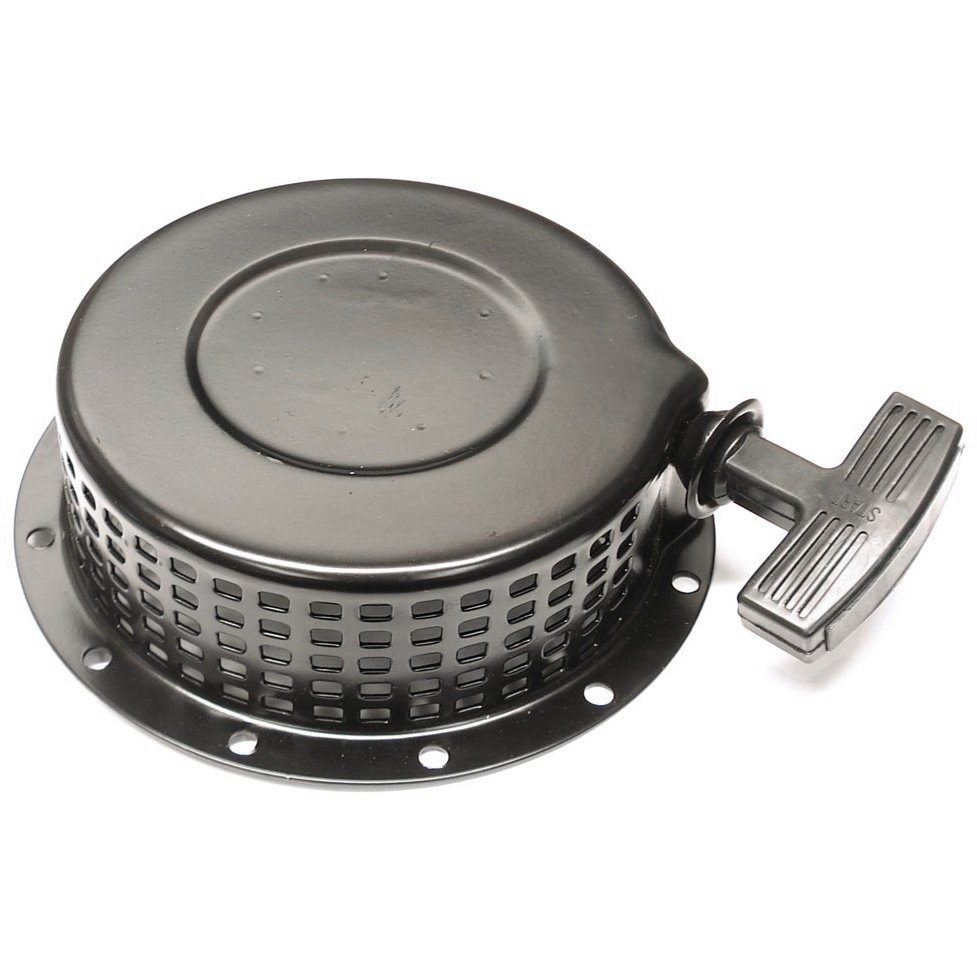

The Recoil Assembly fits Yanmar L90, L100, and L100N engines and restores smooth, reliable hand starting on small diesel machinery. It is a non-genuine replacement that directly replaces OEM part number 114650-76050. Built with a robust metal housing, a strong recoil spring, and a durable starter cord with a comfortable T‐handle, it is designed for regular site or garden use. Key dimensions are set to match the OE unit: fixing hole diameter 6 mm, central cylinder diameter 80 mm, depth 6 cm (2.36 inches), and outer diameter 23.5 cm (9.25 inches). Ideal for users maintaining Yanmar L90 and L100 series engines, it provides a straightforward, bolt-on solution when the original recoil is worn, sticking, or broken, helping keep equipment dependable and easy to start.
Key Features:
- Non-genuine replacement for Yanmar OEM 114650-76050
- Compatible with Yanmar L90, L100, and L100N engine families
- Durable metal housing and quality recoil spring for long service life
- Preassembled unit for straightforward fitting with basic hand tools
- Smooth rewind action for consistent, reliable starting performance
- Fixing hole diameter: 6 mm for common fasteners
- Central cylinder diameter: 80 mm for correct engagement
- Depth: 6 cm (2.36 inches) to suit standard shrouds and clearances
- Outer diameter: 23.5 cm (9.25 inches) to match OE footprint
- Protective finish suitable for outdoor and site environments
- Practical choice to replace worn cords, damaged housings, or weak springs
Typical Applications:
Commonly used on equipment powered by Yanmar L‐series diesel engines, including generators, water pumps, plate compactors, trench rammers, cement mixers, small plant, and garden machinery. Suitable for routine maintenance or as a direct swap when the existing recoil unit fails to engage, slips, does not retract, or is cracked from impact or corrosion.
Also known as:
Rewind starter, manual rewind, hand pull starter, rope start unit, starter recoil, manual start mechanism, hand crank pull, cord rewind assembly, rope rewind starter, manual pull starter assembly.
Fits Models:
186F, L100, L100AE, L100N, L90, L90AE
Alternate Part Numbers:
M5341
