Overview:

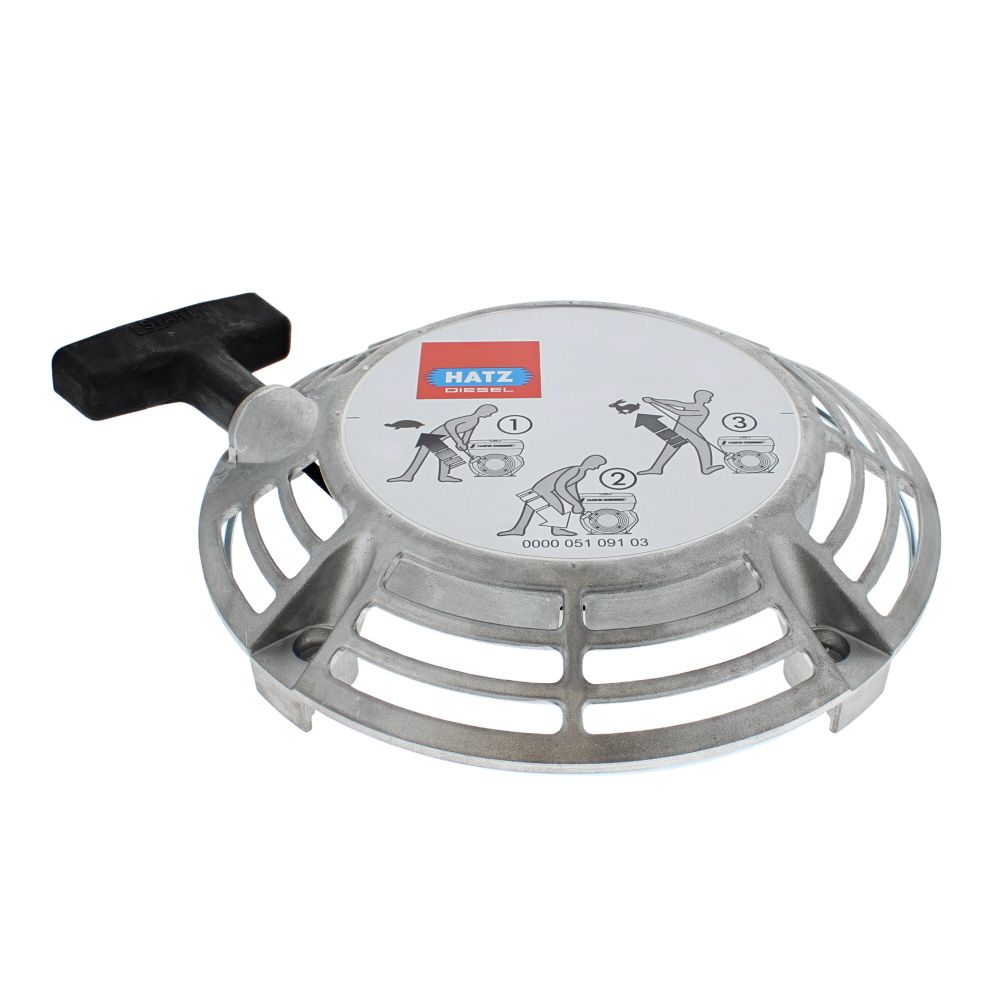

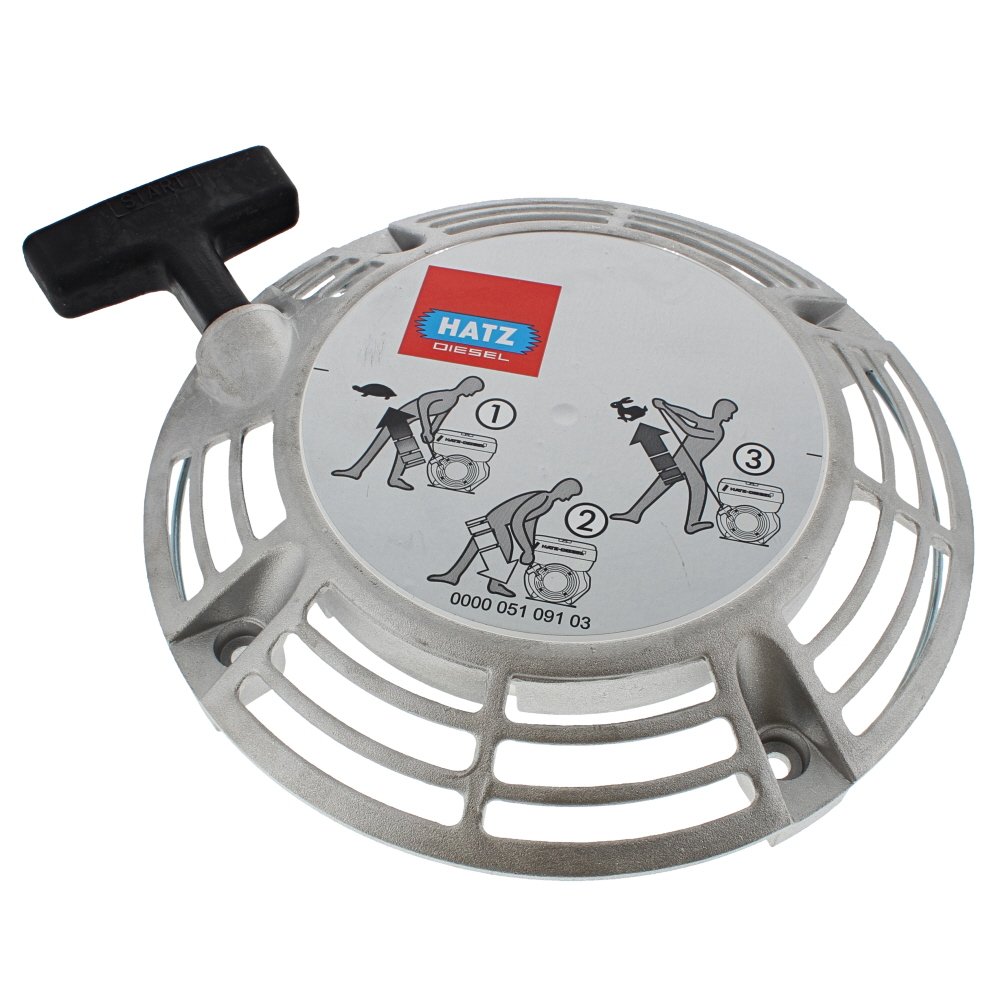

This Recoil Assembly is a genuine Hatz OEM part (OEM No. 02319100) for reliable manual starting on Hatz 1B series engines, including the 1B20 and 1B40. Built for tough site and outdoor use, it features a durable metal housing with an internal recoil spring, starter rope, and a robust handle to engage the flywheel and start the engine by hand. It replaces worn or damaged starter units to restore consistent starting performance. Suitable for construction plant and garden machinery powered by Hatz single-cylinder engines, it helps keep equipment running with minimal downtime. As an original Hatz component, it offers the correct fit and operation with the specified engines and machines that use them.
Key Features:
- Genuine Hatz OEM part (02319100) for assured compatibility and performance
- Durable metal housing and spring mechanism built for frequent use on site
- Smooth, consistent rewind and positive flywheel engagement for dependable starting
- Supplied as a complete unit for straightforward replacement of a worn assembly
- Simple bolt-on fit using standard fixings on Hatz 1B engines
- Helps maintain optimal engine performance and reduces start-up issues
- Suitable for a wide range of light plant and grounds-care equipment
- Cross-references to multiple Hatz part numbers for easy identification
Typical Applications:
Restores manual starting on equipment powered by Hatz 1B engines, such as plate compactors, trench rammers, generators, pumps, concrete tools, and grounds-care machines. Ideal for contractors, plant hire fleets, facilities teams, and DIY users who need a dependable hand-start solution in all weather and site conditions.
Also known as:
Rope start unit, hand-start unit, starter rewind unit, rewind housing, starter pulley assembly, pawl-type starter mechanism, manual starter unit.
Fits Models:
1B20, 1B30, 1B40, 1B50, DPS 1850Ha, DPS 1850Hb, DPS 1850Hv, DPU 2540H, DPU 2550H, DPU 2560H, DPU 2560Hts, DPU 3050H, DPU 3050He, DPU 3060H, DPU 3060Hets, DPU 3060Hts, DPU 3070H, DPU 3750Hets, DPU 3750Hts
Alternate Part Numbers:
5100051946, 01515002, 01865500, 01872300, 01865200, 01865210, 2319100, 865 500, 865500
Product Specifications
| L&S Part No. | 02319100 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Hatz |
| OEM No. | 02319100 |
| Unit of Sale | 1 |
| Applications | 1B20, 1B30, 1B40, 1B50, DPS 1850Ha, DPS 1850Hb, DPS 1850Hv, DPS1850Ha, DPS1850Hb, DPS1850Hv, DPU 2540H, DPU 2550H, DPU 2560H, DPU 2560Hts, DPU 3050H, DPU 3050He, DPU 3060H, DPU 3060Hets, DPU 3060Hts, DPU 3070H, DPU 3750Hets, DPU 3750Hts, DPU2540H, DPU2550H, DPU2560H, DPU2560Hts, DPU3050H, DPU3050He, DPU3060H, DPU3060Hets, DPU3060Hts, DPU3070H, DPU3750Hets, DPU3750Hts |
| Machine Type | Engines |
| Fits Brands | Hatz, Wacker Neuson |
| Fits Models | 1B20 | 1B30 | 1B40 | 1B50 |
