Description
Overview:

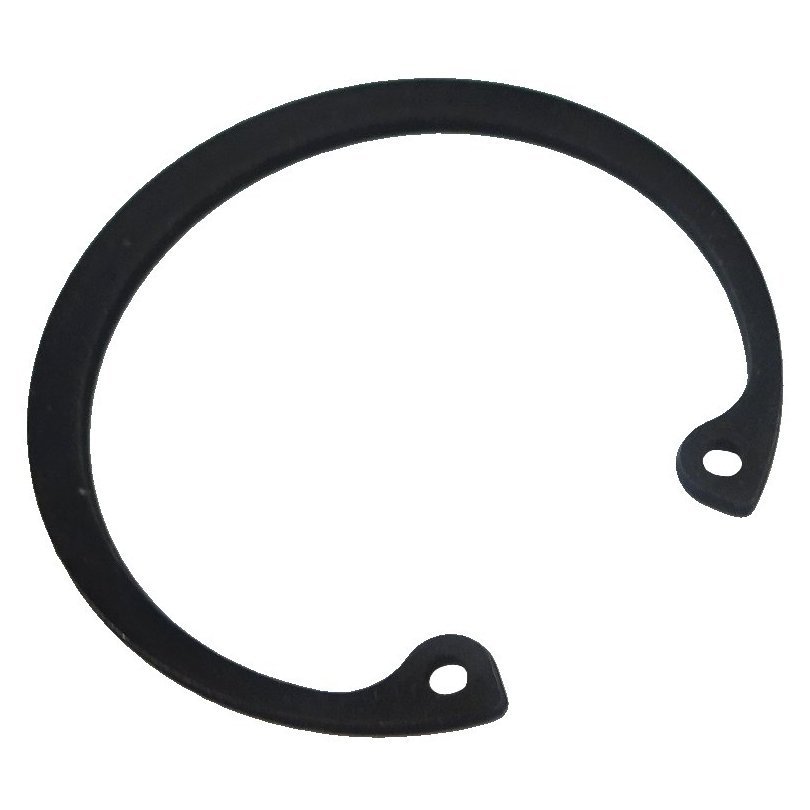

This retaining ring is a small but critical fastener used to hold components securely on a shaft or in a housing within Paslode nail guns. Made from hardened spring steel for strength and resilience, it resists deformation and keeps parts located under vibration and repeated firing. It helps maintain smooth, reliable cycling by preventing unwanted movement of pins, shafts, or assemblies inside the tool. Suitable for cordless finish nailers such as the Paslode IM65 and IM250, it supports routine servicing and repair where a worn or missing ring could cause misfeeds or inconsistent operation. Marked with MPN 403099, it provides a precise fit for the intended groove dimensions in the applicable models, helping restore performance without the need for major strip-downs.
Key Features:
- Hardened spring steel construction for long service life under frequent use
- Positive retention of components to reduce play and misalignment
- Helps maintain consistent nail feed and firing performance
- Compact form factor suited to confined areas within the tool body
- Straightforward to install with standard circlip pliers, minimising downtime
- Correct groove fit for the specified Paslode models for reliable seating
- Supports preventative maintenance and reduces risk of in‐use failures
- Identified by part number 403099 for accurate ordering and stocking
Typical Applications:
Used during maintenance or repair of Paslode finish nailers to retain pins, shafts, or bearings on sub‐assemblies such as driver units, magazines, triggers, or linkages. Ideal for workshops, site repairs, or van‐based servicing where quick, reliable reinstatement of parts is required to keep tools productive.
Also known as:
Snap ring, circlip, locking ring, retention ring, retaining clip, shaft ring. These terms refer to the same style of spring-steel fastener that sits in a machined groove to hold components axially in place.
Fits Models:
IM65
IM65A
IM250
Alternate Part Numbers:
403099
Product Specifications
| L&S Part No. | 904 0214 |
|---|---|
| Manufacturer | Paslode/Spit |
| OEM No. | 403099 |
| Unit of Sale | 1 |
| Applications | IM250, IM65, IM65 (F16, IM65A, Lithium) |
| Machine Type | Nail Guns |
| Fits Brands | Paslode |
| Fits Models | IM65 (NiCD NiMH) | IM250 | IM65 (F16 Lithium) | IM65A (F16 Lithium) | IM65A (F16 NiCD NiMH) |
