Description

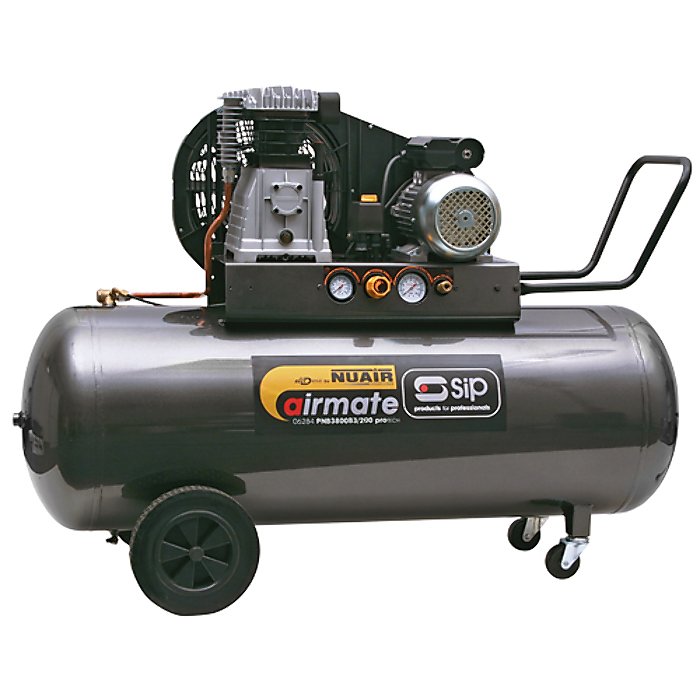

The PB3800B3/200 ProTech is a belt-drive compressor, which boasts an oversized crankcase for better lubrication, finned manifolds, and cast iron barrel. Ideal for professional applications.
- 230v (16amp) input supply
- Powerful 3.0hp (2.2kW) motor
- Oil lubricated, belt-driven unit
- Large 200.0 litre air receiver size
- 11.0CFM maximum free air delivery
- 16.0CFM max. piston displacement
- 145.0psi (10.0 bar) maximum pressure
- Super slow running belt - smooth operation
- Integrated adjustment knob and bleed tap
- Oversized crankcase for better lubrication
- Cast iron barrel and finned manifolds
- Wheel mounted for easy movement
- Premium Italian construction
- 2 year warranty
Fifty years of research and development is behind the SIP collection of compressors, air tools, and accessories - with our range recognised as one of the widest in the UK and worldwide.
ITEM NO. | 06284 | Supply | 230v (16amp) | Motor | 3.0hp (2.2kW) | Air Receiver Size | 200 litres | Piston Displacement | 16.0CFM (453 litres/min) | Free Air Delivery (F.A.D.) | 11.0CFM (311.5 litres/min) | Max. Pressure | 145psi (10.0 bar) | Wheel Mounted | Yes | Warranty | 2 years | Noise Level | 97dB(A) | Gross Weight | 102.0kg | Packaged Dimensions | 1015 x 1520 x 445mm | Additional | Made in Italy |
Product Specifications
L&S Part No. | 845 6284 |
---|---|
Part Type | Genuine Part |
Manufacturer | SIP Industrial Products |
OEM No. | 06284 |
Unit of Sale | 1 |
Size | 1015 x 1520 x 445mm |
