Description
Overview:

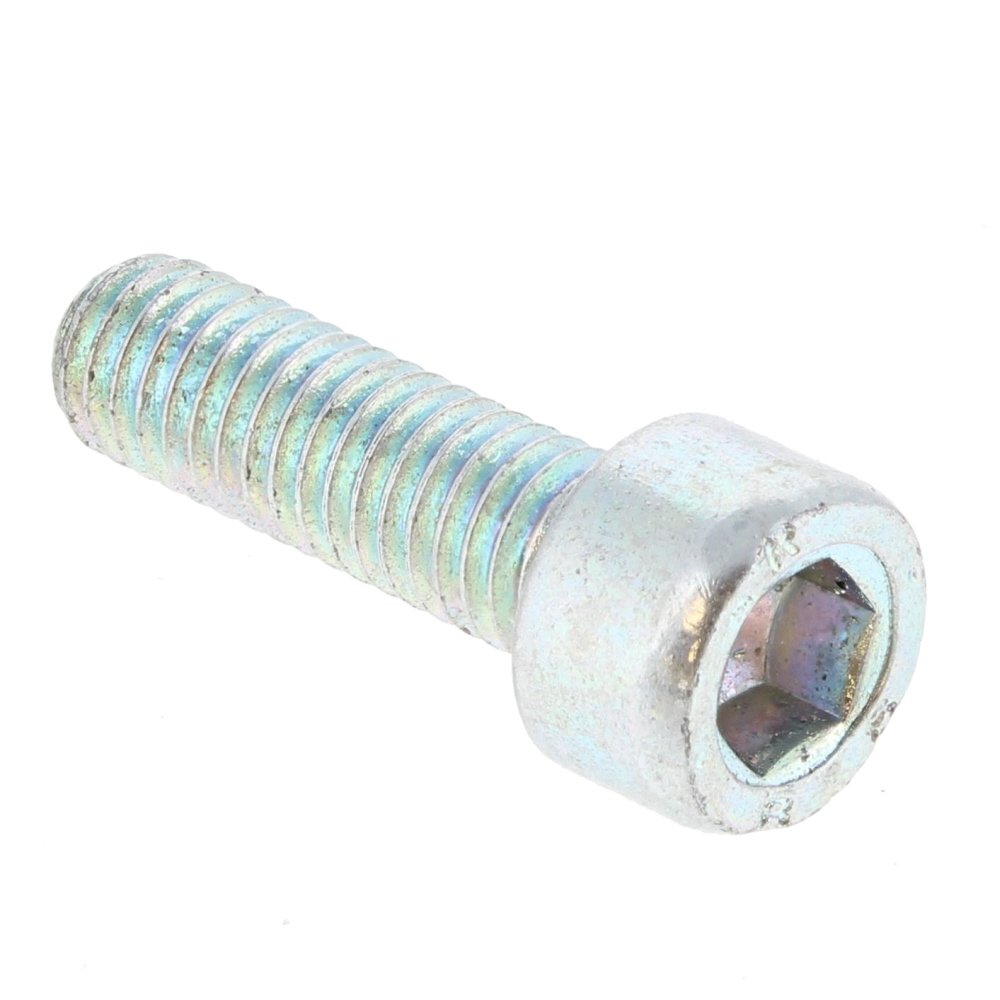

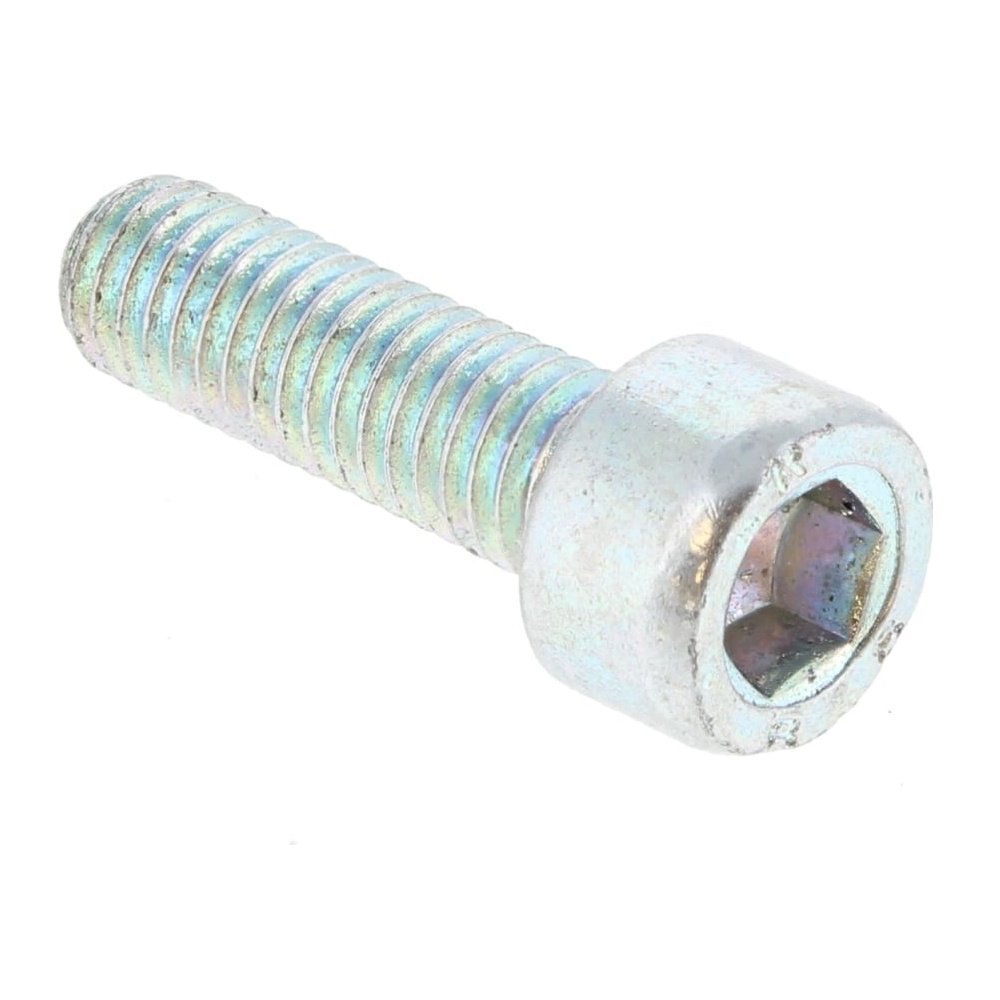

This Genuine Stihl Socket Head Screw M6x20 is a factory-spec fastener for heavy-duty applications across selected Stihl machines, including the 090 and 090G chainsaws. Manufactured in steel with a hex (Allen) socket head, it offers accurate, repeatable clamping where a compact head and reliable hold are needed. With an M6 thread and 20 mm length, it suits component mounting points commonly found on chainsaws, pressure washers, and other Stihl equipment. As an OEM part, it matches original dimensions and material specification for consistent fit, alignment, and service life. Manufacturer Part Number 9045 319 1320 ensures you are fitting the correct screw for your machine, helping maintain safety, stability, and correct assembly during use and servicing.
Key Features:
- Genuine Stihl OEM part for assured compatibility and fit
- M6 thread, 20 mm length for common equipment fastening points
- Steel socket cap head design for strong clamping and neat finish
- Hex drive allows positive engagement and reduced risk of cam-out
- Suitable for high-vibration machinery when installed and torqued correctly
- Stable, repeatable fit helps maintain alignment of covers, brackets, and housings
- Smooth shank/head interface designed for tidy seating against mating surfaces
- Supports efficient maintenance with straightforward removal and refit
- Replaces worn or missing screws to restore safe operation
Typical Applications:
Used to secure covers, guards, brackets, handle frames, pump or motor housings, and other assemblies on Stihl chainsaws and pressure washers. Ideal where a compact head and reliable clamping force are required, especially in areas subject to vibration and frequent service access. Suitable for workshop repairs, scheduled maintenance, and part replacements.
Also known as:
Socket cap screw, cap head screw, Allen bolt, hex socket cap screw, SHCS, cap screw, M6 cap bolt, Allen cap, machine screw (socket head), metric socket bolt.
Fits Models:
070, 090, 090G, MS 720, MS720, NG 3, NG3, RB 402, RB402, RE 300 K, RE 330 K, RE 500 W, RE 520 W, RE 530 W, RE 550 W, RE 560 W, RE 580 W, RE 88, RE 98, RE300K, RE330K, RE500W, RE520W, RE530W, RE550W, RE560W, RE580W, RE88, RE98
Alternate Part Numbers:
9045-319-1320, 90453191320
Product Specifications
| L&S Part No. | 9045 319 1320 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90453191320 |
| Unit of Sale | 1 |
| Applications | 070, 090, 090G, MS 720, MS720, NG 3, NG3, RB 402, RB402, RE 300 K, RE 330 K, RE 500 W, RE 520 W, RE 530 W, RE 550 W, RE 560 W, RE 580 W, RE 88, RE 98, RE300K, RE330K, RE500W, RE520W, RE530W, RE550W, RE560W, RE580W, RE88, RE98 |
| Machine Type | Chainsaws |
| Fits Brands | Stihl |
| Fits Models | MS720 | 070 | 090, 090G | RE 88 | RE 98 | RB 402 | RE520W, RE550W, RE580W | RE 300 K, RE 330 K | NG 3 | MI 555 C |
