Description
Overview:

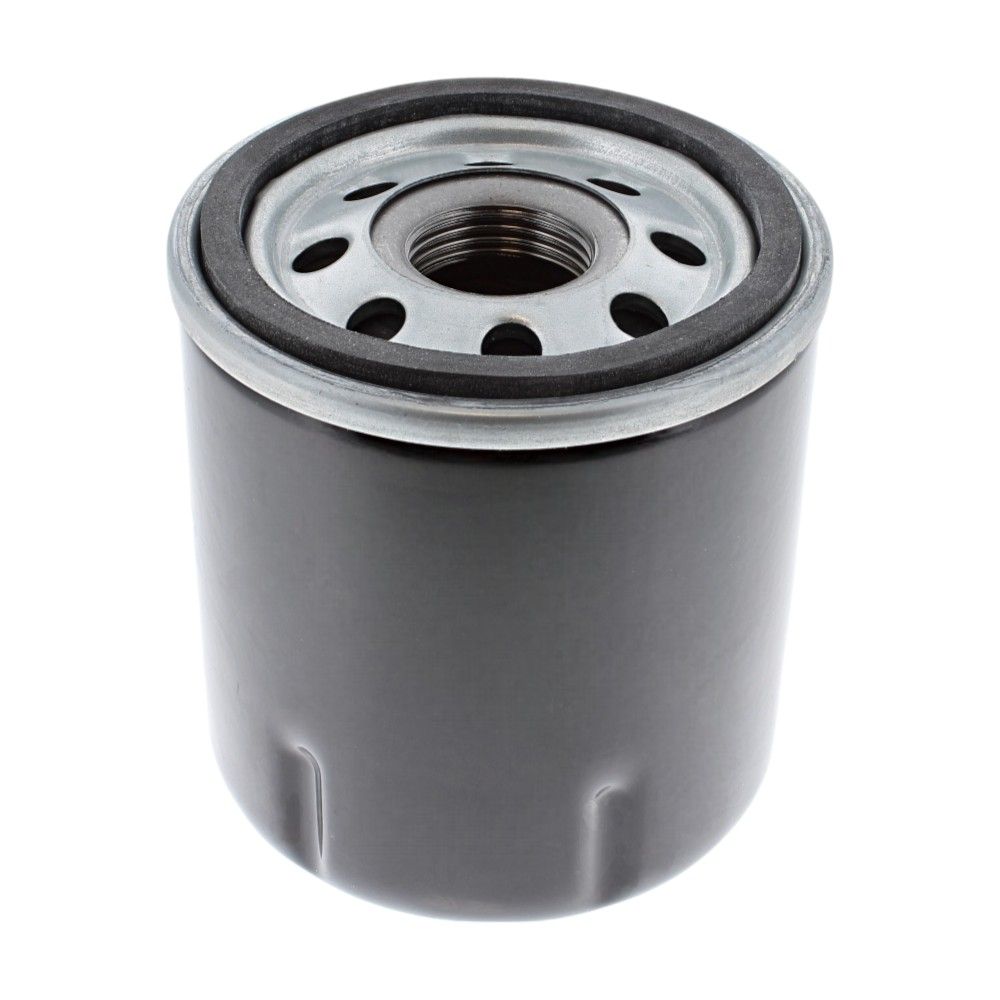

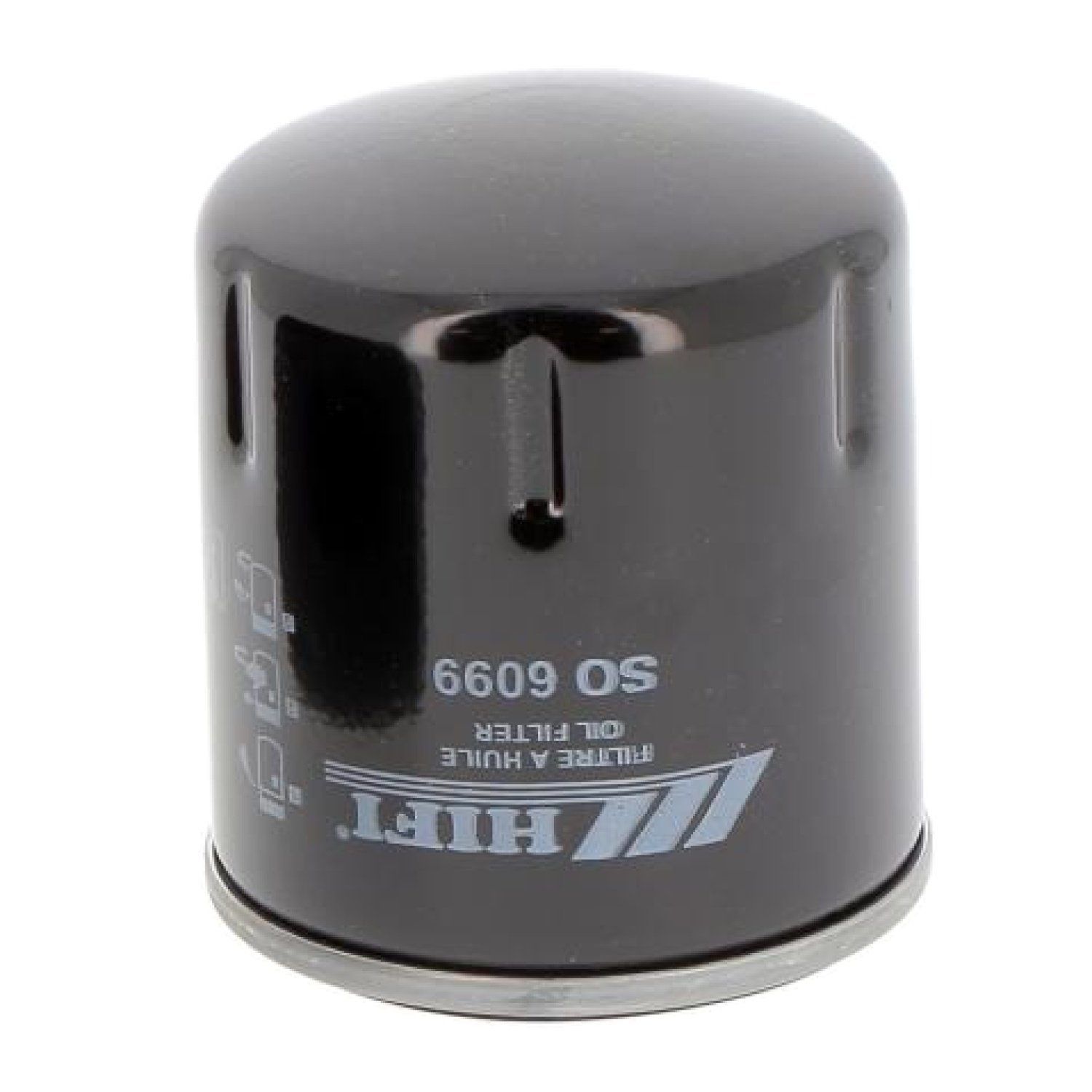

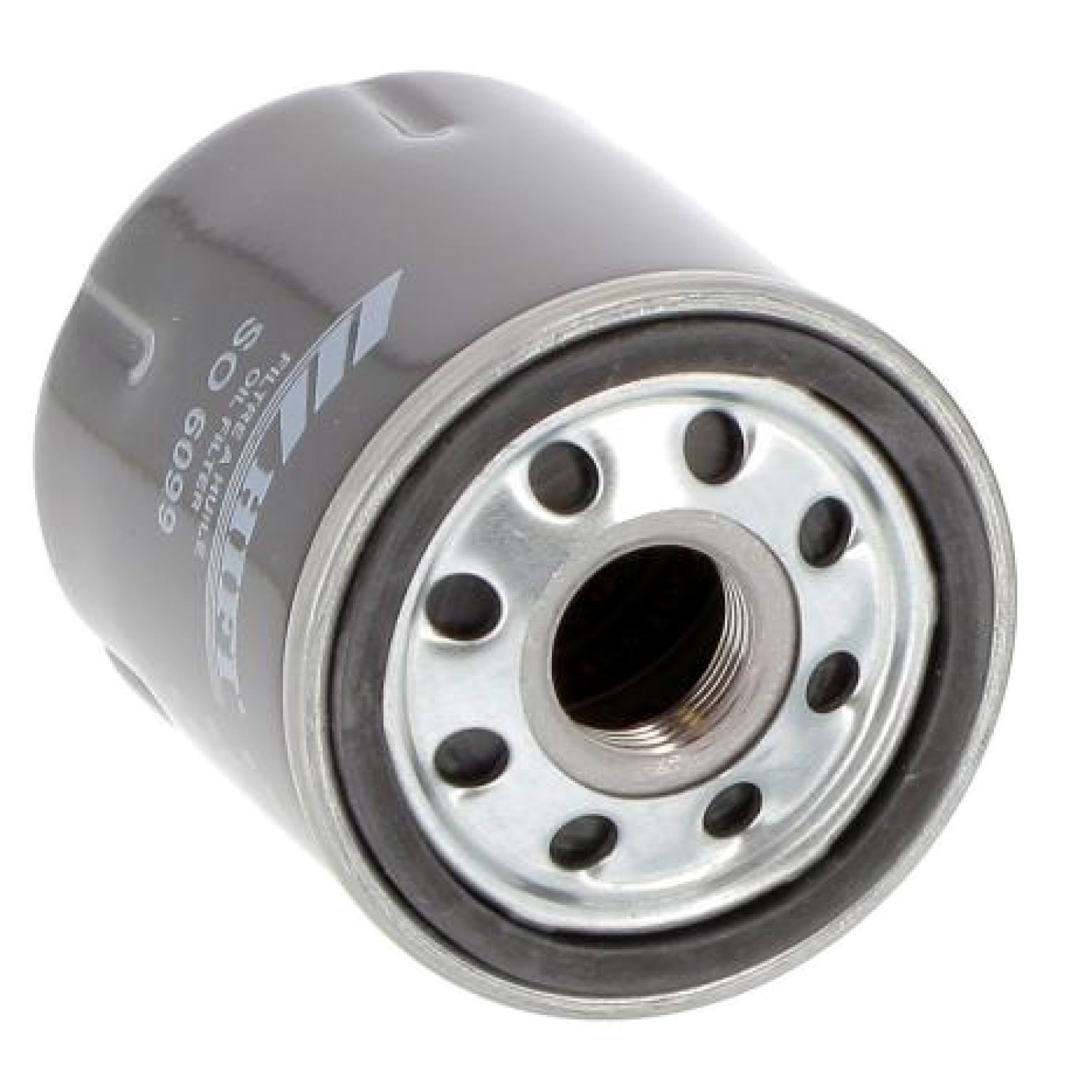

The Spin On Oil Filter, replacing part number W21ES-O1500, is a Genuine OEM component. It is designed specifically for use in Bomag and Kubota machinery such as compactors and excavators. This filter is essential for maintaining oil purity by capturing contaminants within the engine system, aiding in efficient machine operation. Compatible models include Bomag and Kubota models like E 08, E 10, E 14, and others.
Key Features:
- Genuine OEM part
- Replaces W21ES-O1500
- Compatible with various Bomag and Kubota models
- Essential for engine oil filtration
- Supports compactors and excavators
Typical Applications:
Used in the lubrication systems of compactors and excavators to filter engine oil, ensuring the engine runs smoothly by removing impurities. Fits models including Bomag and Kubota E-series and X-series.
Also known as:
Oil Filter, Hydraulic Filter
Fits Models:
Bomag, Kubota, E 08, E 10, E 14, E 16, E 17, E 19, E 20, E 63, X 316, X 319, X 320 D, X 322, X 322 D, X 322 G, X 323, C 1200, 2036R, 3038E, 3033R, 3038R, 3045R, 4049M, 4049R, 4066R
Alternate Part Numbers:
121837140052800, 12183714052800, K 15853-3243-3, 15400.PLC.004, 15400.PJ7.015, 15400-PJ7-015, 15410.MCJ.000, 15400.PM3.004, 15400 PJ7 015, 15400.PJ7.005, 15400 PLC 004, 15400 PJ7 005, 15400-PFB-007, 15400 PM3 004, 15400-PLC-004, 15400.PFB.007, 15400-PJ7-005, 15410 MCJ 000, 15400-PM3-004, 15400 PFB 007, 15410-MCJ-000, 15853-3243-0, 15853-3243-3, 15853-9917-0, 15853-9917-9
Product Specifications
| L&S Part No. | LO9087 |
|---|---|
| OEM No. | S3012 |
| Unit of Sale | 1 |
| Size | 75mm x 67mm x 67mm x M20-1.5 Thread |
| Machine Type | Compactors, Excavators |
| Fits Brands | Alco Filters, Baldwin, Bobcat, Cormidi, Crosland, Greyfriars, HIFI, Hako, Honda, Ingersoll Rand, John Deere, Jura, Kawasaki, Kubota, Luberfiner, Mann & Hummel, Ransomes, Schuup, TFS, Woodgate |
| Key Features | - Spin On Oil Filter for Bomag, Kubota machines - Fits models E08, E10, E14, E16, E17, E19, E20 - Genuine OEM replacement part - Suitable for compactors and excavators - Cross-references multiple OEM part numbers |
| Filter Specifications | D1: 70mm D2: 66mm D3: 62mm H1: 77mm H2: 75mm H3: 4mm Thread: M20X1,5 Check valve: 1 By-pass valve: 1 |
| Fits Models | D902-E2B | GR2100 | GR2110 | GF1800 | ZD18 | ZD21 | ZD1011 | ZD1011-3 | TG1860 | D782-EB | Z482-EB | GZD21-HD | WG750-E | WG972-GL-E3 | DF752-E2 |
