Description
Overview:

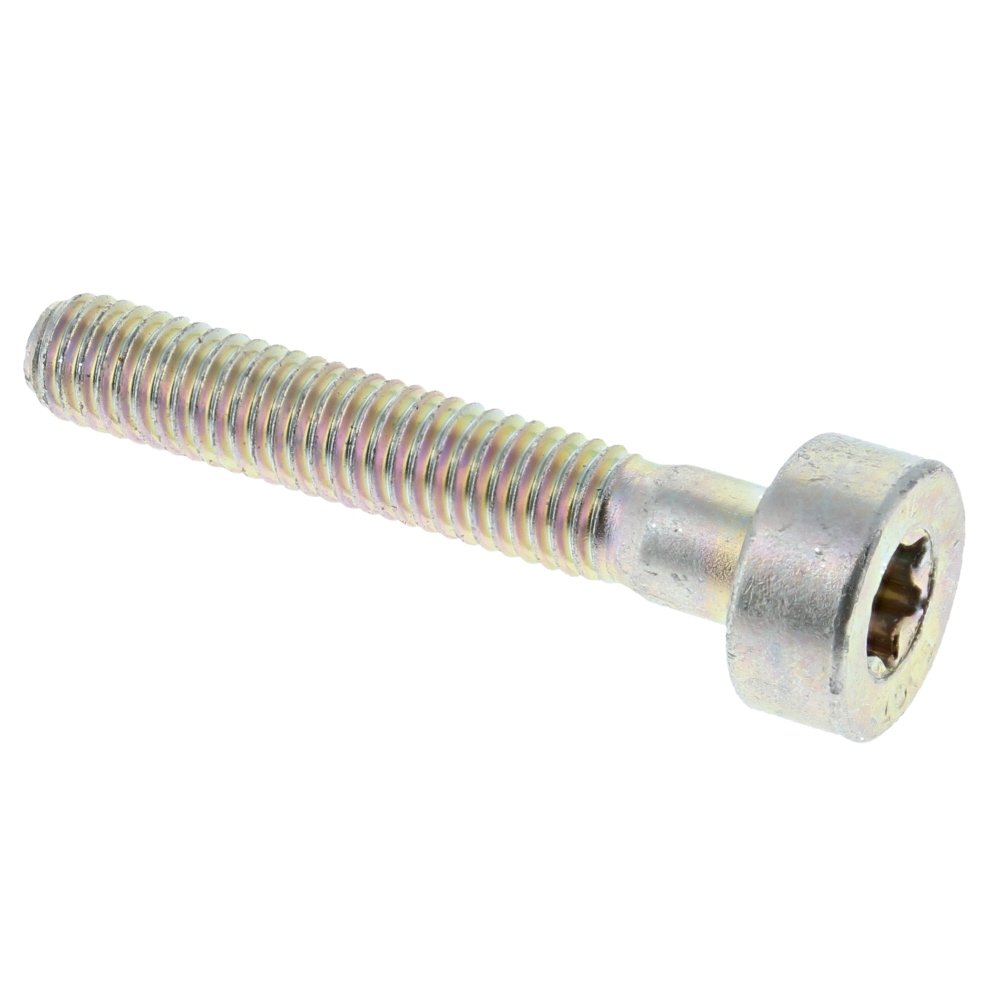

The Spline Screw for Stihl FS56 and FS120 brushcutters is a Genuine Stihl replacement fastener that secures key components under vibration and heavy use. Made from robust steel with a precision splined drive, it provides a tight, reliable hold to maintain machine integrity during operation. It is suitable for a wide range of Stihl brushcutters, hedge trimmers, KombiSystem tools and cordless machines, helping keep shrouds, guards and housings firmly attached. This OEM part (OEM No. 9022 346 1069) is engineered for accurate fitment and consistent performance, making it a dependable choice for routine maintenance or repairs where a damaged or missing screw needs replacing.
Key Features:
- Genuine Stihl part for assured compatibility and fit
- Precision splined drive for strong torque transfer and reduced cam-out
- Steel construction for dependable strength under vibration
- Stable fastening to help prevent loosening in service
- Consistent thread quality for smooth installation and removal
- Suitable for maintenance or part replacement across multiple Stihl machines
- OEM specification for reliability and long service life
- Simple to fit using the correct matching spline driver
Typical Applications:
Used to replace worn, stripped or missing screws on Stihl machines during servicing, part swaps and repairs. Commonly applied to secure covers, guards, housings and ancillary fittings on brushcutters and compatible handheld tools, restoring safe, rattle-free operation.
Also known as:
Splined drive screw, retaining fastener, mounting screw, securing bolt, drive-spline bolt, housing screw, machine fastener.
Fits Models:
FS 56, FS 56 C, FS 56 R, FS 70 C, FS 70 R, FS 70 RC, FS 120, FS 200, FS 250, FS 300, FS 350, FS 380, FSA 90, FSA 130, HL 56 K, HL 91 K, HL 91 KC, HL 94, HL 94 C, HL 94 K, HL 94 KC, HL-KM 0 deg, HS 87, KA 120, KA 120 R, KA 250, KM 56 C, KM 56 RC, MM 56
Alternate Part Numbers:
9022-346-1069, 90223461069
Product Specifications
| L&S Part No. | 9022 346 1069 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223461069 |
| Unit of Sale | 1 |
| Applications | FS 120, FS 200, FS 250, FS 300, FS 350, FS 380, FS 56, FS 56 C, FS 56 R, FS 70 C, FS 70 R, FS 70 RC, FS120, FS200, FS250, FS300, FS350, FS380, FS56, FS56C, FS56R, FS70C, FS70R, FS70RC, FSA 130, FSA 90, FSA130, FSA90, HL 56 K, HL 91 K, HL 91 KC, HL 94, HL 94 C, HL 94 K, HL 94 KC, HL-KM 0 deg, HL56K, HL91K, HL91KC, HL94, HL94C, HL94K, HL94KC, HS 87, HS87, KA 120, KA 120 R, KA 250, KA120, KA120R, KA250, KA250 Attachment, KM 56 C, KM 56 RC, KM56C, KM56RC, MM 56, MM 56 MultiSystem, MM56 |
| Machine Type | Brushcutters, Long Reach Hedgetrimmers |
| Fits Brands | Stihl |
| Fits Models | FS56, FS56C, FS56R | FS120, FS200, FS250 | FS300, FS350, FS380 | FS70C, FS70R, FS70RC | KM56C, KM56RC | HL-KM 0 deg | KA120, KA120R, KA250 Attachment | MM 56 MultiSystem | HL56K | HL91K, HL91KC | HL94, HL94C, HL94K, HL94KC | HS87 | BRA500 | BRA600 | FSA90 | FSA130 | HL 0° |
