Description
Overview:

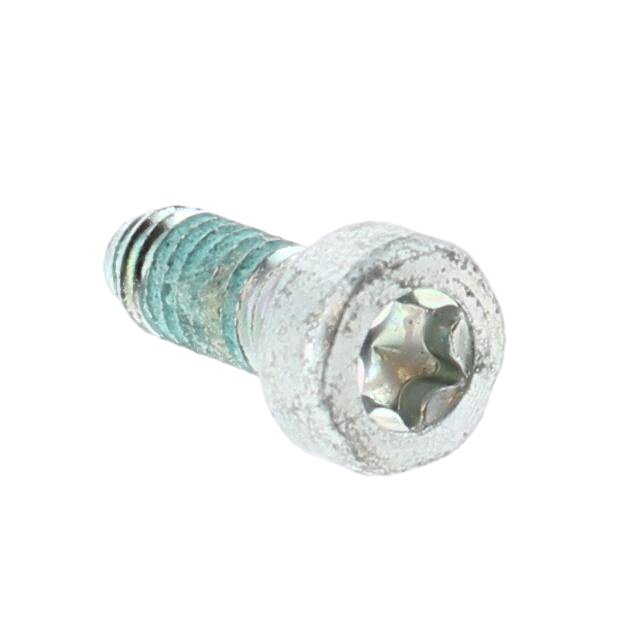

The Spline Screw IS-M4x10-8.8 is a genuine Stihl fastener designed for securing assemblies on selected chainsaws and power tools. Made from property class 8.8 hardened steel for dependable strength, it features an internal spline drive for positive tool engagement in vibration-prone applications. The size is M4 x 10 mm (approximately 0.16 x 0.39 inches). Specified by Stihl for models such as the MS 382 and MS 461, it is also used across other compatible machines listed below. This screw helps maintain correct clamping force on covers, brackets and housings so your machine operates reliably. Supplied to Stihl OEM No. 9022 313 0651 for straightforward identification and like-for-like replacement. Its short 10 mm length helps prevent bottoming in blind holes, while precision threads support consistent torque settings during servicing.
Key Features:
- Genuine Stihl part for assured fit and performance
- OEM reference: 9022 313 0651
- Property class 8.8 hardened steel for high tensile strength and durability
- Internal spline drive head for secure engagement and reduced cam-out
- Metric size M4 x 10 mm (approx. 0.16 x 0.39 in) for easy identification
- Suited to high-vibration use on chainsaws and cut-off machines
- Clean, accurate thread for smooth installation and removal
- Reliable clamping for covers, guards and small assemblies
- Compatible across multiple Stihl models to simplify spares stocking
Typical Applications:
Used to fasten small covers, guards, handle or filter housings, accessory brackets and similar components on the listed Stihl machines. Common during bar and chain servicing, clutch or sprocket cover removal, AV mount inspection, and maintenance of cut-off saw attachments. Suitable wherever an M4 x 10 mm internal-spline machine screw is specified.
Also known as:
Internal spline screw, star-drive screw, M4 x 10 mm machine screw, M4 bolt, metric fixing, fastener, cap screw, retaining screw, assembly screw. Sometimes called a spline head bolt in parts lists.
Fits Models:
FBD-KM, FBDKM, GS 461, GS461, MS 382, MS 461, MS 651, MS 661, MS 661 C, MS382, MS461, MS651, MS661, MS661C, MSA 300, MSA 300 C, MSA300, MSA300C, TSA 300, TSA300
Alternate Part Numbers:
9022-313-0651, 90223130651
Product Specifications
| L&S Part No. | 9022 313 0651 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223130651 |
| Unit of Sale | 1 |
| Machine Type | Chainsaws |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl part, OEM No. 9022 313 0651 - Property class 8.8 hardened steel for strength - Internal spline drive for secure tool engagement - Metric size M4 x 10 mm for precise fit - Compatible with multiple Stihl chainsaw models |
| Fits Models | MS382 | MS461 | MS651 | MS661, MS661C | FBD-KM | GS461 | TSA300 | MSA300 / MSA300C |
