Description
Overview:

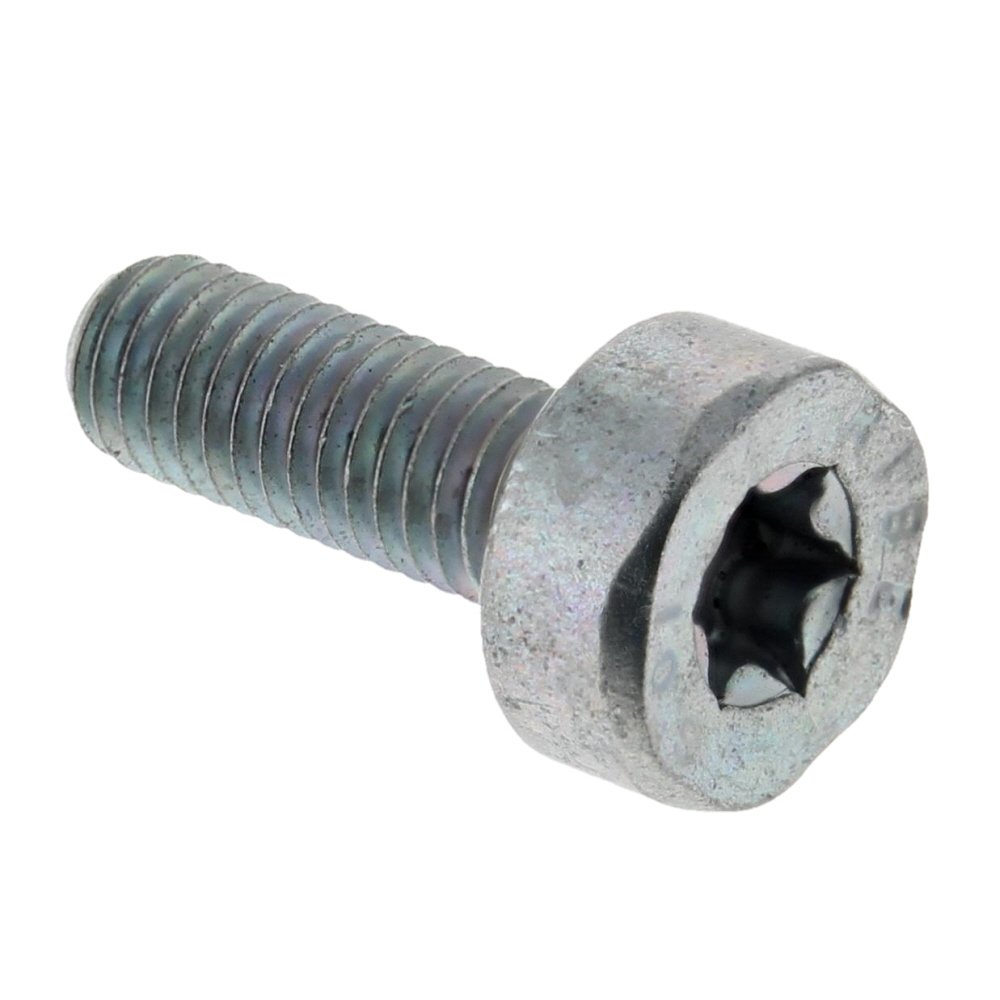

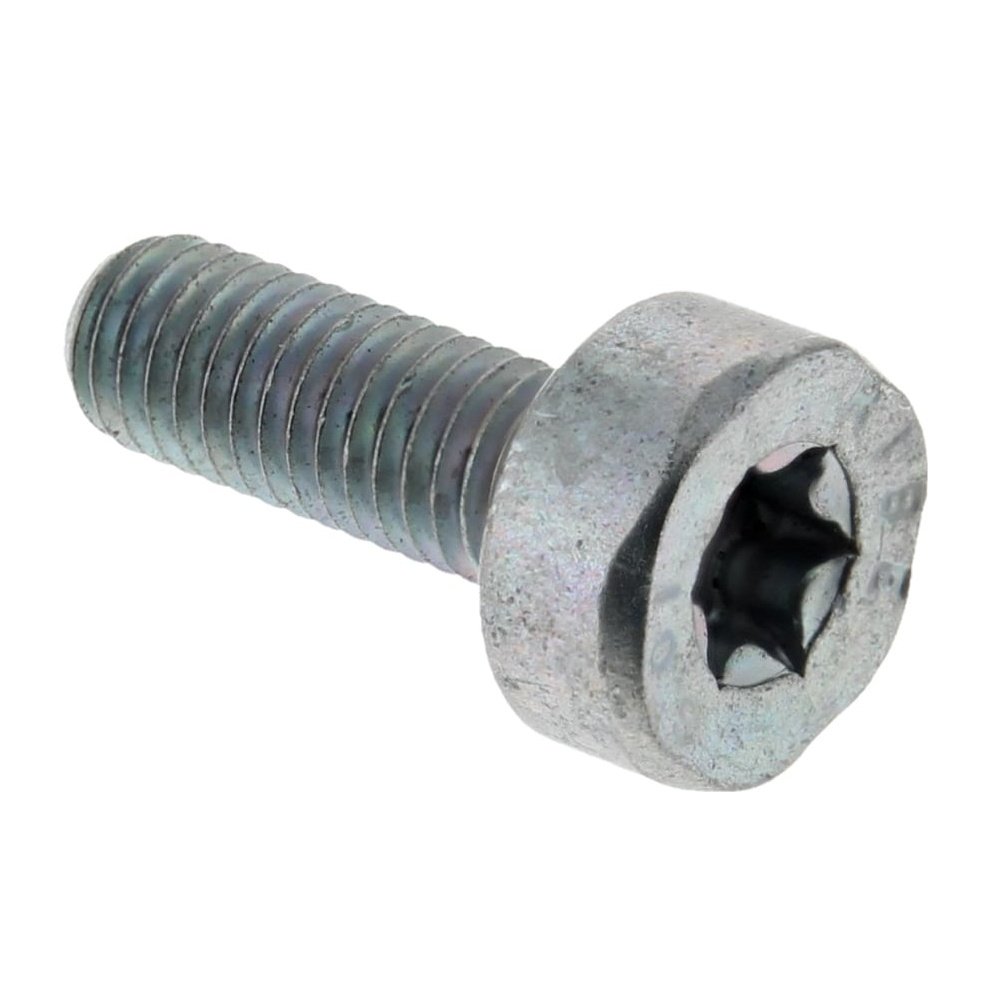

The Spline Screw IS‐M5x14 is a genuine Stihl fastener engineered for secure assembly across selected Stihl machines, including the FS 96 and FS 160 brushcutters. It features a metric M5 thread with a 14 mm length and an internal spline (star) drive for positive tool engagement. Manufactured from durable steel with a robust black finish, this screw is designed to cope with vibration and frequent use in outdoor and construction environments. It is used to fasten components such as housings, guards, brackets, and other assemblies where a compact, reliable fixing is required. Supplied to Stihl specification under part number 9022 341 0975, it helps maintain correct fit, alignment, and safe operation of compatible petrol and battery-powered tools.
Key Features:
- Genuine Stihl part for assured fit and compatibility
- M5 x 14 mm machine screw with internal spline drive for secure torque transfer
- Durable steel construction with a hard-wearing black finish
- Resists loosening under vibration common to brushcutters and handheld power tools
- Clean, precise thread for consistent tightening and repeatable assembly
- Compact length aids clearance in tight assemblies without bottoming out
- Supports correct alignment of guards, housings, and handle components
- Easy to install and remove with the appropriate spline/star driver
- Suitable for routine maintenance or like-for-like replacement in mixed machine fleets
- Helps preserve equipment integrity and reduces the risk of stripped fasteners
Typical Applications:
Securing shrouds, gear housings, guard fixings, handle brackets, and other structural or protective parts on compatible Stihl brushcutters, hedge trimmers, pole pruners, chainsaws, and cut-off saws. Ideal where a compact, vibration-resistant M5 fastener is required for reliable, repeatable assembly.
Also known as:
Internal spline screw, star-drive screw, IS-M5x14 screw, M5 x 14 mm machine screw, metric cap screw, metric bolt, fastening screw for Stihl equipment.
Fits Models:
FS 96, FS 160, FS 180, FS 220, FS 220 K, FS 280, FS 280 K, FS 290, FS 56, FS 56 C, FS 56 R, FS 56 RC, FS 360, FS 360 C, FS 410 C, FS 420, FS 420 L, FS 120, FS 200, FS 250, HL 92 C, HL 92 KC, HL 94, HL 94 C, HL 94 K, HL 94 KC, HLA 85, HLA 85 Hedge, HTA 150.0, HTA 65, HTA 85, MSA 220 T, MSA 220 TC, TS 460
Alternate Part Numbers:
9022-341-0975, 90223410975
Product Specifications
| L&S Part No. | 9022 341 0975 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223410975 |
| Unit of Sale | 1 |
| Applications | FS 120, FS 160, FS 180, FS 200, FS 220, FS 220 K, FS 250, FS 280, FS 280 K, FS 290, FS 360, FS 360 C, FS 410 C, FS 420, FS 420 L, FS 56, FS 56 C, FS 56 R, FS 56 RC, FS 96, FS120, FS160, FS180, FS200, FS220, FS220K, FS250, FS280, FS280K, FS290, FS360, FS360C, FS410C, FS420, FS420L, FS56, FS56C, FS56R, FS56RC, FS96, HL 92 C, HL 92 KC, HL 94, HL 94 C, HL 94 K, HL 94 KC, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HLA 85, HLA 85 Hedge, HLA85, HTA 150.0, HTA 65, HTA 85, HTA150.0, HTA1500, HTA65, HTA85, MSA 220 T, MSA 220 TC, MSA220T, MSA220TC, TS 460, TS460 |
| Machine Type | Brushcutters, Hedgetrimmers, Pole Pruners, Chainsaws, Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS460 | FS56, FS56C, FS56R | FS220, FS280, FS290 | FS360C FS410C | FS360, FS420, FS420L (older models) | HTA65 | HL92C, HL92KC | HL94, HL94C, HL94K, HL94KC | FS120, FS200, FS250 | FS160, FS180 | HLA 85 Hedge | HTA 85 | HTA 150.0 | MSA220T | MSA220TC | KMA200R |
