Description
Overview:

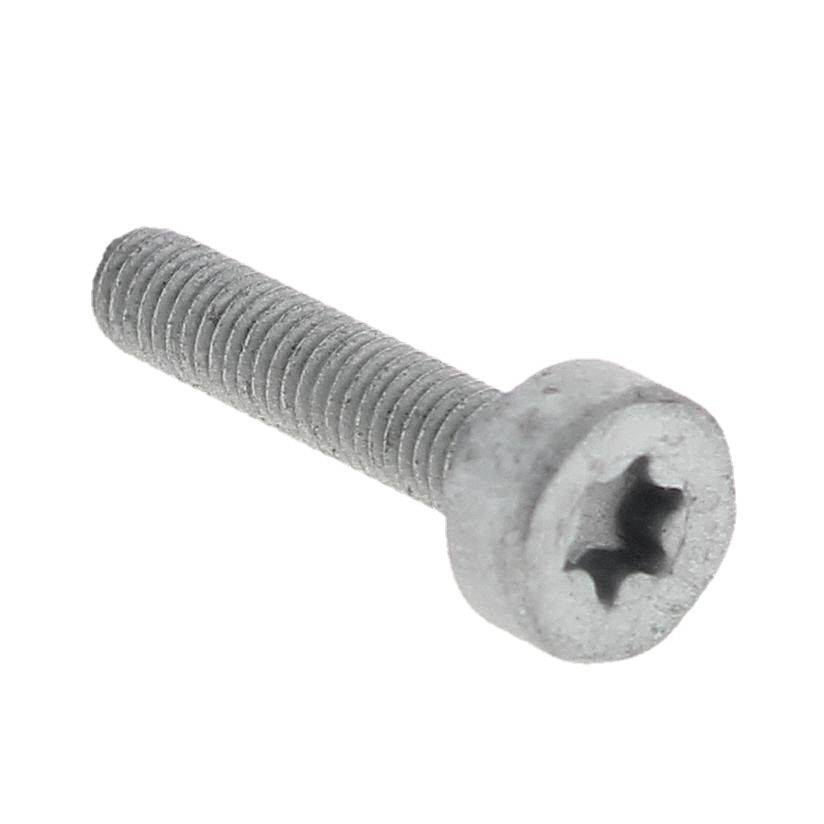

The Spline Screw IS-M5x23-12.9 is a genuine Stihl fastener designed for secure assembly on selected Stihl machines, including the MS 241 C chainsaw and FS 230 brushcutter. Manufactured from high-tensile 12.9-grade steel, it offers strong clamping force and long service life in high-vibration environments. The internal spline drive provides positive engagement with the matching driver for controlled tightening and reduced risk of cam-out. Its size is M5 x 23 mm (approximately 0.20 in diameter x 0.91 in length), making it suitable for factory threaded locations that specify this exact fixing. Ideal as a like-for-like replacement during maintenance or repairs, it helps keep your equipment reliable and safe to use.
Key Features:
- Genuine Stihl part for assured fit and performance
- High-tensile 12.9-grade steel for strength and durability
- Internal spline drive for secure torque transfer and reduced rounding
- Precise M5 x 23 mm size (approximately 0.20 in x 0.91 in) for correct seating
- Suitable for demanding, high-vibration applications
- Clean, accurate threads for consistent installation and removal
- Helps maintain original equipment specification and reliability
- Straightforward to fit with the appropriate spline/driver tool
Typical Applications:
Used to fasten key components on compatible Stihl chainsaws and brushcutters, such as covers, guards, housings, and bracketry where an M5 x 23 mm internal-spline screw is specified. Suitable for routine servicing, part replacement, or repairs to restore secure fixings and maintain operational safety.
Also known as:
M5 machine screw, spline-head screw, internal-spline screw, star-drive screw, high-tensile screw, cap screw, bolt, fastener.
Fits Models:
FS 230, FS230, MS 241 C, MS241C
Alternate Part Numbers:
9022-371-1026, 90223711026
Product Specifications
| L&S Part No. | 9022 371 1026 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223711026 |
| Unit of Sale | 1 |
| Machine Type | Brushcutters, Chainsaws |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl part ensures correct fit and performance - High-tensile 12.9-grade steel for durability - Internal spline drive reduces cam-out risk - M5 x 23 mm size for precise fit - Suitable for high-vibration applications |
| Fits Models | MS241C | FS230 |
