Description
Overview:

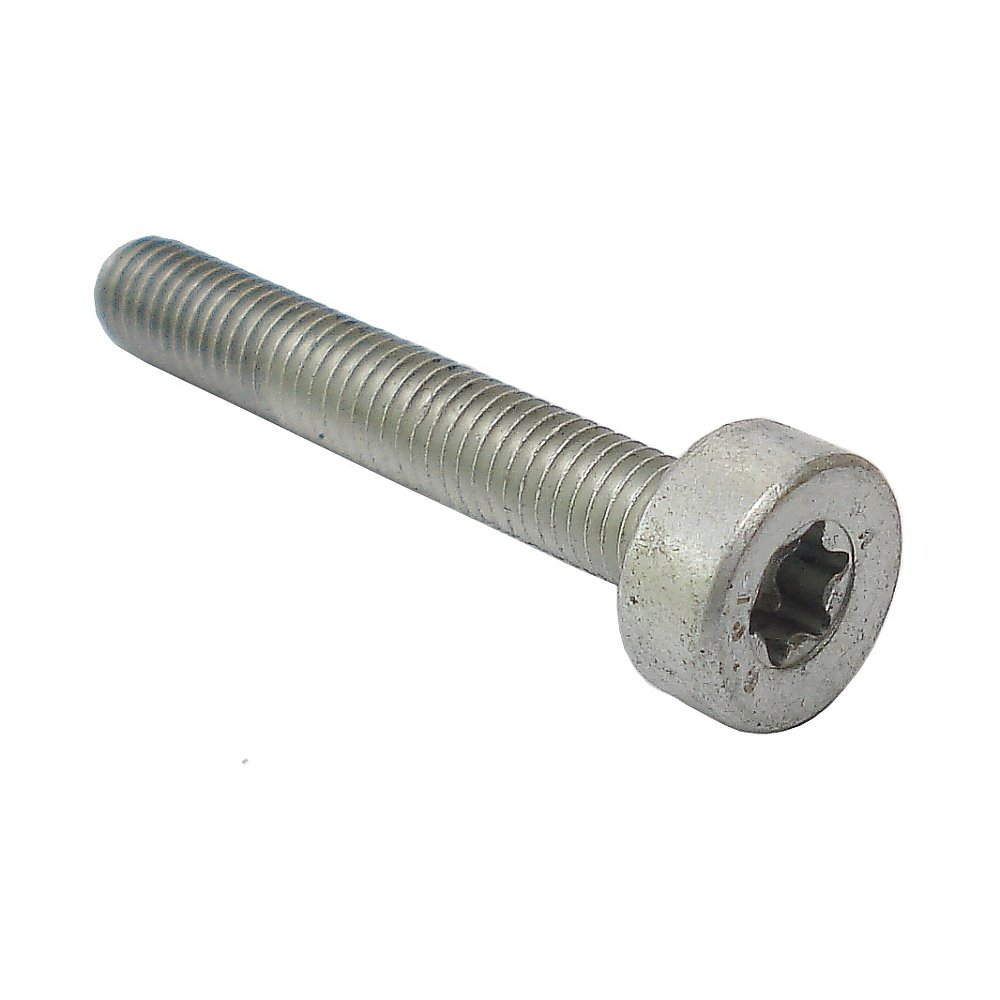

The Spline Screw IS‐M5x28 is a genuine Stihl fastener designed for secure, repeatable fixing in high‐vibration power tools. Made from durable steel with an internal spline (Torx‐style) drive, it helps prevent cam‐out and maintains a firm hold in service. Sized M5 x 28 mm (approx. 0.20 in x 1.10 in), it is commonly used to secure covers, casings, brackets and assemblies on Stihl machinery, including chainsaws and brushcutters. It is a direct fit for models such as the 036QS and MS270 and is specified by Stihl under part number 9022 341 0900. This OEM screw supports reliable maintenance and repairs by matching the original length, thread and drive profile required across a wide range of Stihl tools.
Key Features:
- Genuine Stihl part for assured fit and compatibility
- Internal spline (Torx‐style) drive for strong engagement and reduced cam‐out
- Durable steel construction suited to demanding outdoor use
- M5 x 28 mm size (approx. 0.20 in x 1.10 in) for common Stihl fixings
- Stable under vibration when installed to correct torque
- Clean head profile for easy access in tight housings
- Consistent clamping force to help maintain alignment of components
- Suitable across chainsaws, brushcutters, earth augers and cut‐off saws
- Replaces Stihl part numbers 9022‐341‐0900 and 90223410900
Typical Applications:
Securing plastic and metal covers, handle frames, guards, gearcase housings, starter and clutch covers, and other subassemblies on Stihl chainsaws, brushcutters, clearing saws, earth augers and cut‐off saws used in forestry, landscaping, construction and grounds maintenance.
Also known as:
Internal spline screw, Torx screw, M5 x 28 mm machine screw, cap screw, bolt, fixing, fastener, OEM screw for Stihl equipment.
Fits Models:
028, 028AV, 036QS, 08S, BT 130, BT 130 Z, BT 131, BT 360, FR230, FR230T, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS111, FS111R, FS111RX, FS230, FS36, FS360, FS360C, FS40, FS40C, FS410C, FS420, FS420L, FS44, FS490C, FS50, FS500, FS50C, FS510C, FS550, FS550L, FS560C, MS270, MS270C, MS280, MS280C, MS360, MS360C, MS780, MS880, MS881, P835, P840, TS350, TS350AVE, TS360
Alternate Part Numbers:
9022-341-0900, 90223410900
Product Specifications
| L&S Part No. | 9022 341 0900 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223410900 |
| Unit of Sale | 1 |
| Applications | 028, 028AV, 036QS, 08S, BT 130, BT 130 Z, BT 131, BT 360, BT130, BT130Z, BT131, BT360, FR230, FR230T, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS111, FS111R, FS111RX, FS230, FS36, FS360, FS360C, FS40, FS40C, FS410C, FS420, FS420L, FS44, FS490C, FS50, FS500, FS50C, FS510C, FS550, FS550L, FS560C, MS270, MS270C, MS280, MS280C, MS360, MS360C, MS780, MS880, MS881, P835, P840, TS350, TS350AVE, TS360 |
| Machine Type | Chainsaws, Brushcutters, Trimmers, Augers, Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS350, TS360 | MS270, MS270C, MS280, MS280C | 028, 028AV | 08S | MS360, MS360C | FS36, FS40, FS44 | FS40, FS50 | FS100, FS110 | FS360C FS410C | FS500, FS550, FS550L | FS111, FS111R, FS111RX | FS360, FS420, FS420L (older models) | FS490C, FS510C, FS560C | FR230, FR230T | MS780 | MS880 | 036QS | FS230 | BT 130 | BT 131 | BT 360 | BT 130 Z | P835, P840 | MS881 | FS491 C-EM | FS561 C-EM | HT134 | HT |
