Description
Overview:

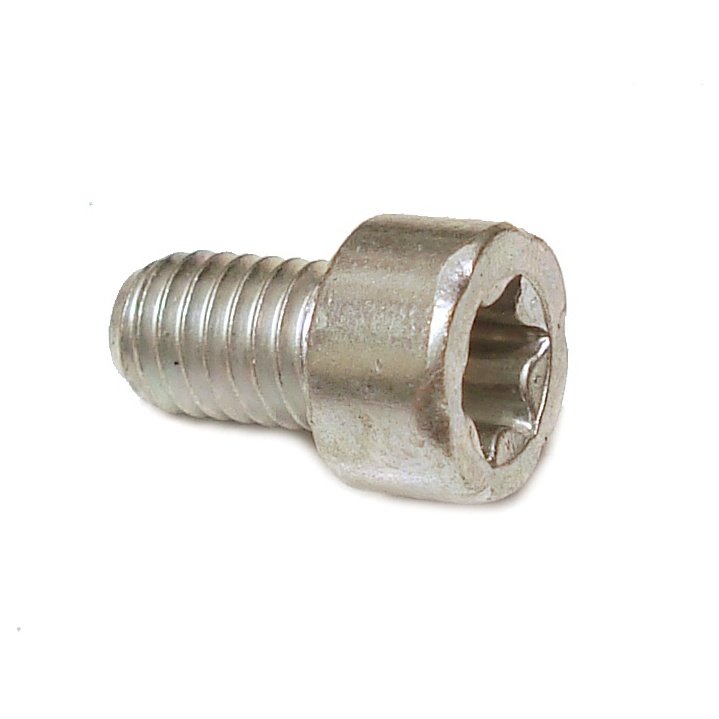

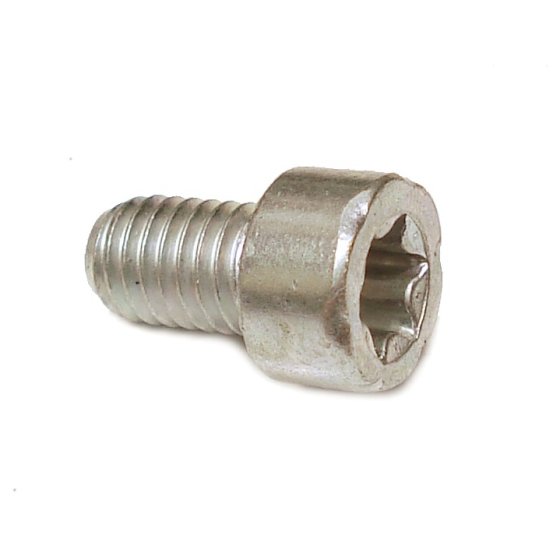

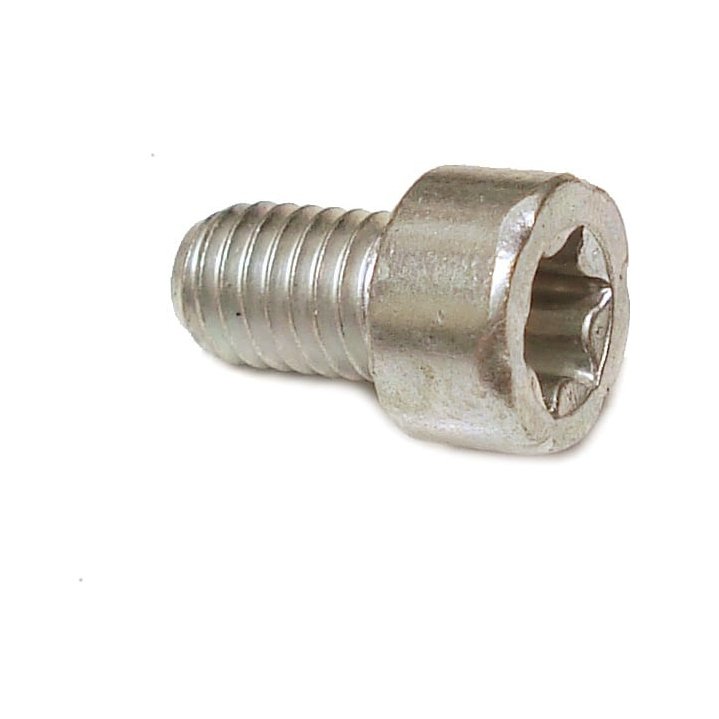

The Spline Screw IS‐M5x8 is a genuine Stihl fastener designed for secure, repeatable fixing in handheld garden and construction machinery. Made from durable steel with a corrosion‐resistant finish, it uses an internal spline drive for positive engagement and reduced cam‐out. Sized M5 x 8 mm (0.31 in), it suits assemblies where a compact machine screw is required without compromising strength. This OEM screw is commonly found in Stihl trimmers, brushcutters, hedge trimmers and cut‐off saws, helping to secure covers, guards, handles and drive components. It is a direct replacement referenced by OEM Part No. 9022 313 0930 and fits popular models such as the FSE71 and FS38, restoring a correct fit where original fixings have worn, corroded or been lost during servicing.
Key Features:
- Genuine Stihl part for assured fit and performance (Brand: Stihl)
- Size: M5 x 8 mm length (0.31 in) machine screw for compact fittings
- Internal spline drive for secure grip and reduced head wear
- Steel construction with a corrosion‐resistant finish for durability
- Holds firm under vibration typical of two‐stroke tools when correctly tightened
- Precise threads for clean engagement in OEM housings and inserts
- Straightforward to fit; ideal for routine maintenance and fast replacements
- OEM reference 9022 313 0930 for easy identification and ordering
Typical Applications:
Securing shrouds, guards, starter housings, handle assemblies, gearcase covers and accessory brackets on Stihl trimmers, brushcutters, hedge trimmers and cut‐off saws. Suitable for replacing missing or damaged screws during servicing, overhauls or collision repairs where a compact M5 x 8 mm (0.31 in) internal‐spline fastener is specified.
Also known as:
Internal spline screw, spline‐drive machine screw, M5x8 bolt, M5x8 fixing, fastener, cap screw, OEM fixing screw.
Fits Models:
FC 73, FC 83, FC73, FC83, FR125, FR135, FR145, FS160, FS180, FS220, FS220K, FS280, FS280K, FS290, FS300, FS350, FS36, FS38, FS380, FS40, FS400, FS40C, FS44, FS45, FS450, FS45C, FS45L, FS46, FS46C, FS480, FS50, FS50C, FS83, FS83T, FSE60, FSE71, FSE81, FW20, FW20 Cart, HL73, HL73K, HT73, TE 1000, TE 600al, TE 700, TE1000, TE600al, TE700
Alternate Part Numbers:
9022-313-0930, 90223130930
Product Specifications
| L&S Part No. | 9022 313 0930 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223130930 |
| Unit of Sale | 1 |
| Applications | FC 73, FC 83, FC73, FC83, FR125, FR135, FR145, FS160, FS180, FS220, FS220K, FS280, FS280K, FS290, FS300, FS350, FS36, FS38, FS380, FS40, FS400, FS40C, FS44, FS45, FS450, FS45C, FS45L, FS46, FS46C, FS480, FS50, FS50C, FS83, FS83T, FSE60, FSE71, FSE81, FW20, FW20 Cart, HL73, HL73K, HT73, TE 1000, TE 600al, TE 700, TE1000, TE600al, TE700 |
| Machine Type | Brushcutters, Trimmers |
| Fits Brands | Stihl |
| Fits Models | FS36, FS40, FS44 | FS38, FS45, FS46 | FS40, FS50 | FS83, FS83T | FS220, FS280, FS290 | FS300, FS350, FS380 | FS400, FS450, FS480 | FW20 Cart | FSE60 | FSE71 | FSE81 | FS160, FS180 | FR125, FR135, FR145 | HT73 | FC 73 | FC 83 | HL73, HL73K | TE 600al | TE 700 | TE 1000 |
