Description
Overview:

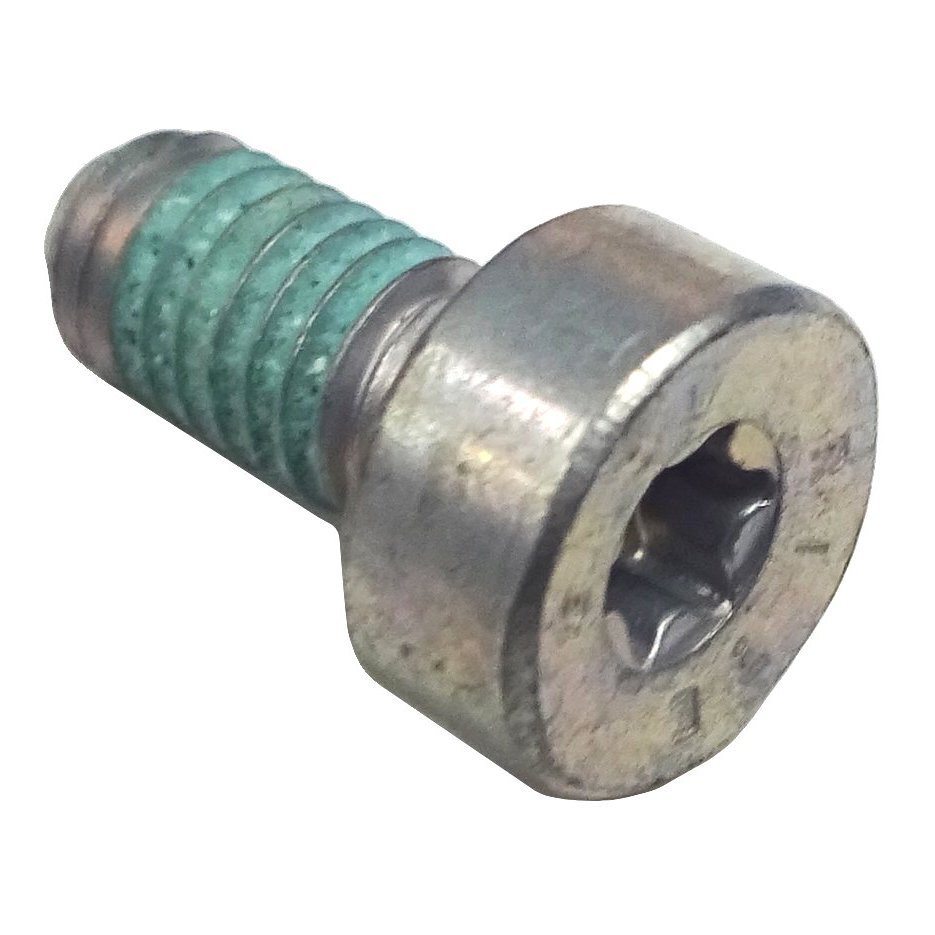

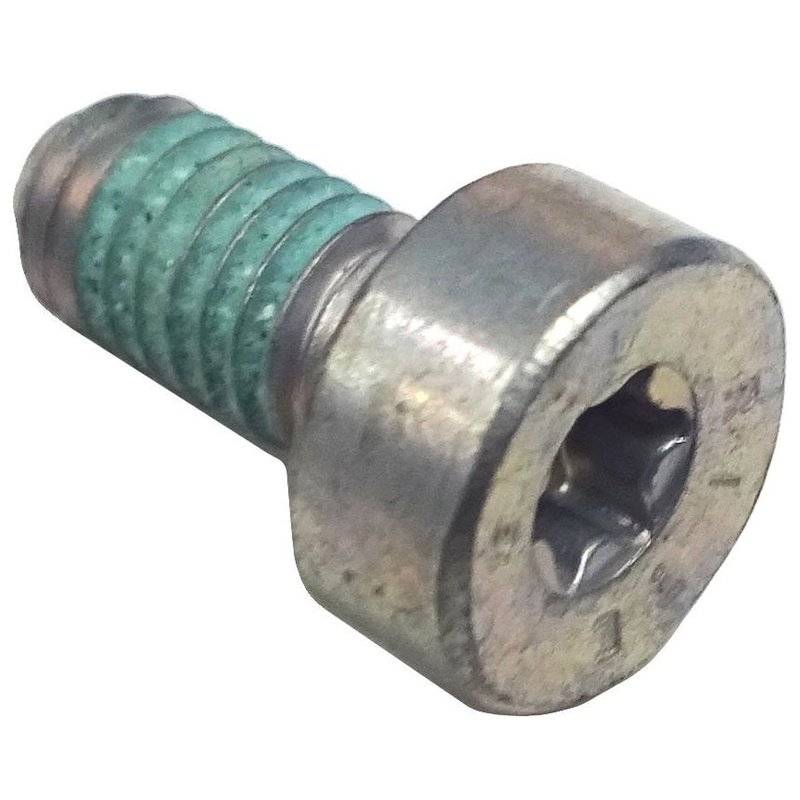

The Spline Screw IS‐M6x12 is a genuine Stihl part for securing components on Stihl machinery, including iMOW 7.0 and iMOW 6.0 robotic mowers. Made from robust steel, it features an internal spline (Torx‐style) drive for positive tool engagement and dependable clamping under vibration. With an M6 thread and 12 mm length, it suits compact mounting points where a low‐profile fixing is needed. This OEM screw helps maintain correct fit and reliability across supported platforms, making it a sensible replacement during routine servicing and repairs. Genuine Stihl quality supports long service life and consistent performance in outdoor conditions. Stihl Part No. 9022 346 1260.
Key Features:
- Genuine Stihl part for assured compatibility and fitment
- M6 x 12 mm size for common fixing points on Stihl machines
- Internal spline (Torx‐style) drive for high torque transfer and reduced cam‐out
- Steel construction for strength and dependable fastening under vibration
- Precise threads for secure assembly and repeatable servicing
- Suitable for iMOW robotic mowers and selected Stihl brushcutters and MultiSystem tools
- Easy to fit with the correct matching spline/Torx bit
- Helps maintain equipment integrity and safe operation
Typical Applications:
Used to fasten covers, brackets, guards, modules, and other assemblies on Stihl iMOW robotic mowers and compatible hand‐held tools. Ideal for repair and maintenance tasks where a compact, strong M6 fixing is required, especially in vibration‐prone areas. Suitable for replacing missing or damaged screws during routine servicing.
Also known as:
M6x12 spline-drive screw, Torx machine bolt, internal-star screw, M6x12 cap screw, metric fixing, spline fastener, M6 machine screw.
Fits Models:
BC-KM, BCKM, BF-KM, BF-MM, BFKM, BFMM, BK-MM, BKMM, FC-MM, FCMM, FS 510 C-EM, FS 560 C-EM, FS 561 C-EM, FS 561.0 C-EM, FS490C, FS510C, FS510C-EM, FS560C, FS560C-EM, FS561.0C-EM, FS561C-EM, IMOW50, IMOW60, IMOW70, MF-MM, MFMM, RL-MM, RLMM, iMOW 5.0, iMOW 5.0 EVO, iMOW 6.0, iMOW 6.0 EVO, iMOW 7.0, iMOW 7.0 EVO, iMOW 7.0 PRO, iMOW5.0, iMOW5.0 EVO, iMOW6.0, iMOW6.0 EVO, iMOW7.0, iMOW7.0 EVO, iMOW7.0 PRO
Alternate Part Numbers:
9022-346-1260, 90223461260
Product Specifications
| L&S Part No. | 9022 346 1260 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223461260 |
| Unit of Sale | 1 |
| Applications | BC-KM, BCKM, BF-KM, BF-MM, BFKM, BFMM, BK-MM, BKMM, FC-MM, FCMM, FS 510 C-EM, FS 560 C-EM, FS 561 C-EM, FS 561.0 C-EM, FS490C, FS510C, FS510C-EM, FS560C, FS560C-EM, FS561.0C-EM, FS561C-EM, IMOW50, IMOW60, IMOW70, MF-MM, MFMM, RL-MM, RLMM, iMOW 5.0, iMOW 5.0 EVO, iMOW 6.0, iMOW 6.0 EVO, iMOW 7.0, iMOW 7.0 EVO, iMOW 7.0 PRO, iMOW5.0, iMOW5.0 EVO, iMOW6.0, iMOW6.0 EVO, iMOW7.0, iMOW7.0 EVO, iMOW7.0 PRO |
| Machine Type | Mowers, Brushcutters |
| Fits Brands | Stihl |
| Fits Models | FS490C, FS510C, FS560C | BC-KM, BF-KM | iMOW 5.0 | iMOW 5.0 EVO | iMOW 6.0 | iMOW 6.0 | iMOW 7.0 | iMOW 7.0 EVO | FS561 C-EM | BK-MM | FC-MM | MF-MM | RL-MM | iMOW 7.0 PRO |
