Description
Overview:

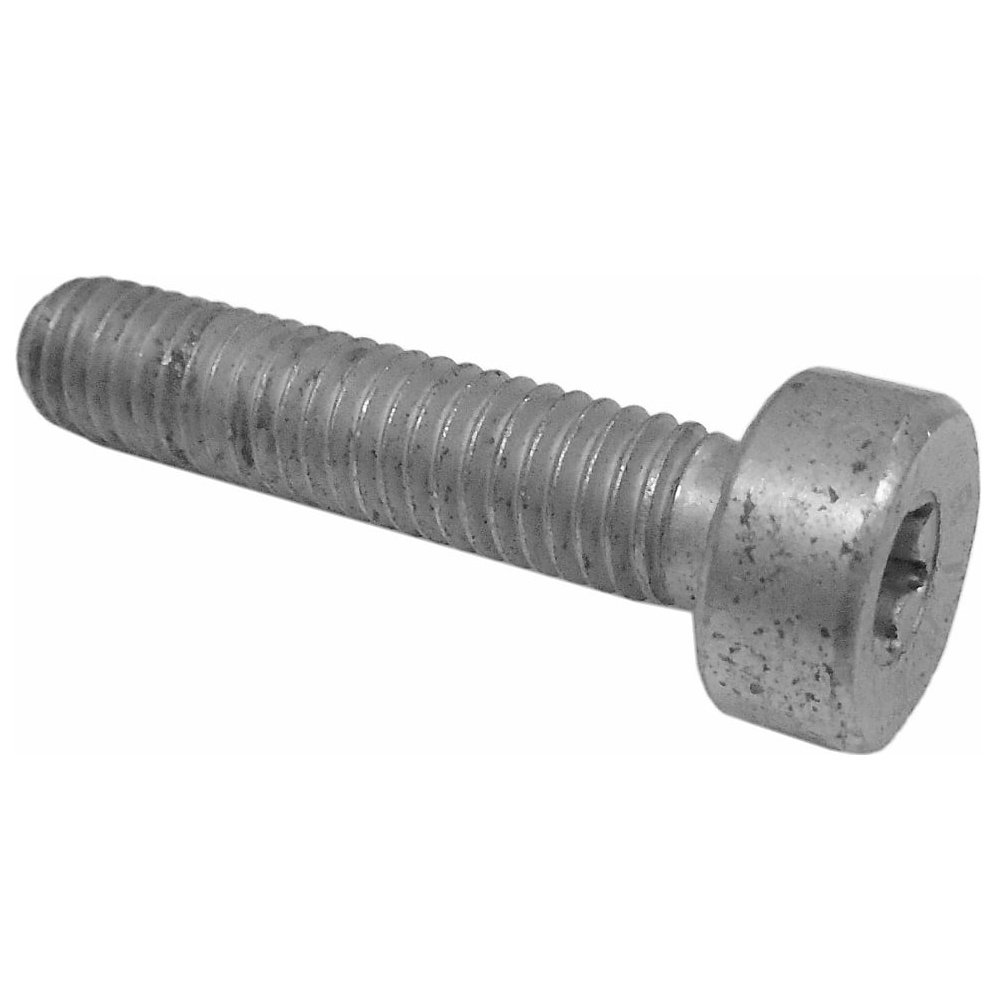

The Spline Screw M6x28 is a genuine Stihl OEM fastener designed for secure assembly on Stihl machinery, including backpack sprayers such as the SR430 and SR450. Manufactured from durable steel, it features an M6 thread with a 28 mm shaft length (approximately 1.10 in) for dependable clamping strength. The spline-drive head provides firm tool engagement for consistent torque and reduced risk of cam-out during fitting and removal. This screw is commonly used to hold covers, frames, guards, and other serviceable components in place, helping equipment withstand vibration and regular use. Supplied to Stihl specification for correct fit and longevity, it supports straightforward maintenance and reliable repairs. Manufacturer Part Number (MPN): 9022 341 1358.
Key Features:
- Genuine Stihl OEM part for assured compatibility and fit
- M6 x 28 mm dimensions (approx 1.10 in length) for common Stihl assemblies
- Spline-drive head for secure grip and controlled torque application
- Durable steel construction for long service life under vibration
- Precise thread form to protect mating components and maintain clamping force
- Suitable for routine maintenance or replacing worn or missing fasteners
- Helps restore factory build quality across compatible Stihl machines
Typical Applications:
Used to fasten covers, handles, frames, guards, and bracketed parts on Stihl backpack sprayers and other compatible equipment. Ideal when carrying out servicing, refurbishment, or part replacement where an M6 x 28 mm spline-drive screw is specified, ensuring assemblies remain tight and reliable in daily professional or DIY use.
Also known as:
M6 x 28 bolt, spline-drive screw, star-drive screw, machine screw, fixing screw, retaining screw, M6 fastener, metric screw (28 mm), service screw for Stihl assemblies.
Fits Models:
BR350, BR430, BR450, BR450C, FBD-KM, FBDKM, FC 100, FC 111, FC 90, FC 91, FC100, FC111, FC90, FC91, FC95, FC96, FCS-KM, FCSKM, FR350, FR450, FR480, FR480C, MS500i, SR 430, SR 430-Z, SR 440, SR 450, SR 450-Z, SR430, SR430Z, SR440, SR450, SR450Z, TS700, TS800
Alternate Part Numbers:
9022-341-1358, 90223411358
Product Specifications
| L&S Part No. | 9022 341 1358 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223411358 |
| Unit of Sale | 1 |
| Applications | BR350, BR430, BR450, BR450C, FBD-KM, FBDKM, FC 100, FC 111, FC 90, FC 91, FC100, FC111, FC90, FC91, FC95, FC96, FCS-KM, FCSKM, FR350, FR450, FR480, FR480C, MS500i, SR 430, SR 430-Z, SR 440, SR 450, SR 450-Z, SR430, SR430Z, SR440, SR450, SR450Z, TS700, TS800 |
| Machine Type | Backpack Blowers, Brushcutters, Lawn Edgers, Backpack Sprayers, Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS700 | BR350, BR430, BR450 | FR350, FR450, FR480, FR480C | TS800 | FBD-KM | FCS-KM | FC 90, 95 | FC 100 | FC 111 | SR 430, SR 450 | SR 430-Z | SR 440 | SR 450-Z | FC 91, 96 | MS500i | BR430 | BR450, BR450C | RGA140 | RG-KM | RG |
