Description
Overview:

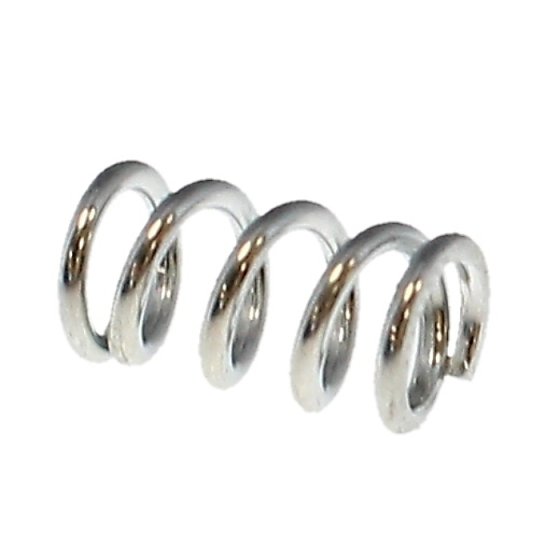

This Genuine Stihl spring (part no. 1120 122 3005) is an OEM replacement coil made from high‐grade spring steel. It restores and maintains correct tension within the specified mechanism on compatible machines, helping controls return smoothly and components operate as designed. Suitable for a wide range of Stihl handheld tools, including popular chainsaws such as MS360C and MS200T, it is also used across certain trimmers, brushcutters, hedge trimmers and other equipment in the Stihl range. Replacing a tired or distorted spring helps prevent poor return action, rough running and unnecessary wear on connected parts. Built for reliability and long service life, this small but essential component supports safe, consistent operation for both professional users and home owners maintaining their own machines.
Key Features:
- Genuine Stihl OEM part for fit and performance you can trust
- Precision-formed spring steel for stable, repeatable tension over time
- Helps controls and linkages return correctly to reduce erratic operation
- Supports smooth starting and running where specified by the model design
- Direct replacement for the original part; straightforward to install with basic tools
- Durable construction resists fatigue and deformation in regular use
- Suitable across a broad range of Stihl chainsaws and handheld machines
- Helps prolong the life of adjacent components by maintaining proper tension
Typical Applications:
Used to maintain or restore the correct return action and tension in the designated assembly on compatible Stihl equipment. Common tasks include keeping throttles, linkages or other return mechanisms operating smoothly on chainsaws, brushcutters and trimmers. Ideal for routine maintenance when a spring has weakened, become lost, or no longer provides consistent tension, helping keep cutting, trimming and clearing work safe and efficient.
Also known as:
Return spring, tension spring, control spring, coil spring, linkage spring, saw spring, small engine spring, OEM Stihl spring.
Fits Models:
009, 010, 011, 012, 019T, 020, 020T, 021, 023, 025, 034, 036, 036QS, 044, 070, 08S, 090, 090G, BG75, BR106, FC 73, FC 75, FC73, FC75, FR106, FR108, FR125, FR135, FR145, FR85, FR85T, FS106, FS108, FS120, FS120R, FS160, FS180, FS200, FS200R, FS220, FS250, FS280, FS290, FS300, FS350, FS380, FS400, FS450, FS480, FS75, FS80, FS80R, FS85, FS85R, FS85RX, FS85T, HL75, HL75K, HS75, HS80, HS85, HT70, HT70K, HT75, MS190T, MS191T, MS200, MS200T, MS230, MS230C, MS250, MS250C, MS340, MS360, MS360C, MS440, MS720, SP80, SP80K
Alternate Part Numbers:
1120-122-3005, 11201223005
Product Specifications
| L&S Part No. | 1120 122 3005 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 11201223005 |
| Unit of Sale | 1 |
| Applications | 009, 010, 011, 012, 019T, 020, 020T, 021, 023, 025, 034, 036, 036QS, 044, 070, 08S, 090, 090G, BG75, BR106, FC 73, FC 75, FC73, FC75, FR106, FR108, FR125, FR135, FR145, FR85, FR85T, FS106, FS108, FS120, FS120R, FS160, FS180, FS200, FS200R, FS220, FS250, FS280, FS290, FS300, FS350, FS380, FS400, FS450, FS480, FS75, FS80, FS80R, FS85, FS85R, FS85RX, FS85T, HL75, HL75K, HS75, HS80, HS85, HT70, HT70K, HT75, MS190T, MS191T, MS200, MS200T, MS230, MS230C, MS250, MS250C, MS340, MS360, MS360C, MS440, MS720, SP80, SP80K |
| Machine Type | Chainsaws, Brushcutters |
| Fits Brands | Stihl |
| Fits Models | MS230, MS230C | MS250, MS250C | MS200, MS200T | MS440 | 08S | MS340 | MS360, MS360C | 009 | FS75, FS80, FS85 | FS120, FS200, FS250 | FS220, FS280, FS290 | FS300, FS350, FS380 | FS400, FS450, FS480 | HS75 | BG75 | BR106 | FS106 | FS108 | FS160, FS180 | FR85T, FR85 | FR106 | FR125, FR135, FR145 | FR108 | 010, 011 | 012 | 019T | 020, 020T | 021, 023, 025 | 034 | MS720 | 036 | 036QS | 044 | 070 | 090, 090G | HT70, HT70K, HT75 | MS190T | MS191T | FC 73 | FC 75 | HL75, HL75K | HS80 | HS85 | SP 85 |
