Description

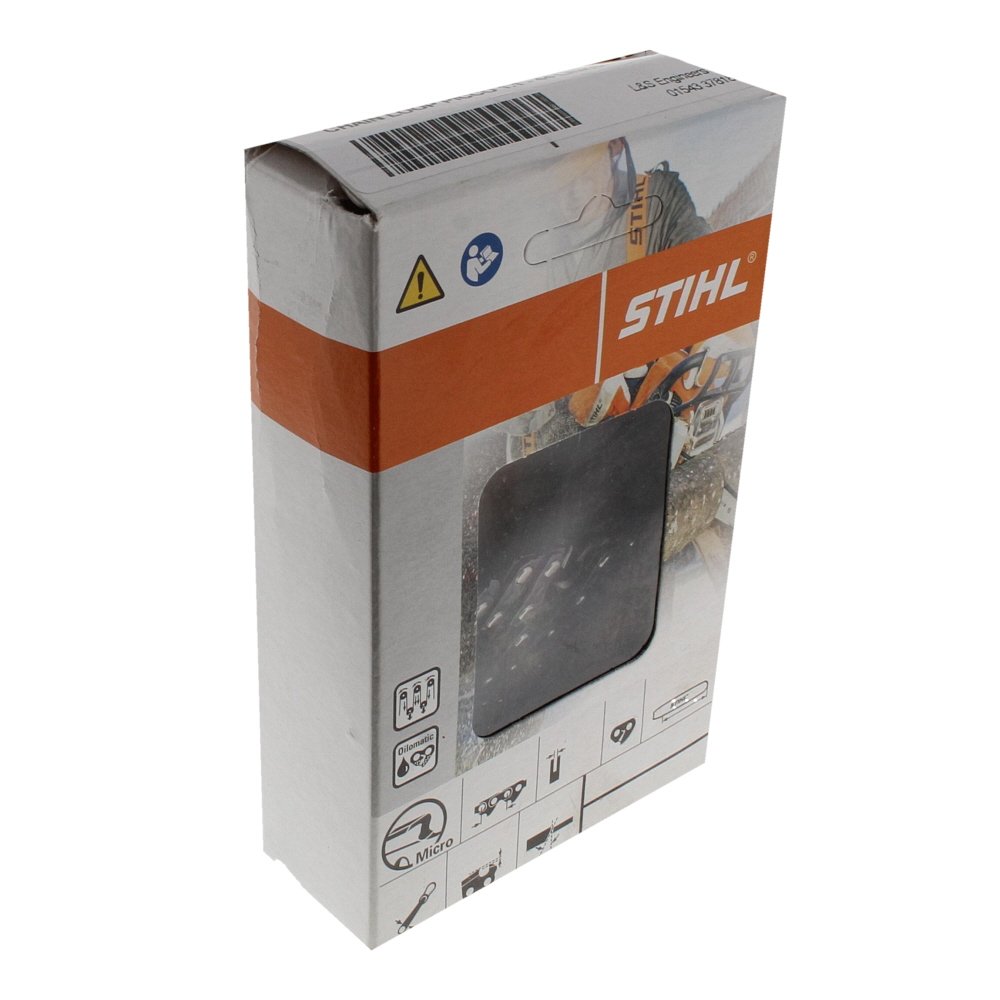

12" PM3 Chain Loop.
Pitch: 3/8"P, Gauge: 1.1mm & Links: 44
Chain Type: Picco Micro 3.
Suits 3005 000 3905 Guide Bar.
Part No. 3610 003 0044.
This genuine STIHL saw chain has been engineered to meet the specific requirements of light, compact chainsaws, delivering exceptional cutting performance, reduced kickback, and lower vibration levels. Its quality and features are outlined below.
- STIHL's vertical integration strategy is a key strength, as it manufactures the saw chains, guide bars, and engine units in-house. This results in an optimal match between all components, providing the necessary synergy for excellent cutting performance and reliability.
- The 12" PM3 Chain Loop has a pitch of 3/8"P, gauge of 1.1mm, and 44 links, specifically designed to fit the 3005 000 3905 Guide Bar. The Picco Micro 3 chain type offers superior cutting performance and low vibration levels, thanks to its narrow kerf, shallow tooth design, and optimized cutting angles.
- The Oilomatic lubricating system incorporates fine oil channels in the chain drive links that pick up oil from the bar groove and distribute it evenly to the chain links and running surfaces of the cutters, resulting in reduced friction and wear. Additional chain oil reservoirs in most Oilomatic saw chains further enhance lubrication and prolong chain life.
- The wear limit marks on the heel of the PM3 cutters serve as a wear indicator and sharpening guide, allowing users to assess how much the cutter can be sharpened or how much more wear is possible, thus optimizing chain life and performance.
- The top plate of each PM3 cutter is electrolytically chromium-plated, which significantly increases wear resistance and durability while maintaining optimal cutting performance.
- During production, each PM3 saw chain is subjected to a high, constant tensile load, reducing chain 'give' during initial use, promoting long service life, and mitigating wear over time.
- The smooth holes in the PM3 chain links are produced through a special punching process that enhances chain mobility and provides long service life.
- Each rivet is inductively hardened in a strong high-frequency field, producing an extra-strong collar that resists wear and enhances overall chain performance.
- STIHL saw chains, including the 12" PM3 Chain Loop, deliver exceptional cutting performance and quality, not only on STIHL chainsaws but also on other makes of chainsaw, ensuring superior results for users.
Suitable for the following applications:
Stihl: MS 170, MS 170 C, MS 171, MS 171 C, MS 180, MS 180 C, MS 181, MS 181 C, MS 190 T, MS 191 T, MS 192 C, MS 192 T, MS 192 TC, MS 193 C, MS 193 T, MS 193 TC, MSA 160 C, MSA 200 C, MSE 140 C, MSE 160 C, MSE 180 C, MSE 200 C, MSE 141 C, MSE 170 C, MSE 190 C, MSE 210 C, MSE 230 C, HT 56 C, HT 70, HT 70 K, HT 75, HT 73, HT 100, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 250, HTE 60, 009, 010, 011, 012, 015, 017, 018, 019 T, 020, 020 T, 021, 023, 025, E 14, E 140, E 160, E 180 C.
Power Pruner: PP 300, PP 400, PP 600, PP 800, PP 1200, PP 1250, PP 1260, PP 1400, P 1400–D, PPF-2100, PPT-2100, PPF-2400, PPT-2400, PPSR–2122, PPSR–2433.
Redmax: PRO GZ 25 N, PSZ 2500 S.
Shindaiwa: P 230, P 231, Pruner Attachment #78701, Pruner Tool #65002.
Product Specifications
| L&S Part No. | 3610 003 0044 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 36100030044 |
| Unit of Sale | 1 |
| Applications | 017, 023, E140, HT70, HT75, MS170, MS170C, MS171, MS180, MS180C, MS192T, MSE140 |
| Fits Brands | Stihl |
| Machine Type | Chainsaws, Electric Chainsaws, Pole Pruners |
| Fits Models | MS170, MS170C | MS180, MS180C | MS171, MS171C | HT70, HT70K, HT75 | HT73 | HT101 | HT130 | HT131 | HTE60 | HT-KM Pole Pruner | MS181, MS181C | 009 | 010, 011 | 012 | 015 | 017 | 018 | 019T | 020, 020T | 021, 023, 025 | E14 | E140, E160, E180 | MSE140, MSE160, MSE180, MSE200 | MSE141 C | MSE170, MSE190, MSE210, MSE230 | MSA160 C | MSA200 C | MS190T | MS191T | MS193C, MS193T, MS193TC | HT56 C | HT100 | HT102, HT103 | HT132, HT133 |
