Description
Overview:

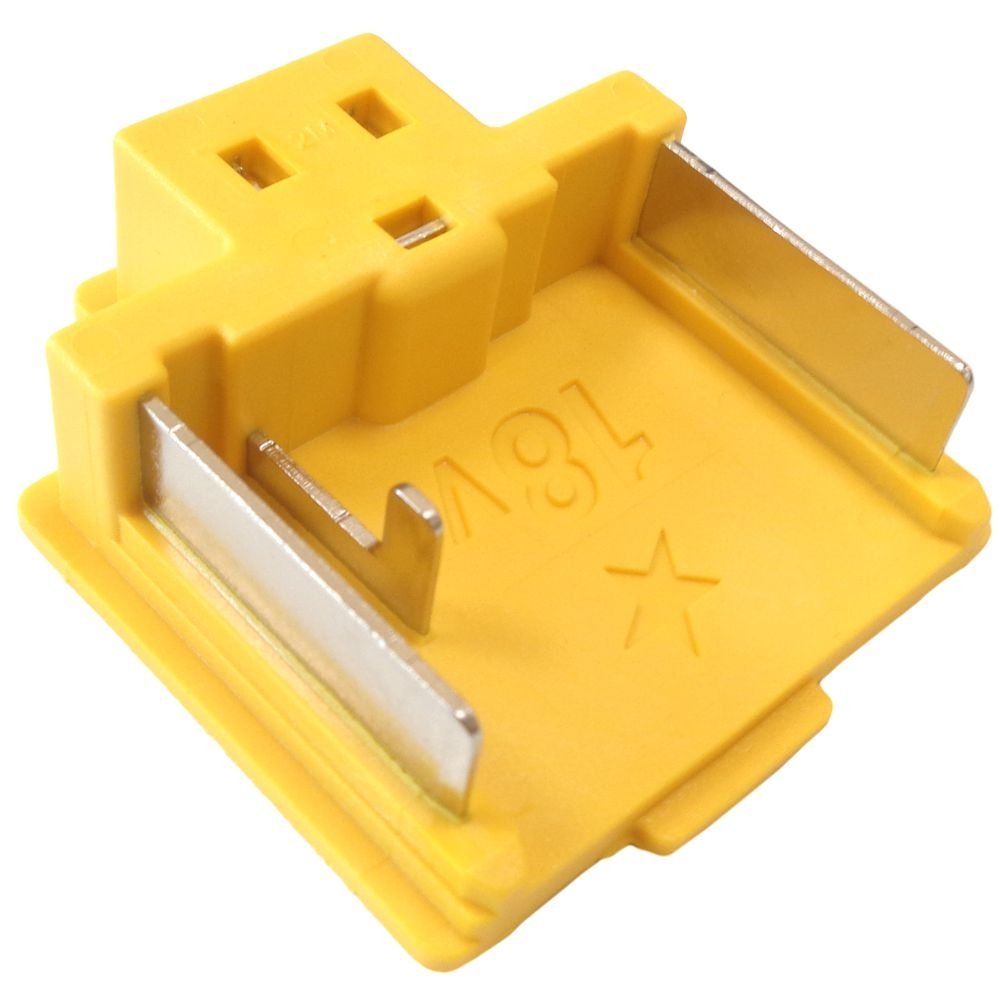

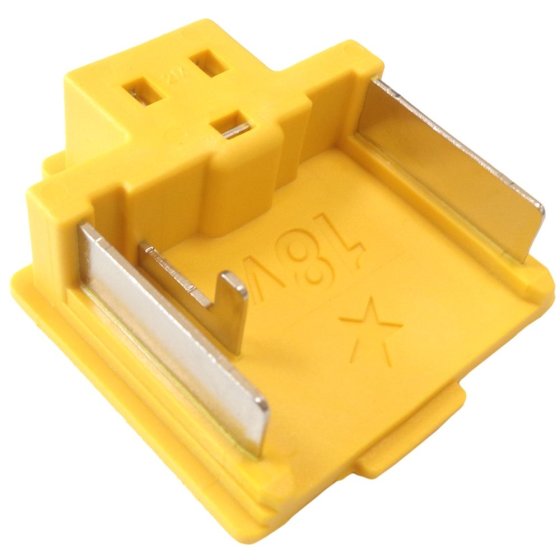

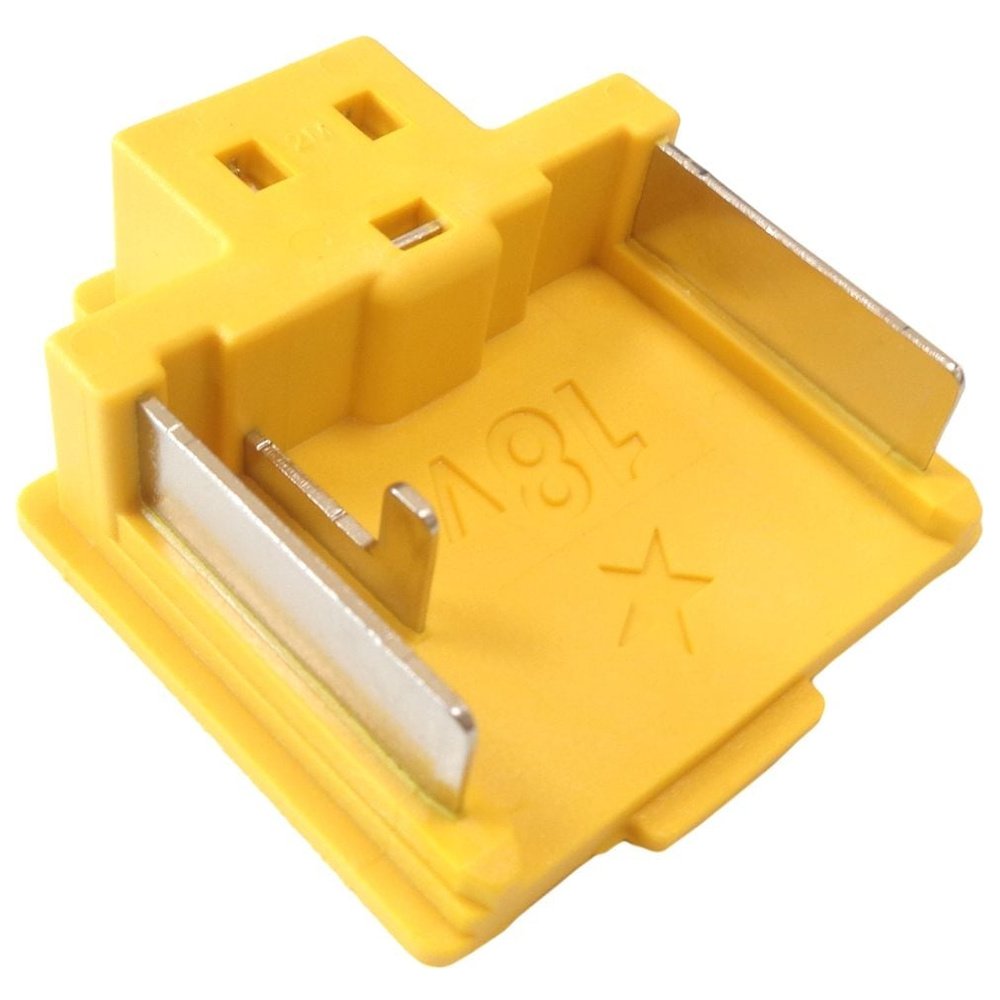

The Makita 643852-2 Terminal is a genuine replacement contact assembly for selected Makita cordless tools. It sits between the battery and the tool's internal wiring to carry power reliably into the motor and electronics. Built with a tough moulded plastic body and durable metal contacts, it is designed to restore consistent electrical performance where the original part has worn, burnt, or loosened over time. This terminal is suitable for many 18V Makita LXT tools, including popular drill models such as the BDF453 and BDF456. It provides a precise fit and dependable connection, helping to reduce intermittent cut-outs and voltage drop that can affect tool efficiency. Ideal for routine maintenance or repairs on well-used tools.
Key Features:
- Genuine Makita OEM part for assured compatibility and reliability
- Robust plastic housing with durable metal contacts for long service life
- Restores a solid battery-to-tool connection to minimise power loss and cut-outs
- Helps reduce arcing and heat build-up at the connection point
- Precise fit for the listed Makita models in the 18V LXT range
- Suitable for professional and DIY maintenance to keep tools working efficiently
- Straightforward replacement for competent users with basic tools
Typical Applications:
Used to replace worn, corroded, or heat-damaged terminals in Makita 18V cordless tools. Common where tools experience intermittent power, reduced performance, or visible contact wear. Suitable for site, workshop, and home repair to maintain safe, consistent operation of drills, drivers, cutters, trimmers, and vacuums.
Also known as:
Battery connector, contact block, contact plate, power tool battery terminal, slide-battery contacts, electrical connector, contact set, battery interface, drill terminal block, power terminal assembly.
Fits Models:
BDF453, BDF456, BFS451, BHP453, BHP456, BTD146, BTL061, BTL061 18V, BTM50, BTW251, BUH523, BUH523RF, BUH523Z, BUM168, BUM168RF, BUR181, BVC350, DDF453Z, DDF456RFE, DHP453SFE, DHP453SY, DHP456RFE, DHP456RMJ, DTD146RFE, DTD146RMJ, DTD146ZWQ, DTD152, DTD152RMJ, DTD152Z, DTM50RFX1, DTM50RFX3, DTM50RM1J1, DTM50RM1J3, DTM50Z, DTM51ZJX7, DTP140RFE, DUR181, DVC350Z
Alternate Part Numbers:
6438522
Product Specifications
| L&S Part No. | 643852-2 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Makita |
| OEM No. | 643852-2 |
| Unit of Sale | 1 |
| Applications | BDF453, BDF456, BFS451, BHP453, BHP456, BTD146, BTL061, BTL061 18V, BTM50, BTW251, BUH523, BUH523RF, BUH523Z, BUM168, BUM168RF, BUR181, BVC350, DDF453Z, DDF456RFE, DHP453SFE, DHP453SY, DHP456RFE, DHP456RMJ, DTD146RFE, DTD146RMJ, DTD146ZWQ, DTD152, DTD152RMJ, DTD152Z, DTM50RFX1, DTM50RFX3, DTM50RM1J1, DTM50RM1J3, DTM50Z, DTM51ZJX7, DTP140RFE, DUR181, DVC350Z |
| Machine Type | Drills, Cordless Blowers, Cordless Hedgetrimmers, Cordless Trimmers |
| Fits Brands | Makita |
| Fits Models | BUH523RF | BUH523Z | BUM168RF | BTD146 | DTD152 | BTW251 | BTL061 18V | BFS451 | BDF453 | BDF456 | BHP453 | BHP456 | DTM51ZJX7 | DTM50RFX1 | DTM50RFX3 | DTM50RM1J3 | DTM50RM1J1 | DTM50Z | DVC350Z | DHP453SFE | DHP453SY | DHP456RFE | DHP456RMJ | DTP140RFE | DDF453Z | DDF456RFE | DTD146RFE | DTD146RMJ | DTD146ZWQ | DTD152RMJ | DTD152Z | BUR181 | DUR181 |
