Description
Overview:

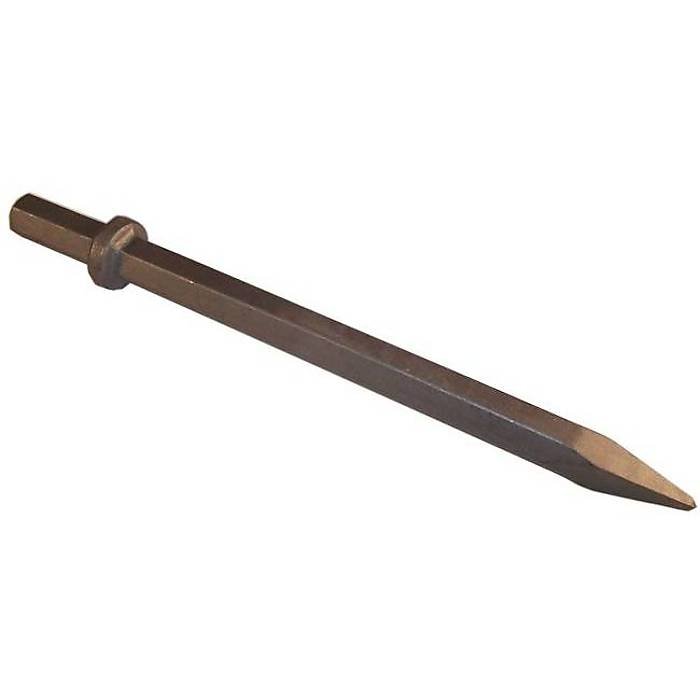

The Moil Point Hex Shank 22 mm x 82 mm for Atlas Copco Thor 16D/CP222 is a pointed breaker tool made from high‐quality steel for use in pneumatic jackhammers and demolition breakers. It focuses impact energy to crack and split concrete, stone and masonry. The hex shank measures 22 mm across flats (7/8") with an 82 mm shank section (3-1/4") for a secure, positive fit. Working length under the collar is 381 mm (15", approx. 38.1 cm), giving dependable reach for floor, wall and trench work. Built for demanding site use, it is compatible with Atlas Copco Thor 16D and CP222 models that accept a 22 mm hex shank, offering reliable performance where controlled breaking and penetration are required.
Key Features:
- High‐quality steel construction for strength and long service life in tough conditions

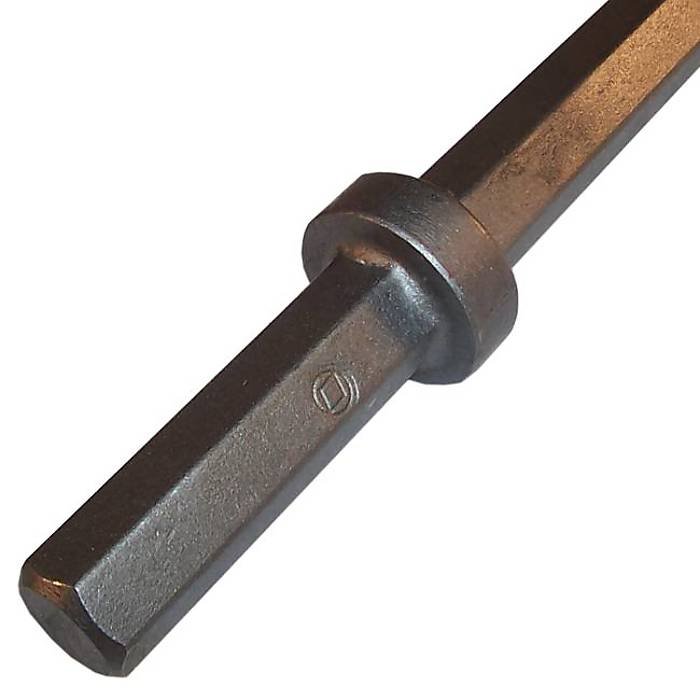

- 22 mm hex shank (7/8") resists rotation and delivers consistent power transfer
- 82 mm shank section (3-1/4") provides correct insertion depth and secure retention
- 381 mm working length (15", 38.1 cm) under the collar for effective reach and leverage
- Pointed tip geometry concentrates impact to start and propagate cracks quickly
- Compatible with Atlas Copco Thor 16D and CP222 breakers using a 22 mm hex shank
- Straightforward to fit and remove; clean and lightly grease the shank to aid longevity
- Suited to pneumatic breakers for controlled breaking of concrete, rock and hard aggregates
Typical Applications:
General demolition of reinforced and plain concrete, breaking up slabs and pads, reducing foundations and footings, trimming openings, scaling high spots, trenching through hard ground, and splitting rocks or boulders. Useful for renovation, utility installation, road and pathway works, and site clearance where a pointed tool offers faster crack initiation and directional control compared to flat chisels.
Also known as:
Chisel point, breaker point, jackhammer bit, moil spike, spike point, cone point, point chisel, pick point, pointed breaker bit, demolition point.
Fits Models:
16D
CP222
Product Specifications
| L&S Part No. | 910023 |
|---|---|
| Manufacturer | Atlas Copco |
| OEM No. | 3083324200 |
| Unit of Sale | 1 |
| Applications | 16D, CP222 |
| Machine Type | Breakers |
