Description
Overview:

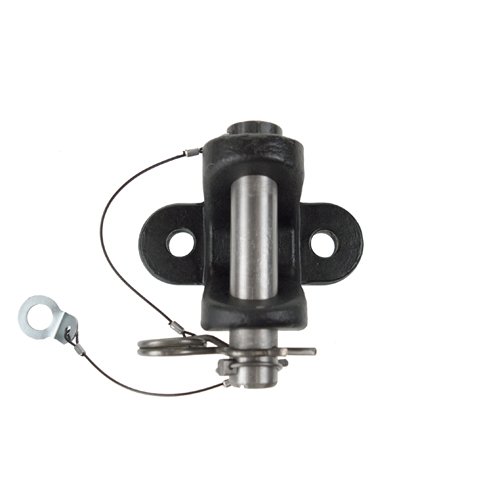

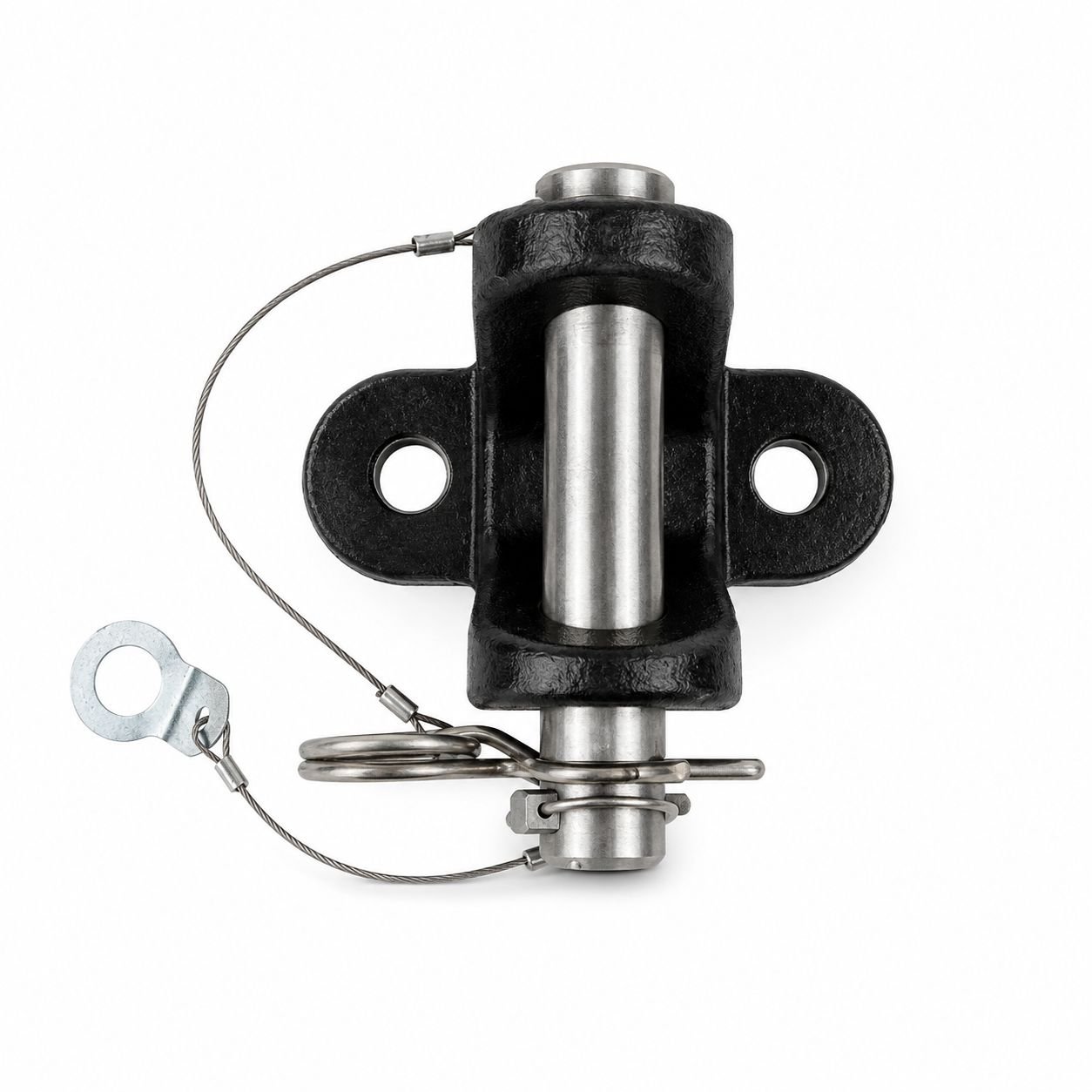

Maypole towing jaw in black, providing a pin and jaw coupling point for towing eye trailers. Bolts to the vehicle towbar plate and takes British standard towing eyes. Approved to UN/ECE Regulation 55.
Specification:
- D-value: 20.2kN
- S-value (vertical load): 350kg
- Finish: black
- Approval: UN/ECE Reg 55
- Maypole part number: MP4862
Towing Capacity:
Maximum braked trailer weight derived from the D-value:
- Behind a 3,500kg vehicle: 5,000kg
- Behind a 7,500kg vehicle: 2,830kg
These are coupling limits only. The lowest of the coupling limit, the towing vehicle's plated towing limit, the trailer's gross weight and the driver's licence entitlement applies. Centre-axle trailers are rated on Dc and V-value rather than D.
Typical Applications:
Commercial vehicles and site transport running towing eye trailers, plant trailers and agricultural implements where a ball coupling is not used.
Product Specifications
| L&S Part No. | 763 712 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - D-value: 20.2kN - S-value (vertical load): 350kg - Approved to UN/ECE Regulation 55 - Maximum braked trailer: 5,000kg behind 3,500kg vehicle - Maypole part number: MP4862 |
