Description
Overview:

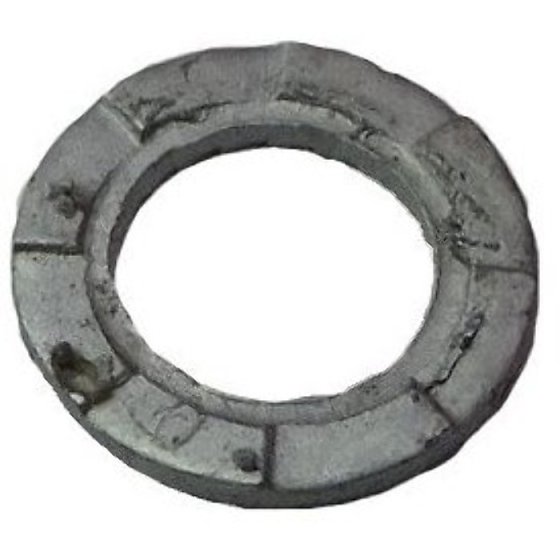

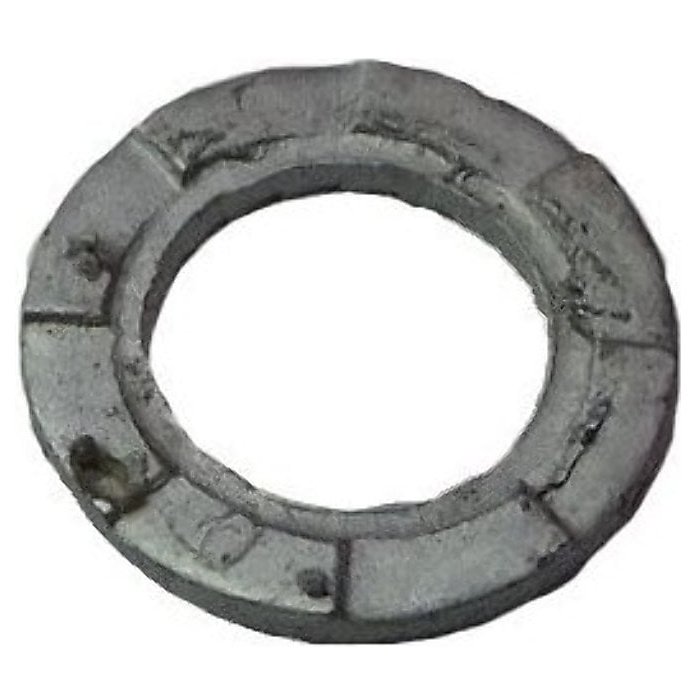

This genuine Husqvarna washer (MPN 503230402) is a flat steel spacer used to spread the load beneath bolt heads and nuts, helping to keep fasteners tight and components aligned. Built for demanding construction and grounds-care use, it supports reliable assembly of guards, clutch housings, blade flanges and similar fixtures. Common on Husqvarna power cutters and brushcutters, it suits models such as the K760 and K770. Its durable steel construction resists deformation under torque and vibration, helping reduce wear on mating parts and extending service intervals. A straightforward, no-fuss replacement, it is sized to OEM specification so it fits correctly without modification and works seamlessly with the intended fastener and housing stack-up.
Key Features:
- Genuine Husqvarna part for assured fit and function
- Robust steel construction resists crushing, fretting and vibration
- Even pressure distribution protects mating surfaces and fasteners
- Helps prevent loosening in high-vibration tools and cutters
- Accurate OEM dimensions for quick, hassle-free installation
- Suitable for regular maintenance and preventative servicing
- Compatible across a wide range of Husqvarna cutters, drills and brushcutters
- Replaces worn or distorted washers to restore secure assemblies
Typical Applications:
Used anywhere a secure, even clamping force is required on Husqvarna machines, including blade flange stacks on power cutters, mounting brackets for guards and covers, clutch and drive assemblies, and handlebar or engine-frame fixings on brushcutters and blowers. Ideal for routine servicing where fasteners are removed and refitted, or when vibration has caused existing washers to wear or deform.
Also known as:
Plain washer, spacing washer, shim ring, load-spreading washer, retaining washer, flat spacer.
Fits Models:
343F, 343FR, 343FRM, 343R, 345FR, 345FX, 345FXT, 345R, 345RX, 356BF, 356BT, 545F, 545FR, 545FX, 545FXT, 545RX, 545RXT, BV 30i, BV30i, DM 220, DM 230, DM220, DM230, K6500, K6500 Chain II, K6500 ChainII, K6500 Ring, K7000, K7000 Ring, K750, K760, K760 Cut-n-Break, K760 Cut-n-Break II, K760 II, K760 Rescue, K760II, K770, K770 Dry Cut, K770 DryCut, K770 OilGuard, K770 Rescue, K770 VAC, K770VAC, K950, K950 Chain, K950 Rescue, K950 Ring, K960, K960 Chain, K960 Rescue, K960 Ring, K960Chain, K960Ring, K970, K970 Chain, K970 Chain III, K970 ChainIII, K970 III, K970 Rescue III, K970 RescueIII, K970 Ring, K970 Ring III, K970 RingIII, K970Chain, K970III, K970Ring, R 200iX, R200iX, TS 60, TS60
Alternate Part Numbers:
503 23 04-02, 503230402
Product Specifications
| L&S Part No. | 503 23 04 02 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 503230402 |
| Unit of Sale | 1 |
| Applications | 343F, 343FR, 343FRM, 343R, 345FR, 345FX, 345FXT, 345R, 345RX, 356BF, 356BT, 545F, 545FR, 545FX, 545FXT, 545RX, 545RXT, BV 30i, BV30i, DM 220, DM 230, DM220, DM230, K6500, K6500 Chain II, K6500 ChainII, K6500 Ring, K7000, K7000 Ring, K750, K760, K760 Cut-n-Break, K760 Cut-n-Break II, K760 II, K760 Rescue, K760II, K770, K770 Dry Cut, K770 DryCut, K770 OilGuard, K770 Rescue, K770 VAC, K770VAC, K950, K950 Chain, K950 Rescue, K950 Ring, K960, K960 Chain, K960 Rescue, K960 Ring, K960Chain, K960Ring, K970, K970 Chain, K970 Chain III, K970 ChainIII, K970 III, K970 Rescue III, K970 RescueIII, K970 Ring, K970 Ring III, K970 RingIII, K970Chain, K970III, K970Ring, R 200iX, R200iX, TS 60, TS60 |
| Machine Type | Disc Cutters, Brushcutters |
| Fits Brands | Husqvarna |
| Fits Models | K750 | K950 | K760 | K770 | K970 | K6500 | K6500 RING | K760 Cut-n-Break | K760 RESCUE | K950 Rescue | K950 Ring | K960 | K960 Rescue | K960 Ring | K970 Ring | 343F | 343FR | 343R | 345FR | 345FX | 345FXT | 345R | 345RX | 356BF | 356BT | 545FR | 545FX | 545RX | 545RXT | 545FXT | K7000 | K7000 Ring | K7000 SmartGuard | K6500 Chain II | K950 Chain | K960 Chain | K970 Chain | K970 Chain III | K970 Chain III (2 Bolt) | DM 220 | DM 230 | BV 30i | K760 Cut-n-Break II | K760 II | K770 Dry Cut | K770 OilGuard | K770 Rescue | K770 SmartGuard | K770 VAC | K970 Rescue III | K970 Ring III | K970 SmartGuard | TS 60 | K970 III | R 200iX | 545F | 343FRM |
