Description
Overview:

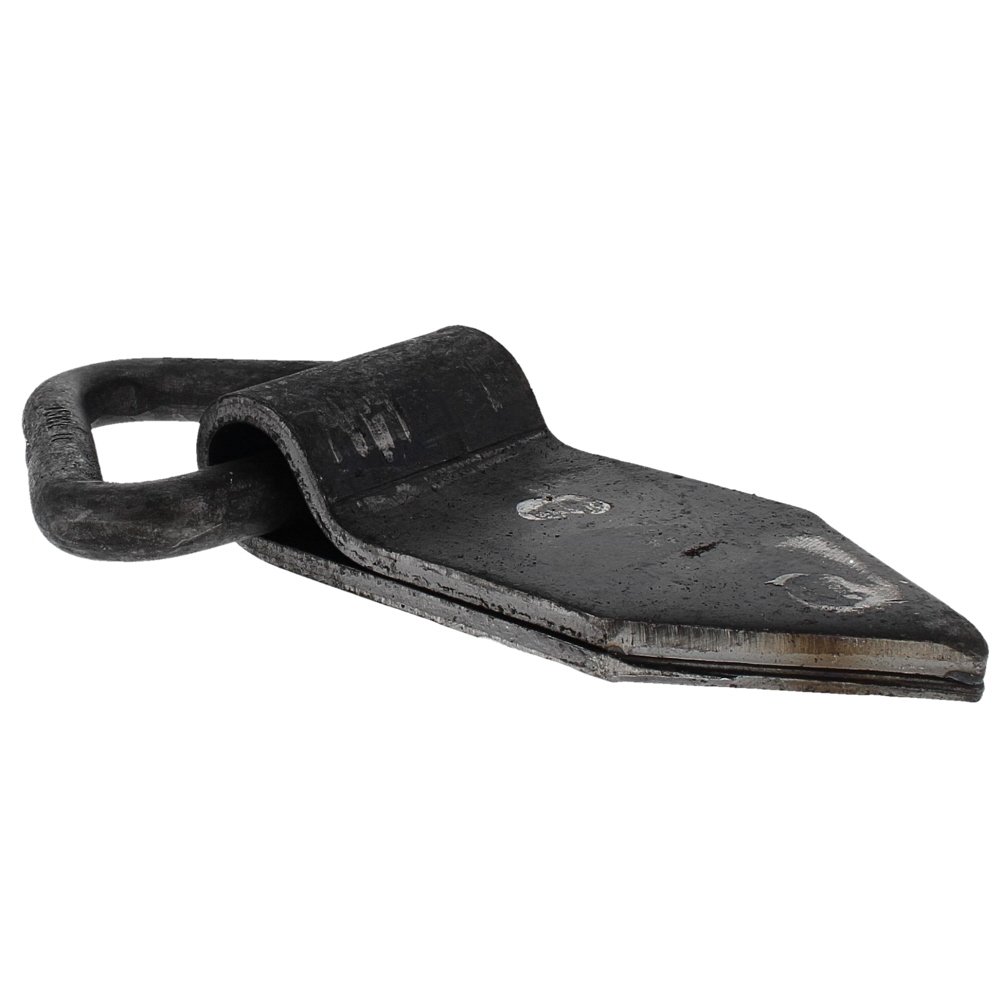

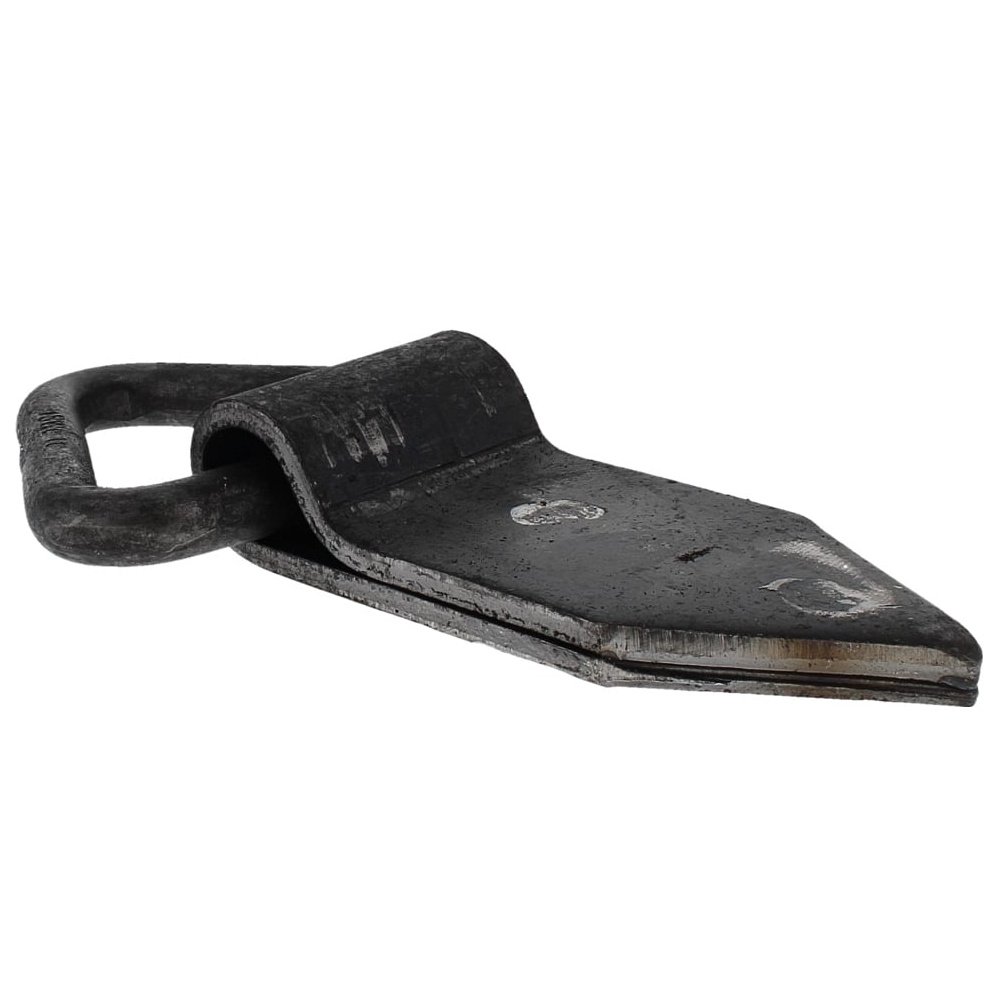

Weld-On Triangular Fold-Over Lashing Ring (MPN 200 911) for medium duty load restraint on commercial vehicles and trailers. This unit provides a reliable tie-down point that folds flat when not in use, helping to keep decks clear and reducing snag risks. Manufactured in mild steel with a forged ring and a weld-on steel strap, it is supplied in self colour (plain, uncoated steel) ready for welding and finishing to suit the vehicle body. Rated to a safe working load of 1000 kg (approx. 1 tonne / 2200 lb), it suits webbing, hooks and chains used in day‐to‐day haulage and plant transport. Overall dimensions are 80 mm length, 90.5 mm width and 12 mm depth, giving a compact yet robust lashing point for bodies, platforms and internal load areas on trucks, trailers and horseboxes.
Key Features:
- Medium duty fold-over lashing ring that drops flat when not in use
- Material: Mild steel construction with forged steel ring
- Finish: Self colour (plain steel), suitable for welding and post-finish
- Fixing method: Weld-on base strap for permanent installation
- Safe Working Load (SWL): 1000 kg (approx. 2200 lb)
- Dimensions: Length 80 mm (3.15 in), Width 90.5 mm (3.56 in), Depth 12 mm (0.47 in)
- Compact profile for use on load beds, internal walls or bulkheads
- Suitable for use with webbing straps, hooks and chain assemblies
- Built for regular use on commercial vehicle bodies and trailers
Typical Applications:
Used as a permanent tie-down point on trucks, trailers and horseboxes for securing pallets, machinery, plant and general freight. Commonly welded to flatbeds, platform bodies, internal floors or side structures to provide dependable load restraint during transport.
Also known as:
Weld-on lashing point; Fold-flat lashing eye; Tie-down ring; Weld-on tie ring; Fold-over ring
Product Specifications
| L&S Part No. | 200 911 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Safe Working Load: 1 Tonne (1,000 kg) - Forged triangular ring for strong anchoring - Weld-on design for permanent steel fixing - Self-colour mild steel, paintable post-installation - Compatible with hooks, chains, and webbing straps |
