Description
Overview:

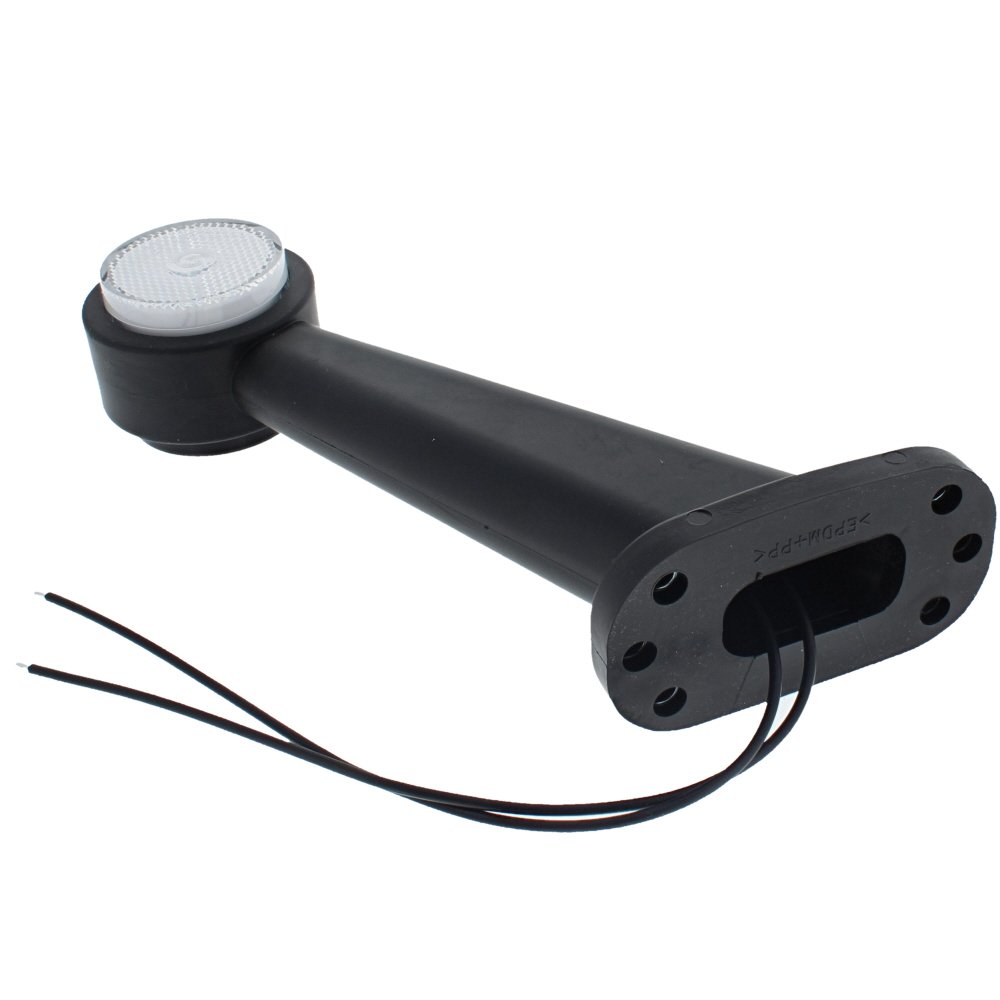

The LED Front Outline Marker Lamp RH 45° Clear End 10-30V WAS IP66 (MPN 761 595) is a right-hand front position marker designed for trailer and body installations where a 45° angled unit is specified. It features a clear end lens with an integrated reflector and a black rear lens/body, housed in durable EPDM to withstand vibration and harsh operating environments. The multi-volt 10-30 V DC LED module suits both 12 V and 24 V systems commonly found on trailers, plant and agricultural equipment, and commercial vehicles. An 18 cm (7.1 in) flying lead provides straightforward wiring to existing looms. The lamp is IP66 rated for high resistance to dust and water ingress and carries E-mark and EMC approvals. Supplied in bulk without retail packaging. Lamp manufacturer: WAS; distributed by Maypole.
Key Features:
- Right-hand front position/outline marker in a 45° angled design
- Clear end lens with integrated reflector and black rear lens/body
- EPDM rubber housing for durability and vibration resistance
- Multi-volt 10-30 V DC; compatible with 12 V and 24 V systems
- Pre-wired 18 cm (7.1 in) flying lead connection
- IP66 ingress protection for dust-tight and high-pressure water jet resistance
- E-marked and EMC approved
- Bulk supplied; no retail packaging
Typical Applications:
Used on the front corners of trailers and towed equipment to mark vehicle extremities and front position. Common on boat trailers, plant and machinery transporters, recovery bodies, agricultural trailers, and rigid truck or van bodies requiring a right-hand 45° outline marker. Suitable for fleets standardising on WAS LED markers across 12 V and 24 V electrical systems.
Also known as:
- Right Hand 45 Degree LED Outline Marker
- Front Position Marker Lamp, Clear End
- WAS RH 45° Marker Light
- Maypole part number MP8707BR
Product Specifications
| L&S Part No. | 761 595 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Right-hand front position marker with 45° angled design - Multi-volt 10-30 V DC for 12 V and 24 V systems - IP66 rated for dust and high-pressure water resistance - EPDM rubber housing resists vibration and harsh environments - 18 cm flying lead for easy wiring to existing looms |
