Description
Overview:

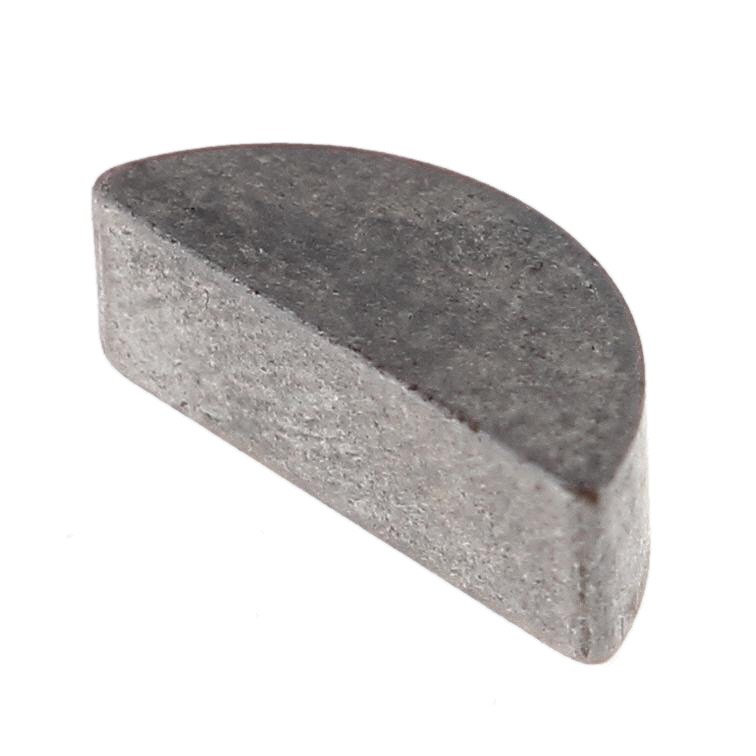

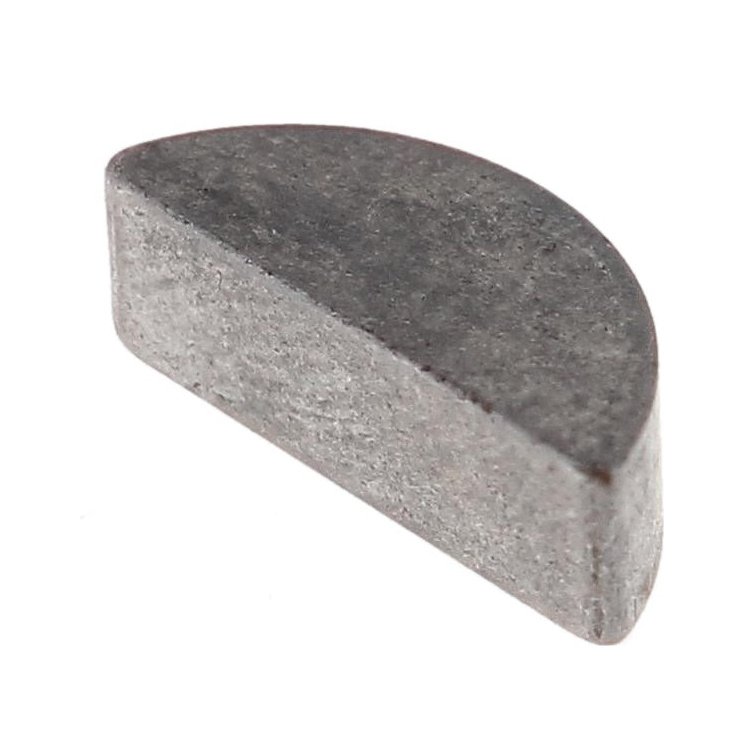

The Woodruff Key for Stihl disc cutters is a small but critical drive component that locks rotating parts to a shaft to prevent slippage and preserve alignment. This genuine Stihl part is made from robust steel and sized at approximately 10 mm x 5 mm to suit the intended keyway. It is used on cut-off saws, including the TS510 and TS760, to secure components such as flywheels or pulleys on the crankshaft. By maintaining the correct position of rotating assemblies, the key helps protect engine timing, ensures smooth power transfer, and supports reliable starting and cutting performance. Built to OEM specification, it fits cleanly into the keyway and withstands repeated loads typical of concrete and metal cutting work.
Key Features:
- Genuine Stihl part for assured fit and compatibility
- Steel construction for strength and long service life
- Approx. 10 mm x 5 mm size to match the specified keyway
- Helps prevent shaft-to-hub slippage under load
- Maintains timing and alignment of rotating components
- Smooth, precise seating for consistent performance
- Resistant to wear in high-vibration applications
- Simple to install during routine servicing or rebuilds
- Suitable for a wide range of Stihl cut-off saw models
- Direct replacement for listed Stihl part numbers
Typical Applications:
Used to lock a hub to a shaft on Stihl cut-off saws so torque is transmitted without movement. Typical positions include the flywheel on the crankshaft and other keyed rotating parts within the drive system. Ideal for routine maintenance, engine rebuilds, or when correcting slippage or timing issues on busy site saws and workshop machines.
Also known as:
Half-moon key, semi-circular shaft key, keyway key, shaft key, timing key, drive key, machine key.
Fits Models:
TS08, TS08S, TS350, TS360, TS460, TS50, TS510, TS700, TS760, TS800
Alternate Part Numbers:
4223-036-8600, 42230368600
Product Specifications
| L&S Part No. | 4223 036 8600 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94824350800 |
| Unit of Sale | 1 |
| Applications | TS08, TS08S, TS350, TS360, TS460, TS50, TS510, TS700, TS760, TS800 |
| Machine Type | Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS350, TS360 | TS700 | TS510 | TS460 | TS08S, TS08 | TS50 | TS800 | TS760 |
