Description
Overview:

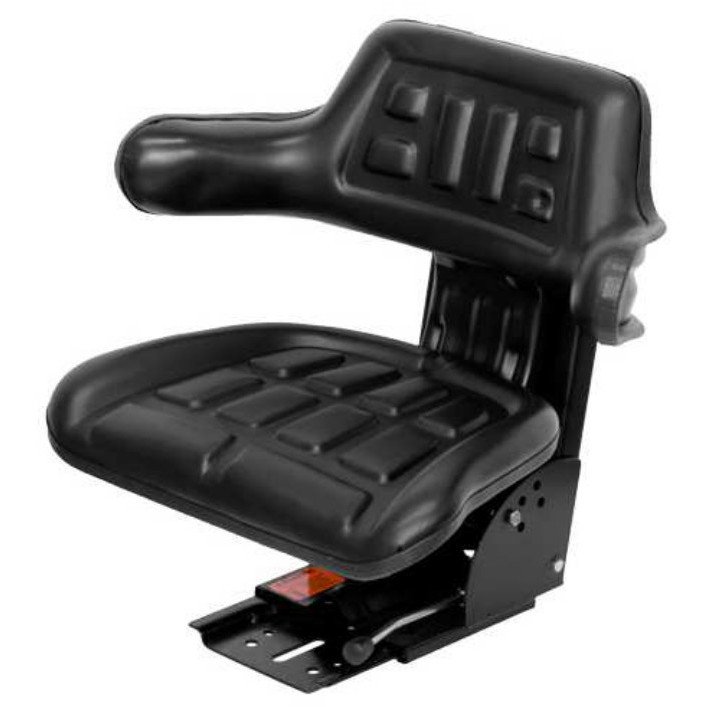

The Wrap Around Arm Rear Suspension Seat PVC is a heavy-duty operator seat for plant and agricultural machinery. Made from tough black PVC with a contoured, wrap-around design, it supports the operator and helps reduce vibration and fatigue over long shifts. A rear suspension unit with 80 mm (3.15 inches) of travel smooths rough ground, while a slide rail offering 150 mm (5.91 inches) of fore-aft adjustment helps you find a safe, comfortable driving position. Weight adjustment from 50 to 120 kg (110 to 265 lbs) allows fine tuning for different operators. A multi-adjustable mounting plate aids retrofit onto a wide range of machines, and seatbelt fixation points are provided for safety compliance. Manufacturer Part Number: 084 500. Suitable for tractors, dumpers and rollers.
Key Features:
- Durable black PVC construction for long service life in demanding environments
- Rear suspension with 80 mm (3.15 inches) travel to reduce shocks and vibration
- Slide rails with 150 mm (5.91 inches) travel for quick fore-aft adjustment
- Operator weight setting from 50 to 120 kg (110 to 265 lbs) for tailored support
- Multi-adjustable mounting plate for versatile installation on varied base patterns
- Seatbelt fixation points to support safe installation where belts are required
- Wrap-around sides and supportive backrest to improve stability and comfort
- Low-maintenance surface that wipes clean after muddy or wet site work
- Suited to heavy plant duty cycles common in agriculture, construction and hire fleets
- Practical upgrade for older seats to improve comfort and reduce operator fatigue
Typical Applications:
Ideal for replacing worn seats on tractors, site dumpers and tandem/padfoot rollers. Common in farm yards, construction sites, landscaping, grounds maintenance and depot operations where machines operate on uneven surfaces. Useful for operators seeking better comfort, adjustability and safety points without changing the machine's original layout.
Also known as:
Operator seat, machinery suspension seat, universal suspension seat, plant seat, agricultural seat, site dumper seat, roller operator chair, adjustable machinery seat, PVC plant seat, ride-on machinery seat.
Product Specifications
| L&S Part No. | 084 500 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Tractors, Dumpers, Rollers |
