Description
Overview:

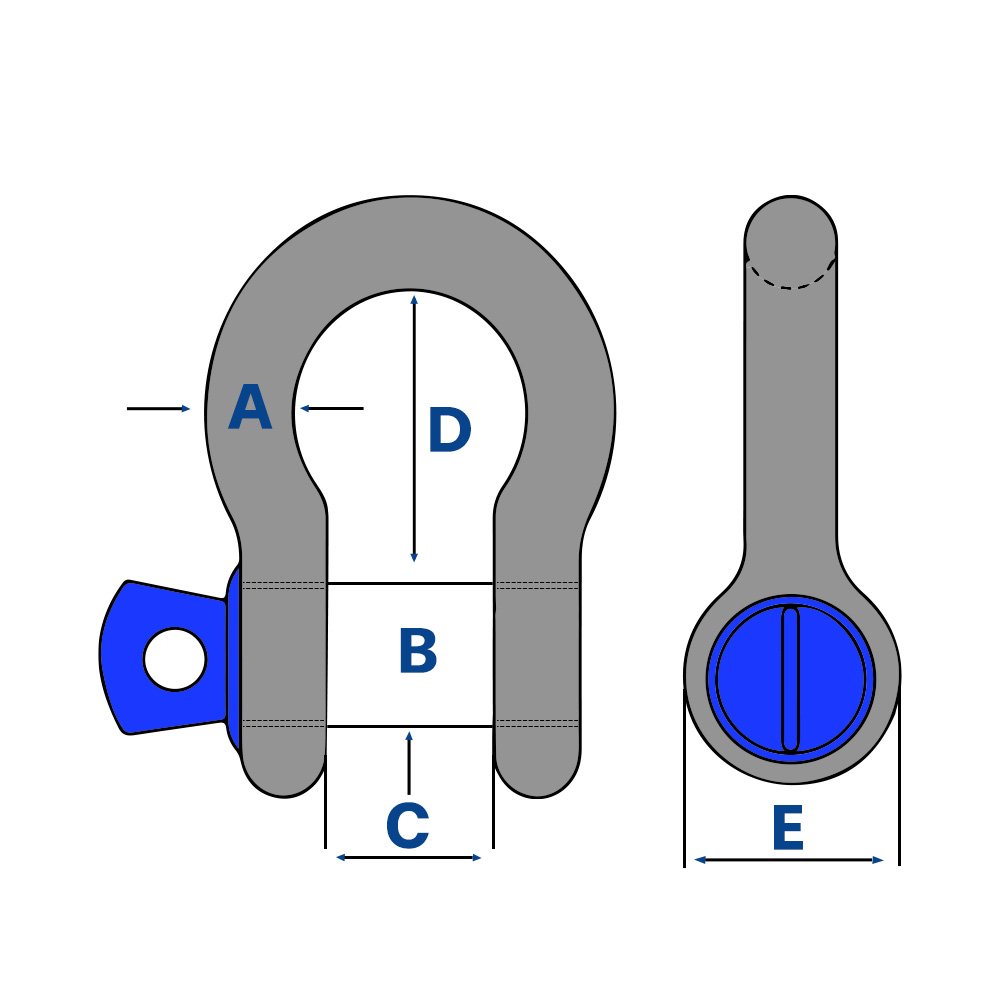

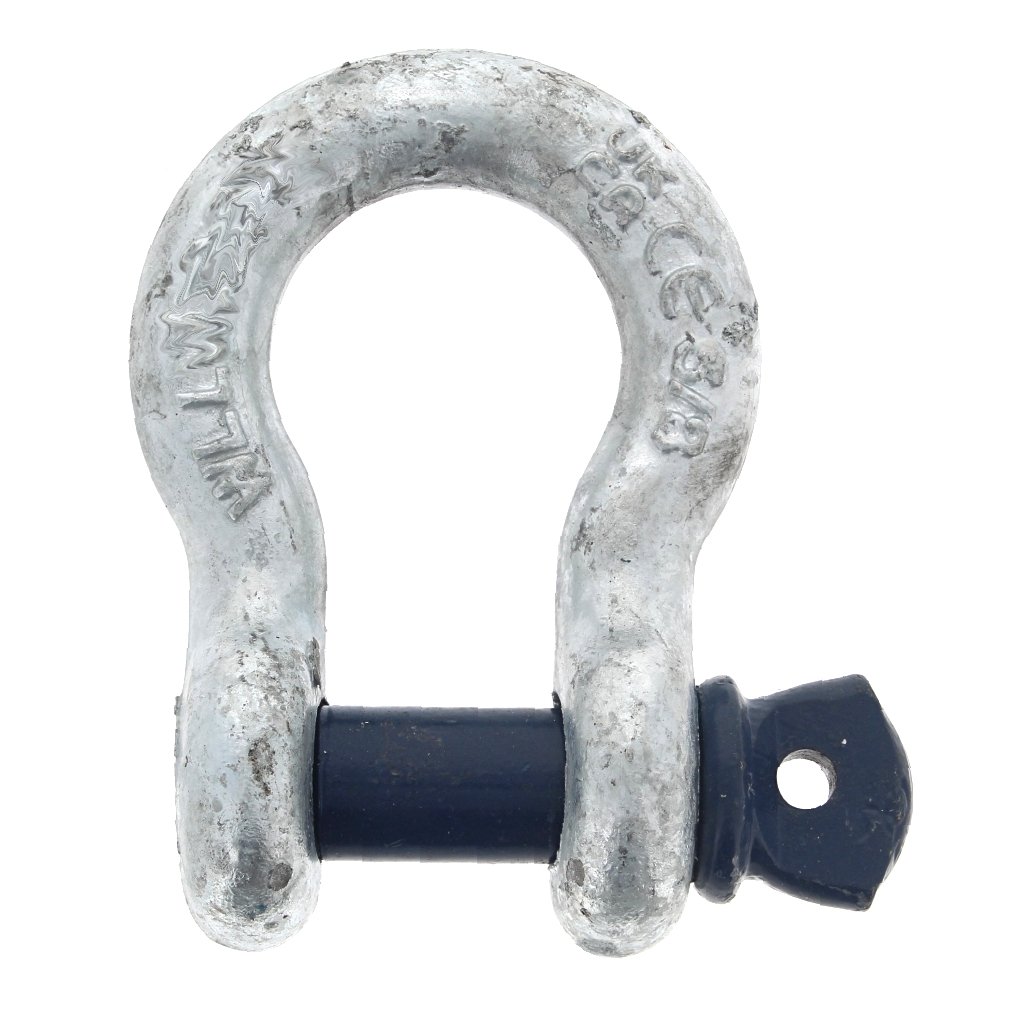

The 16mm Alloy Steel Bow Shackle with Screw Collar Pin is a heavy-duty connector for lifting, pulling, and securing loads on site, in workshops, and around agricultural or garden machinery. Made from galvanised alloy steel for strength and corrosion resistance, it features a rounded bow and a removable screw collar pin for quick, secure attachment of chains, wire ropes, and webbing slings. With a Working Load Limit of 1.00T (approximately 1,000 kg), it is suitable for everyday rigging tasks where safety is key. The pin diameter is 7/16 inch (approximately 11 mm) and the jaw width is 16 mm, giving reliable compatibility with common fittings. Manufactured to meet U.S. Federal Specification RR-C-271B. Manufacturer Part Number: 200 637.
Key Features:
- Galvanised alloy steel body for high strength and long-term corrosion resistance
- Working Load Limit: 1.00T (approximately 1,000 kg) for routine lifting and load restraint
- Screw collar pin design allows fast fitting and removal without special tools
- Pin diameter: 7/16 inch (approximately 11 mm) for dependable compatibility with many chain and sling components
- Jaw width/opening: 16 mm for secure seating of hooks, thimbles, or soft slings
- Rounded bow profile helps align multi-leg slings and reduces side loading compared with straight (D) shackles
- Manufactured to meet U.S. Federal Specification RR-C-271B for assured performance
- Smooth forged finish helps reduce snagging and makes visual inspection easier
- Compact form factor for use on site lifting points, spreader beams, winches, and snatch blocks
- Reusable, service-friendly design; simple to check pin tightness during use
Typical Applications:
Used for connecting chains, wire rope thimbles, and webbing slings to lifting points on plant and equipment, attaching snatch blocks to recovery or forestry winch lines, securing loads on trailers, tensioning guy lines, and general rigging on construction sites, farms, and estates. Suitable for hoists, winches, lifting beams, and anchor points where a removable, corrosion-resistant bow shackle is required.
Also known as:
Anchor shackle, omega shackle, US type shackle, collared pin shackle, galvanised anchor shackle, alloy steel anchor shackle, screw-collar shackle.
Product Specifications
| L&S Part No. | 200 637 |
|---|---|
| Unit of Sale | 1 |
