Description
Overview:

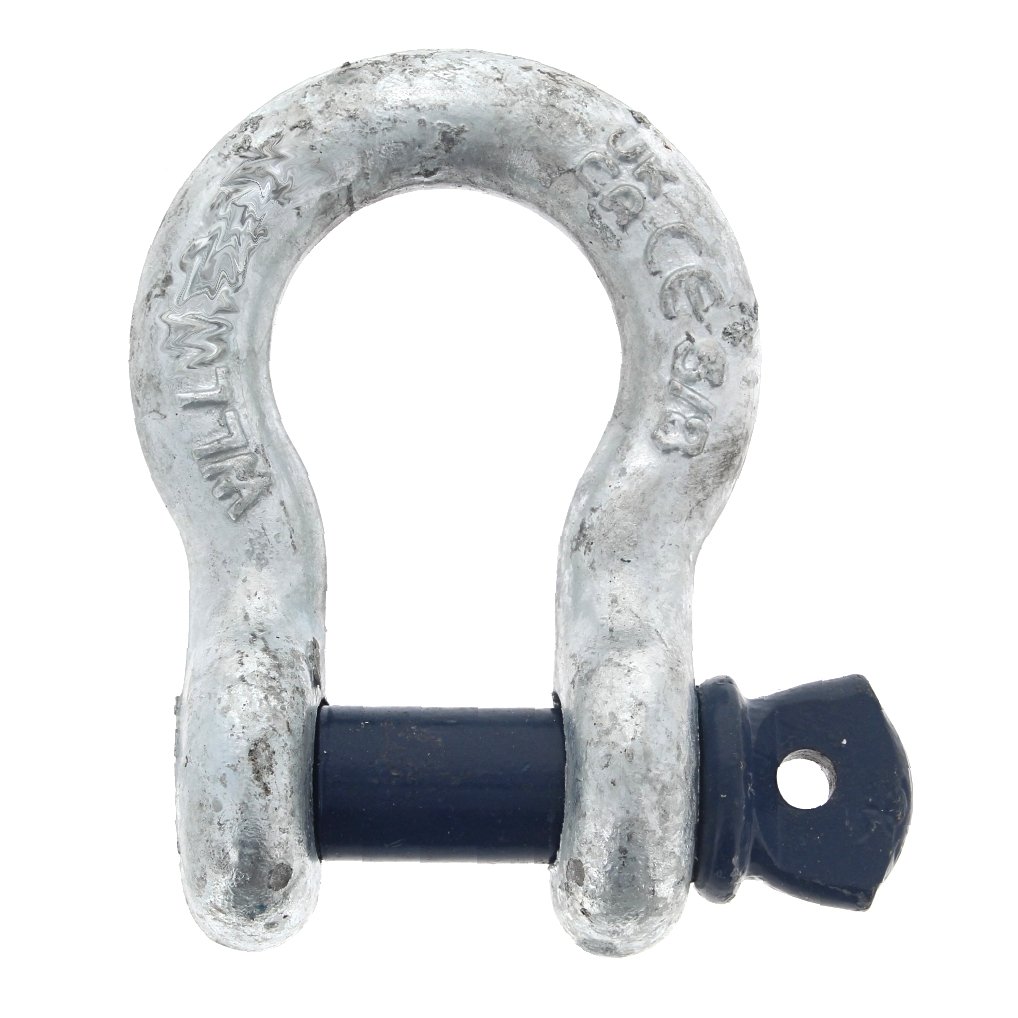

The 18mm Alloy Steel Bow Shackle with Screw Collar Pin is a heavy‐duty connector for lifting, towing, and rigging tasks on construction sites, workshops, farms, and gardens. Made from galvanised alloy steel, it offers high strength with excellent resistance to rust and wear, making it suitable for outdoor and industrial use. The bow profile gives extra space for multiple attachments or sling angles, while the screw collar pin allows quick hand fitting and removal. With a Working Load Limit of 1.5 tons (approx. 1,360 kg), it complies with U.S. Federal Specification RR‐C‐271B for dependable performance. Typical uses include connecting chains, wire rope, and webbing slings to plant, lifting gear, and winches. A durable silver-grey galvanised finish supports long service life under tough conditions.
Key Features:
- Galvanised alloy steel body for strength and corrosion resistance in harsh environments
- Screw collar pin for quick, secure fastening by hand and easy inspection
- Working Load Limit (W.L.L.) 1.5 tons (approx. 1,360 kg) for reliable lifting and load restraint
- Jaw width of 18 mm to accept common chain links, thimbles, and sling eyes
- Pin diameter 1/2 inch (approx. 12.7 mm) for a robust, positive connection
- Bow shape accommodates multi-leg slings and angled loading better than straight (D) shackles
- Smooth galvanised finish reduces snagging and aids cleaning after site use
- Complies with RR‐C‐271B for consistent sizing and performance
- Reusable design; easy to remove and refit for temporary or semi‐permanent connections
- Suitable for indoor and outdoor use across construction, utilities, agriculture, marine, and general maintenance
Typical Applications:
Connecting lifting slings to hooks, attaching chains to lifting points, securing loads on trailers and plant, winching and recovery tasks, fencing and anchoring work, and general rigging. Ideal for cranes, hoists, telehandlers, excavators, 4x4 recovery gear, and workshop lifting setups where a quick, strong, and corrosion‐resistant connector is needed. Always use within the stated W.L.L.
Also known as:
Anchor shackle, clevis shackle, SCP shackle (screw collar pin), lifting shackle, rigging shackle, chain shackle, rigging connector, alloy steel shackle, galvanised anchor shackle.
Product Specifications
| L&S Part No. | 200 638 |
|---|---|
| Unit of Sale | 1 |
