Description
Overview:

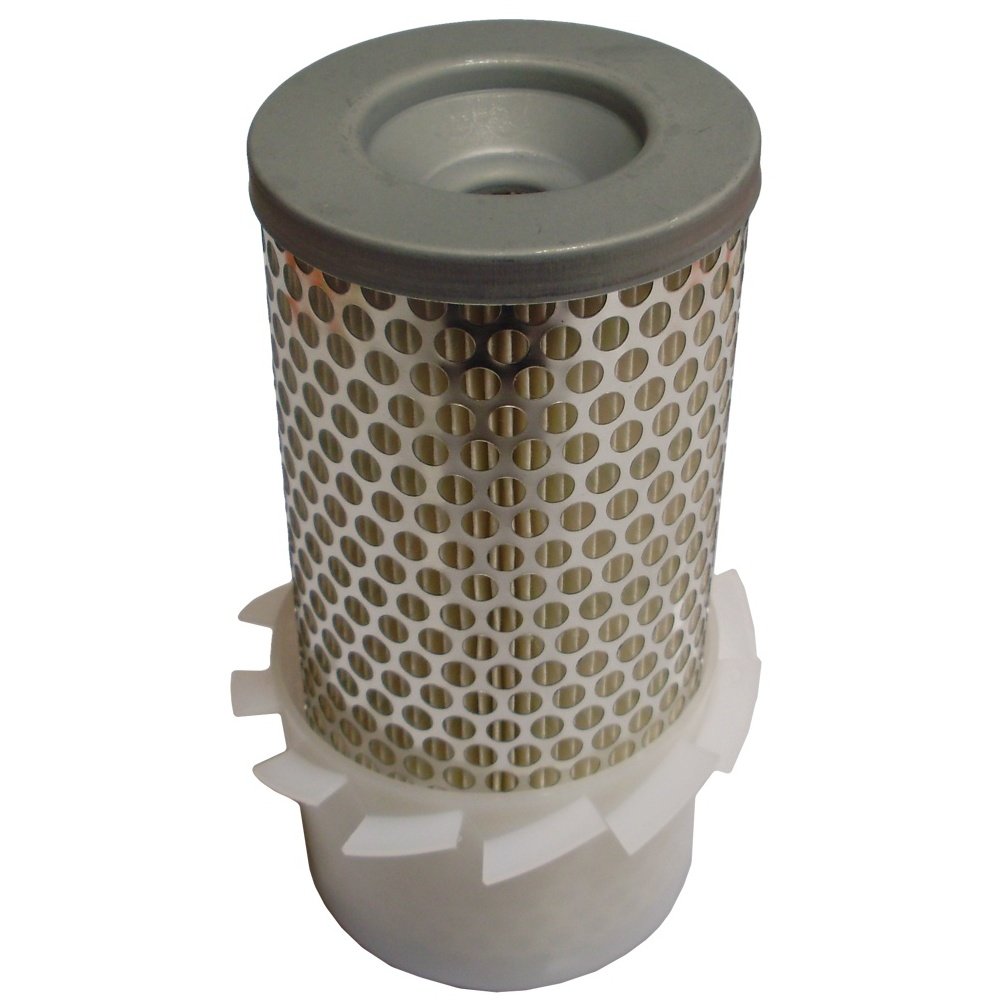

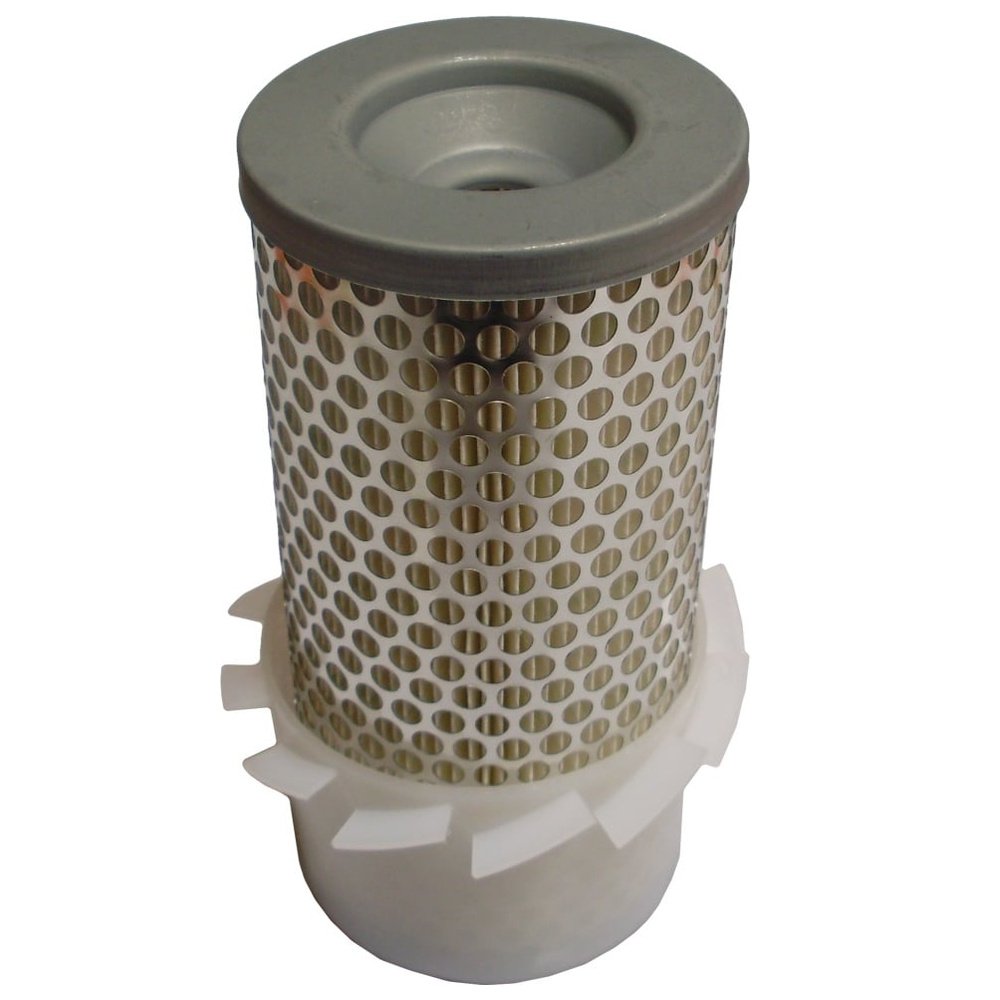

This non-genuine replacement air filter is designed for Kubota mini diggers and excavators, including the KX36-2 and KX41-2. It is a cylindrical outer (primary) element that traps dust and debris before they reach the engine, supporting clean combustion and reducing wear. Built with pleated filter media and a sturdy construction for consistent airflow, it fits directly into the original air box without modification. For machines that use a safety element, it is intended to work in tandem with the inner filter LA1514 (inner sold separately). Dimensions: height 182 mm; outer diameter 108/83 mm (stepped); inner diameter 54/17 mm (stepped). This is a Non Genuine Part, offering a cost-effective maintenance solution for construction, landscaping, and agricultural use.
Key Features:
- Non Genuine Part for economical servicing while maintaining dependable filtration
- Primary outer element; designed to pair with inner filter LA1514 where fitted
- Pleated high-surface-area media for efficient dust capture with stable airflow
- Robust construction to withstand vibration and harsh site conditions
- Stepped bore and outer diameter for a precise fit in the OEM housing
- Helps protect pistons, rings, and turbo components from abrasive particles
- Straightforward installation; direct replacement with no modifications required
- Supports engine efficiency, fuel economy, and reduced wear when replaced on schedule
- Suitable for frequent operation in dusty environments such as groundworks and demolition
- Dimensions: 182 mm height, 108/83 mm OD, 54/17 mm ID for accurate sizing
Typical Applications:
Use as the primary air cleaner element in Kubota mini excavators working on construction sites, utilities, landscaping, agriculture, and plant hire. Ideal for trenching, grading, backfilling, and general groundworks where airborne dust and soil particles are common.
Also known as:
Engine air filter, outer air cleaner element, primary air filter cartridge, dust filter, intake filter element.
Fits Models:
KX36, KX36-2, KX36-2 Alpha, KX36-2Alpha, KX362, KX41, KX41-2, KX41-2s, KX41-2sv, KX412, KX412S, KX412SV, KX61, KX61-2, KX61-2 Alpha, KX61-2Alpha, KX612
Alternate Part Numbers:
119631.12520, 119631-1252, 6C040-94240, 119631.1252, 11963112520, 6C040.94240, 6C04094240, 1196311252, AEM108243, PA3472-FN, BSA25703, MD.5130K, MD-5130K, AF25703K, P50.0236, PA3472FN, PA4665FN, WGA1234K, MD5130K, P500236, 1513AF, C11005
Product Specifications
| L&S Part No. | LA1513 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | A1048 |
| Unit of Sale | 1 |
| Size | 185mm x 83mm x 83mm |
| Applications | KX36, KX36-2, KX36-2 Alpha, KX36-2Alpha, KX362, KX41, KX41-2, KX41-2s, KX41-2sv, KX412, KX412S, KX412SV, KX61, KX61-2, KX61-2 Alpha, KX61-2Alpha, KX612 |
| Machine Type | Excavators |
| Fits Brands | Alco Filters, Greyfriars, Kubota, TFS, Yanmar |
| Fits Models | KX36 | KX36-2 | KX41 | KX41-2 | KX61 | KX61-2 |
