Description
Overview:

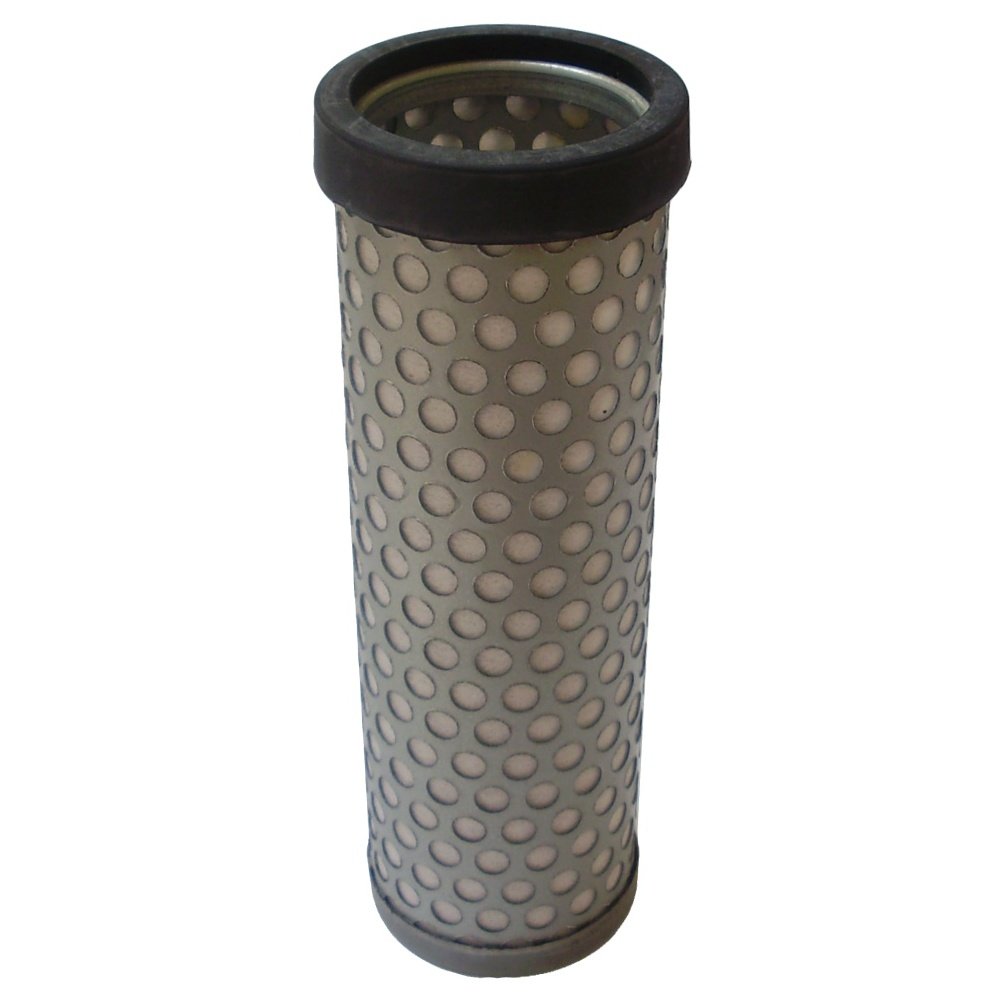

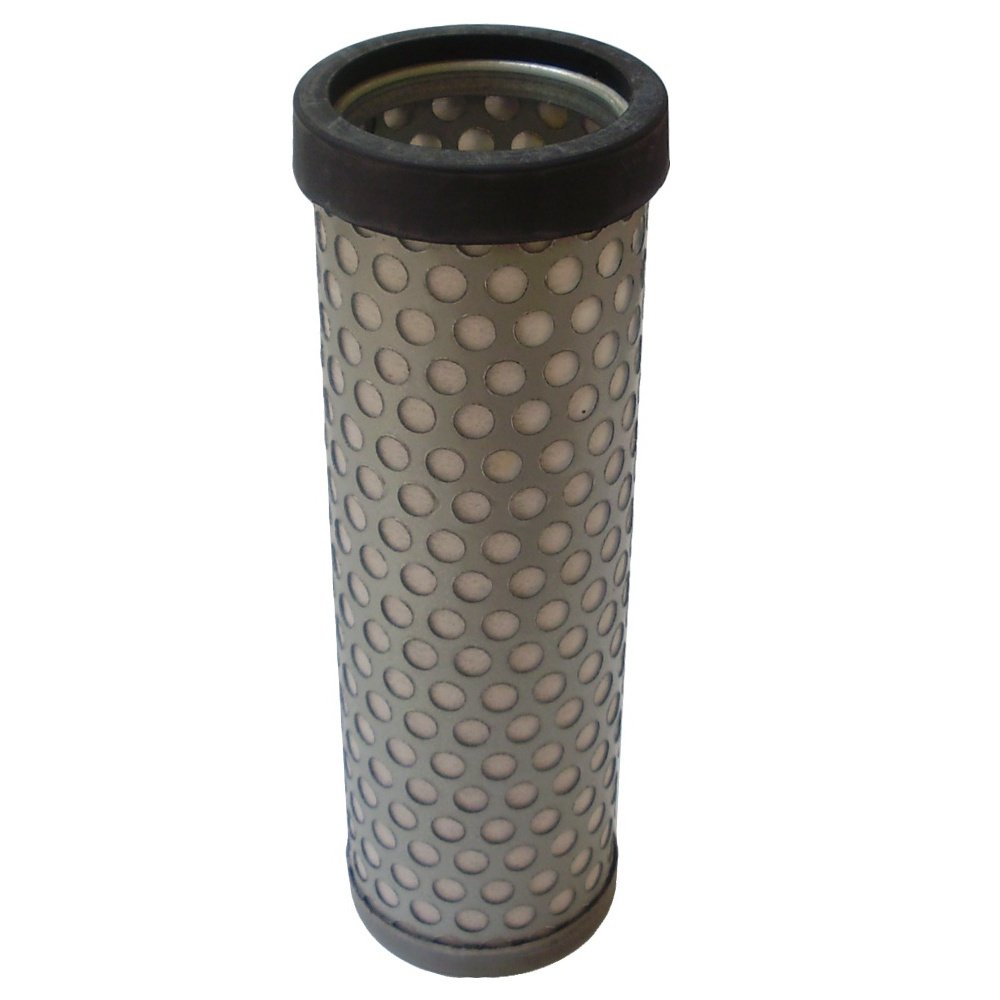

This Inner Air Filter is a non-genuine replacement element for Kubota compact machinery, designed to protect engines by maintaining clean, consistent airflow. It is suitable for machines such as the Kubota KX36-2 and KX41-2, and is built with durable, pleated filter media supported by a rigid core and moulded end caps for a secure seal. The element sits inside the air cleaner housing and is intended to be used together with the matching outer filter (LA1513). Key dimensions are Height 158 mm, Outer Diameter 51 mm, and Inner Diameter 39 x 17 mm for an accurate fit. Referenced by MPN A1049, it helps reduce wear, sustain performance, and support reliable starting in demanding site conditions.
Key Features:
- Non Genuine Part compatible with selected Kubota excavators and compact tractors
- Fine dust capture to protect cylinders, pistons, and turbochargers from abrasive particles
- Correct-fit dimensions: 158 mm height, 51 mm OD, 39 x 17 mm ID for easy installation
- Designed to be used with the outer filter (LA1513) to achieve full two-stage filtration
- Durable construction with a stable core for vibration resistance and consistent airflow
- Helps maintain engine performance, efficiency, and emissions between service intervals
- Straightforward replacement during routine servicing with no special tools
- Suitable for harsh, dusty environments commonly found on construction and landscaping sites
Typical Applications:
Ideal for Kubota mini excavators and compact tractors working in earthmoving, utilities, landscaping, agriculture, and plant hire. Use during scheduled maintenance or when restriction indicators show reduced airflow, to restore intake cleanliness and protect the engine.
Also known as:
Inner air element, safety element, secondary air filter, inner cartridge, engine intake filter, air cleaner insert, replacement inner filter.
Fits Models:
Alpha U20, Alpha U35, B1700, B2100, B2400, KX36, KX36-2, KX41, KX41-2, KX61, KX61-2, KX91, KX91-2, KX91-3, U20, U35
Alternate Part Numbers:
119631.12530, 6C040-95250, 119631-1253, 6C040-94250, 119631.1253, 6C040.94250, 6C040.95250, 11963112530, 6C04094250, 1196311253, 6C04095250, WGA1234S, SL 5886, SL5886, CF5002, PA4666, 1514A, 43263
Product Specifications
| L&S Part No. | LA1514 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | A1049 |
| Unit of Sale | 1 |
| Size | 158mm x 51mm x 51mm |
| Applications | Alpha U20, Alpha U35, AlphaU20, AlphaU35, B1700, B2100, B2400, KX36, KX36-2, KX362, KX41, KX41-2, KX412, KX61, KX61-2, KX612, KX91, KX91-2, KX91-3, KX912, KX913, U20, U35, ALPHAU20, ALPHAU35 |
| Machine Type | Excavators, Tractors |
| Fits Brands | Greyfriars, Kubota, Yanmar |
| Fits Models | KX36 | KX36-2 | KX41 | KX41-2 | KX61 | KX61-2 | KX91 | KX91-3 | U20 | U35 |
