Description
Overview:

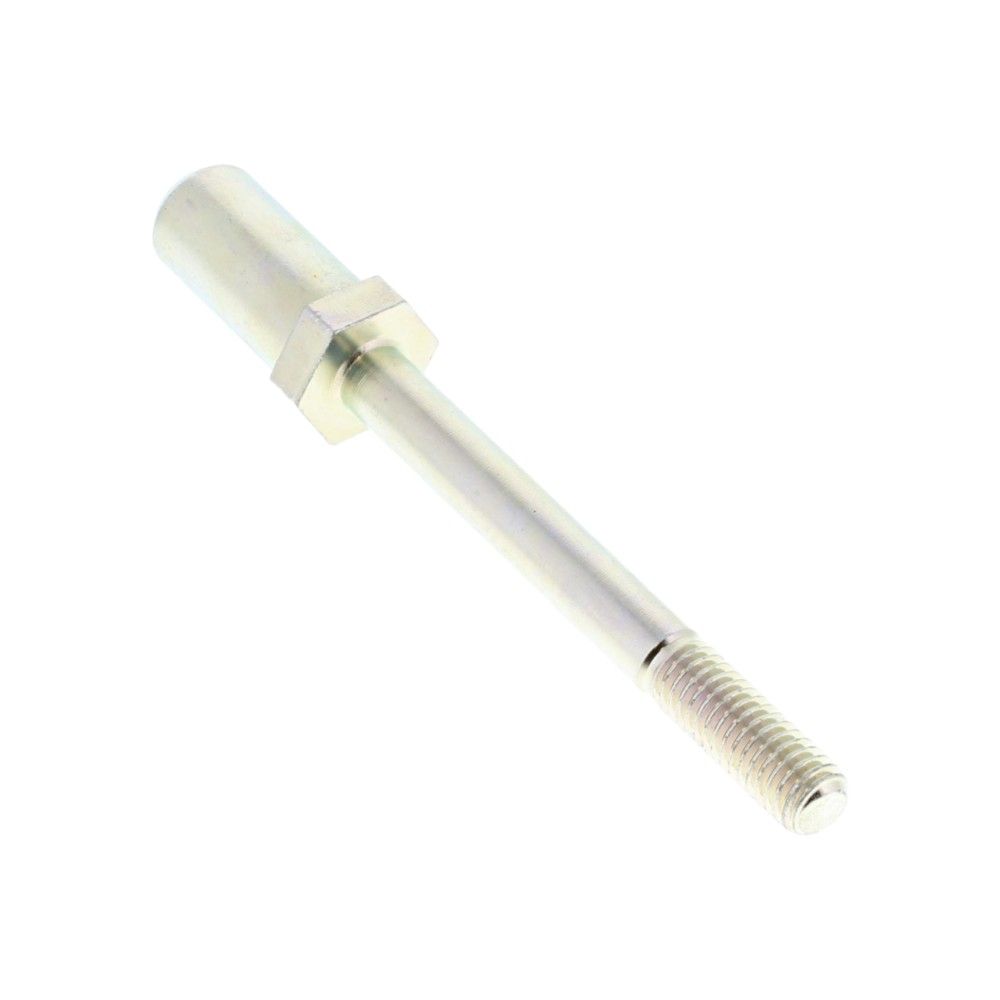

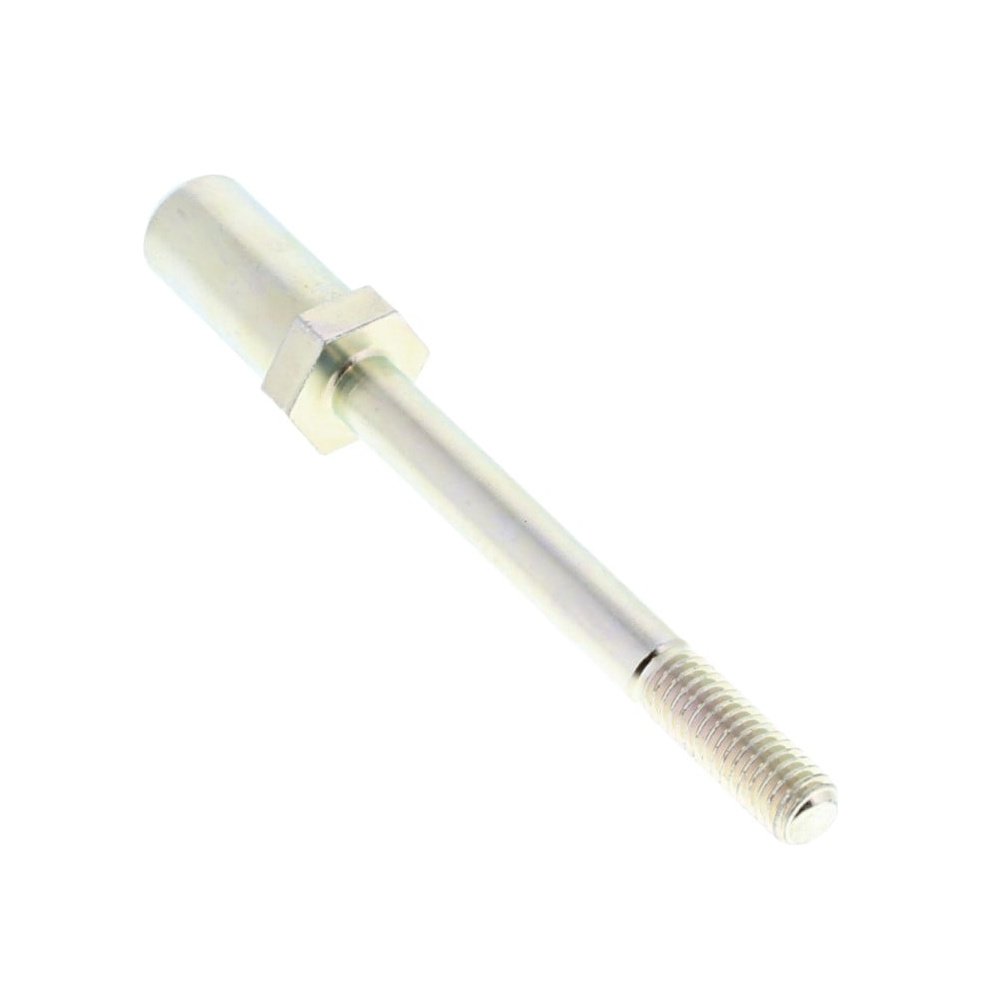

This Bolt Guide is a genuine Honda component for professional walk-behind mowers, including the HRH536 QX Pro and HRH536K1 QXE. It is a compact metal guide sleeve that aligns a fastening bolt through mating parts, helping the bolt seat squarely and clamp securely. By controlling the bolt path, it reduces the risk of cross-threading and wear to the surrounding holes. Built to Honda's production standard, it offers a reliable, exact-fit replacement that restores factory alignment and fastening integrity. Suitable for routine maintenance or full overhauls, it supports smooth, dependable operation across compatible HRD and HRH 53 cm class machines. OEM reference: 90012-VA5-700.
Key Features:
- Genuine Honda part for assured compatibility and fit on listed models
- Metal construction for strength, wear resistance, and long service life
- Guides bolts for accurate alignment and consistent seating under load
- Helps prevent cross-threading and elongation of mounting holes
- Stabilises joints to reduce vibration and loosening over time
- Precise, factory-spec dimensions for straightforward replacement
- Supports efficient servicing with minimal downtime
- Suitable for use during routine maintenance or complete strip-downs
Typical Applications:
Used wherever a bolt passes through mower components that need precise alignment, such as deck brackets, frame interfaces, or drive assemblies on compatible Honda HRD/HRH machines. Ideal when refitting parts after blade, deck, or transmission-related maintenance to maintain proper geometry and long-term fastening reliability.
Also known as:
Bolt holder, bolt support, fastener guide, guide bush, bolt sleeve, spacer sleeve, locating sleeve, alignment bush, guide tube.
Fits Models:
HRD535 QME, HRD535 QXE, HRD536K4 QXEH, HRH536 QX Pro, HRH536 QXE, HRH536K1 QXE, HRH536K2 QXE, HRH536K4 QXEH
Alternate Part Numbers:
90012-VA5-700, 90012VA5700
Product Specifications
| L&S Part No. | 90012 VA5 700 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 90012VA5700 |
| Unit of Sale | 1 |
| Machine Type | Mowers |
| Fits Brands | Honda |
| Key Features | - Genuine Honda part for HRD/HRH 53 cm mowers - Metal construction ensures strength and wear resistance - Guides bolts for accurate alignment and seating - Prevents cross-threading and hole elongation - Fits models HRD535, HRH536, HRH536K1, HRH536K2, HRH536K4 |
| Fits Models | HRH536 QXE | HRD535 QME | HRD535 QXE | HRH536K1 QXE | HRH536K2 QXE | HRH536K4 QXEH | HRD536K4 QXEH |
