Description
Overview:

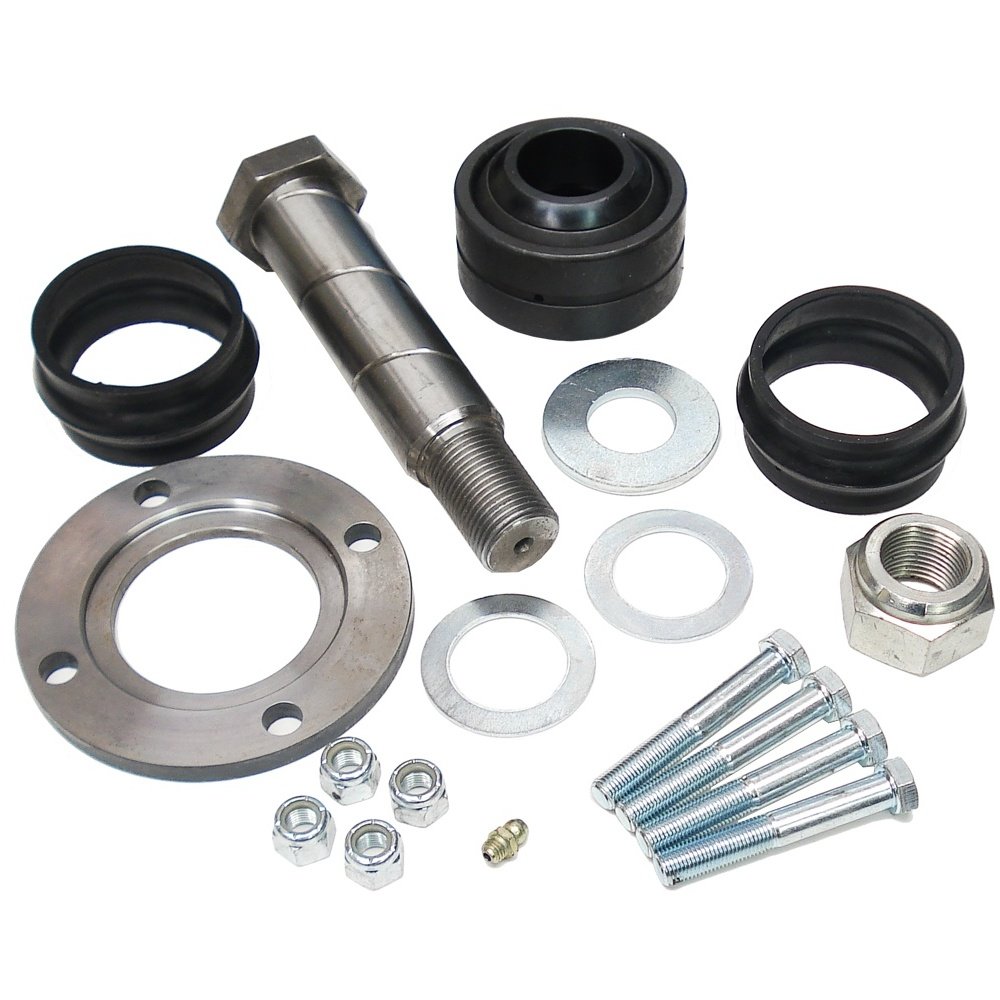

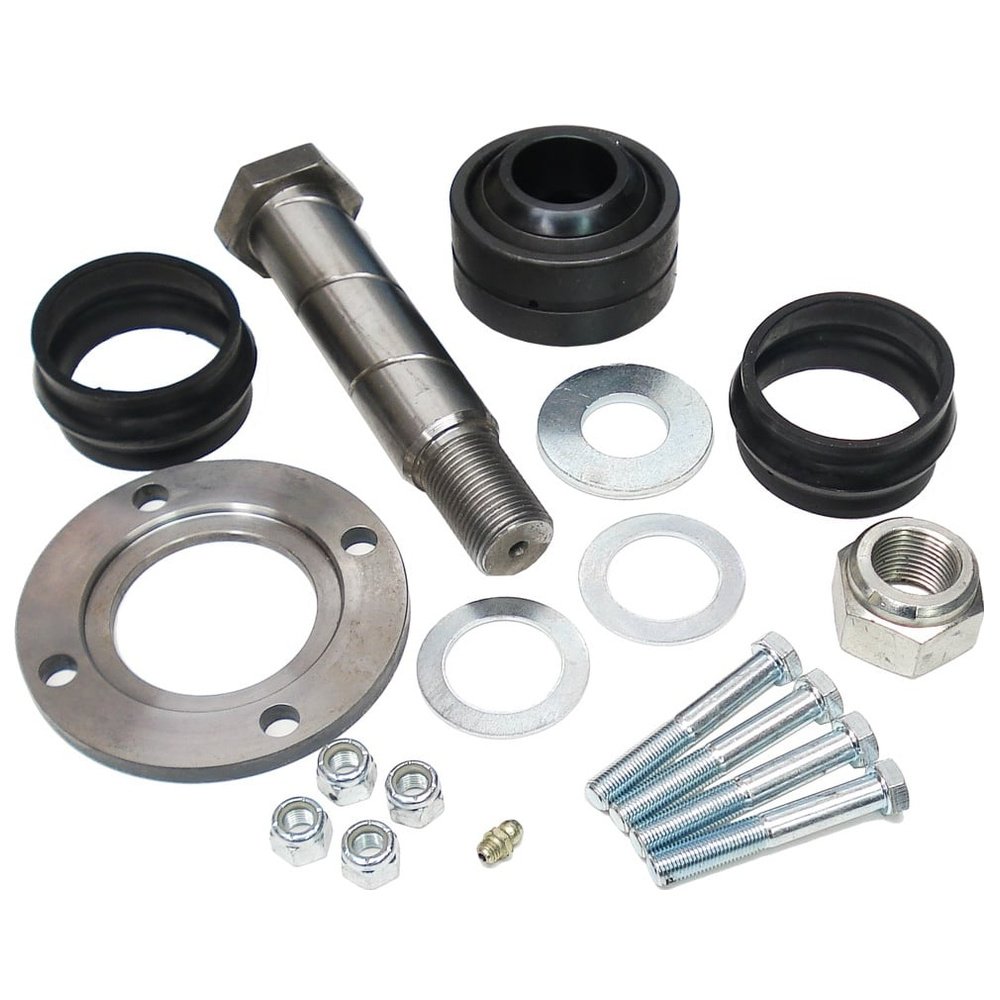

The Bottom Pivot Kit for Thwaites dumpers is a complete replacement set for the lower pivot point, helping restore smooth, controlled movement and reduce unwanted play. Built around heavy-duty steel components with a spherical bearing and protective seals, it is designed to handle demanding site conditions and frequent tipping cycles. Supplied as a matched kit to simplify repairs, it replaces worn parts in compatible machines and helps prevent further wear to housings and linkages. Suitable for a wide range of Thwaites models, including the 4000 and 6000, it is a practical choice for routine maintenance or full overhaul. Manufacturer Part Number (MPN): 109 135. Typical contents include the main pin, spherical bearing, flanges, washers, seals, and fixing bolts for a reliable, tidy installation.
Key Features:
- Precision fit for Thwaites chassis/body pivot points to restore smooth operation
- Robust steel pin and bearing components for long service life under heavy loads
- Spherical bearing helps accommodate minor misalignment and reduces binding
- Seals and washers help keep out dirt and moisture to limit wear and corrosion
- Includes fixing bolts and flanges for a straightforward, tidy assembly
- Helps reduce downtime by replacing all core wear parts in one visit
- Supports consistent handling and repeatable tipping performance
- Suitable for regular maintenance schedules in plant hire and contractor fleets
- MPN 109 135 for easy identification and ordering
- Compatible across multiple Thwaites models to simplify parts stocking
Typical Applications:
Used to refurbish the lower pivot assembly on Thwaites dumpers working in construction, groundworks, landscaping, utilities, and plant hire. Ideal when there is excessive play, noise, or uneven movement at the pivot. Suitable for planned overhauls, MOT-style inspections, or reactive repairs after heavy site use.
Also known as:
Bottom pivot assembly, lower pivot repair kit, chassis pivot kit, dumper body pivot kit, bottom hinge kit, lower articulation pivot kit.
Fits Models:
3000 Hi-Swivel, 3000Hi-Swivel, 4000, 4000 MK2, 4000MK2, 6000, 6000 MK3, 6000MK3, 7000, 7000 MK3, 7000MK3, 9000, 9000 MK3, 9000MK3
Product Specifications
| L&S Part No. | 109 135 |
|---|---|
| Unit of Sale | 1 |
| Applications | 3000 Hi-Swivel, 3000Hi-Swivel, 4000, 4000 MK2, 4000MK2, 6000, 6000 MK3, 6000MK3, 7000, 7000 MK3, 7000MK3, 9000, 9000 MK3, 9000MK3 |
| Machine Type | Dumpers |
