Description
Overview:

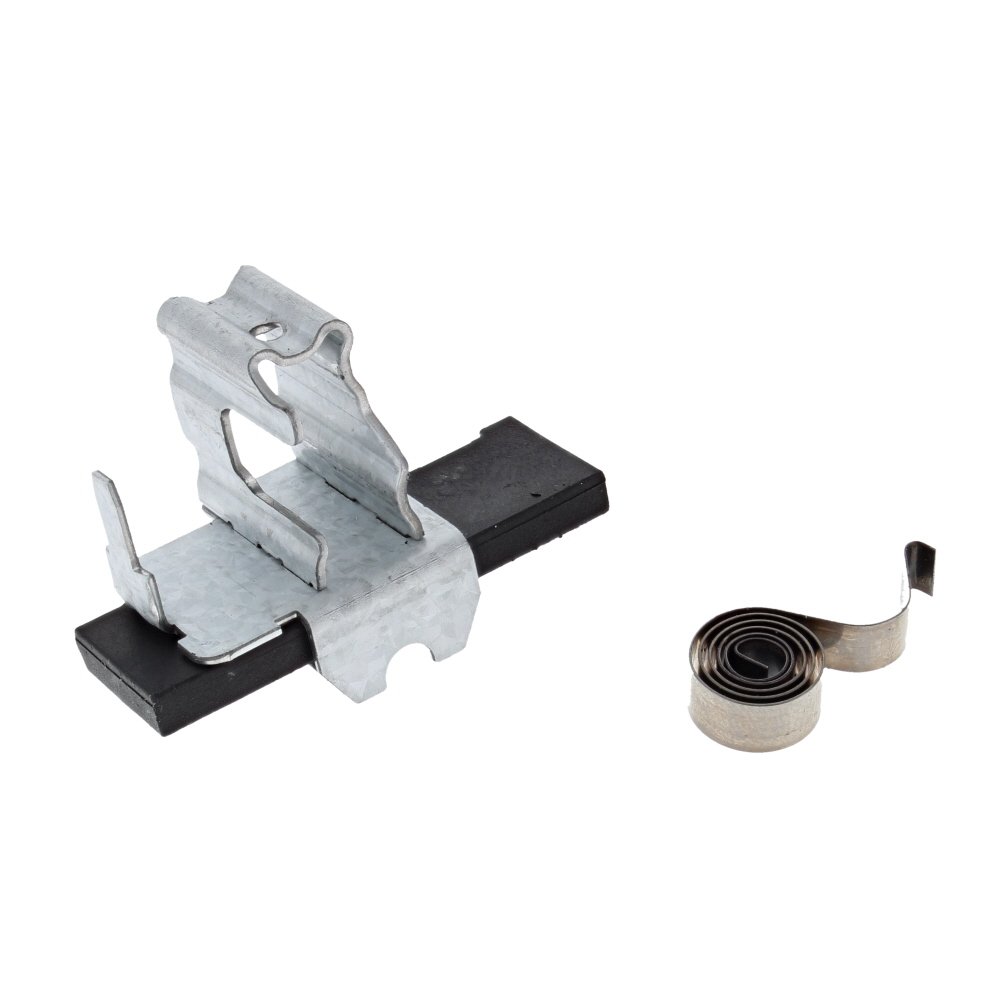

This Brush Holder is a genuine Bosch replacement for keeping the carbon brushes correctly seated against the commutator in your power tool's motor. Built with a heat‐resistant moulded body and robust metal contacts, it maintains stable brush pressure and reliable electrical contact to help protect the armature and reduce wear. It is designed for Bosch angle grinders and compatible saws, including the GWS 22-180 H and GWS 22-230 H, ensuring an exact fit and dependable performance. By holding the brushes securely in place, it supports smooth start-up, consistent running, and reduced sparking during heavy grinding or cutting. Genuine Part, OEM/MPN 1604336048, it is suitable as a direct replacement when servicing, or when a worn or heat-damaged holder is affecting tool performance.
Key Features:
- Genuine Bosch part for assured fit and compatibility
- Durable, heat-resistant housing with sturdy metal contacts
- Holds carbon brushes securely for consistent motor contact
- Helps reduce arcing, overheating, and premature brush wear
- Supports smooth running and stable power delivery under load
- Straightforward to fit using basic hand tools
- Suitable for routine maintenance alongside brush replacement
- Matches Bosch specifications for listed grinders and cut-off saws
- Helps extend service life of brushes, commutator, and armature
- OEM/MPN: 1604336048 for easy identification in service manuals
Typical Applications:
Used during scheduled maintenance or repairs on Bosch grinders and cut-off saws when replacing carbon brushes, addressing sparking, intermittent power, or poor performance. Ideal after heavy-duty grinding or cutting that has overheated or worn the original holder. Helps restore consistent contact pressure for metal fabrication, site work, demolition preparation, masonry grinding, and general workshop tasks.
Also known as:
Carbon brush holder, brush assembly, brush carrier, brush cage, brush block, brush mount, holder assembly for angle grinders and compatible Bosch machines.
Fits Models:
GCD 12 JL, GCD 12 JL Dry, GCD12JL, GCD12JLDry, GWS 20-180, GWS 20-230 H, GWS 20-230 P, GWS 22-180 H, GWS 22-230 H, GWS 22-230 P, GWS 23-180, GWS 23-220, GWS20-180, GWS20-230H, GWS20-230P, GWS22-180H, GWS22-230H, GWS22-230P, GWS23-180, GWS23-220
Alternate Part Numbers:
1 604 336 048, 1.604.336.048
Product Specifications
| L&S Part No. | 1604336048 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Bosch |
| OEM No. | 1604336048 |
| Unit of Sale | 1 |
| Applications | GCD 12 JL, GCD 12 JL Dry, GCD12JL, GCD12JLDry, GWS 20-180, GWS 20-230 H, GWS 20-230 P, GWS 22-180 H, GWS 22-230 H, GWS 22-230 P, GWS 23-180, GWS 23-220, GWS20-180, GWS20-230H, GWS20-230P, GWS22-180H, GWS22-230H, GWS22-230P, GWS23-180, GWS23-220 |
| Machine Type | Angle Grinder |
| Fits Brands | Bosch |
| Fits Models | GWS 20-230 H | GWS 22-180 H | GWS 22-230 H | GCD 12 JL Dry | GWS 20-230 P | GWS 22-230 P |
