Description
Overview:

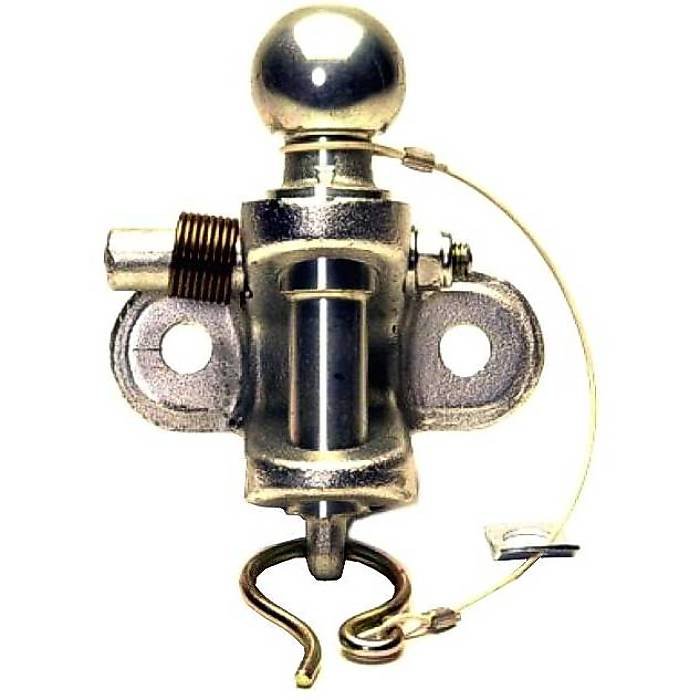

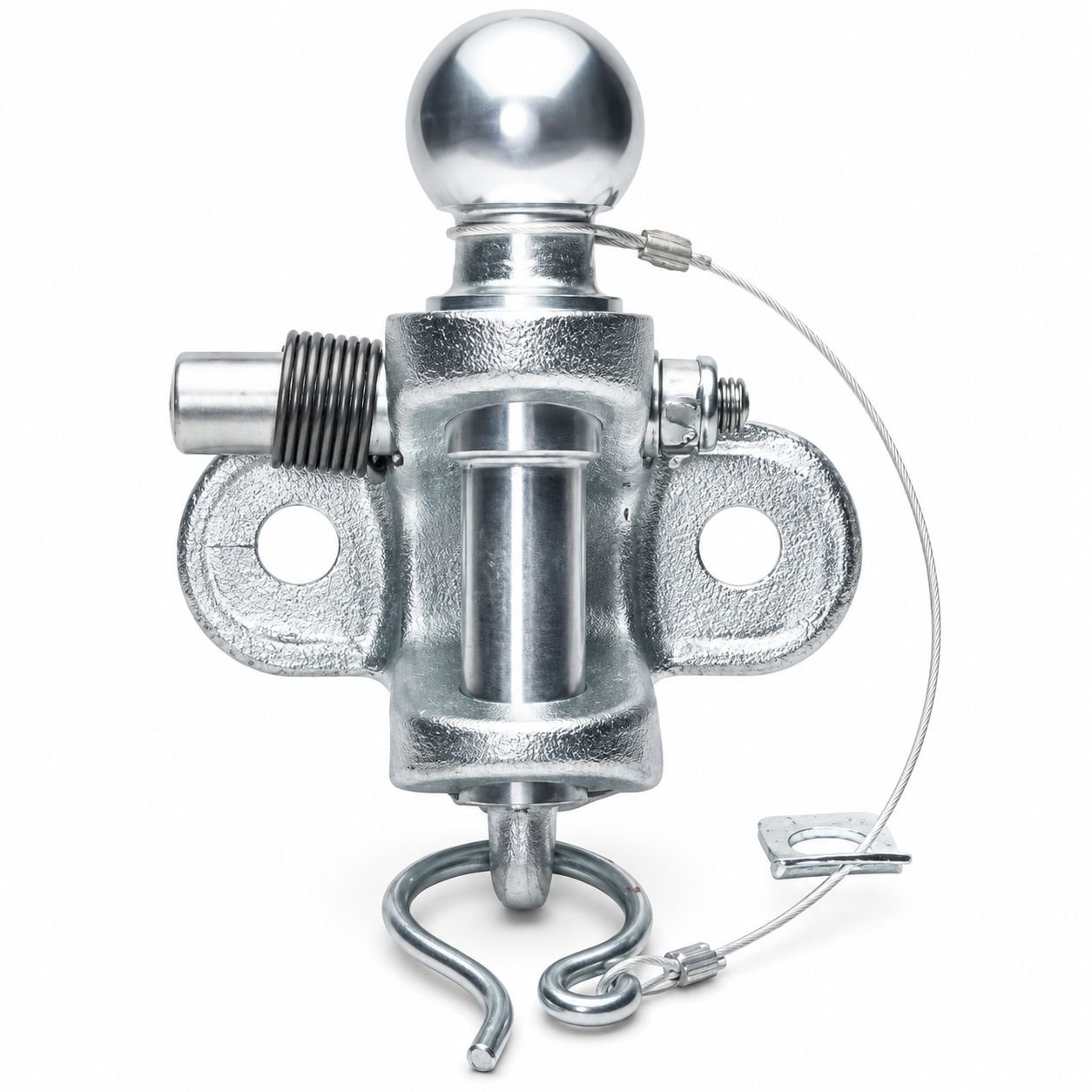

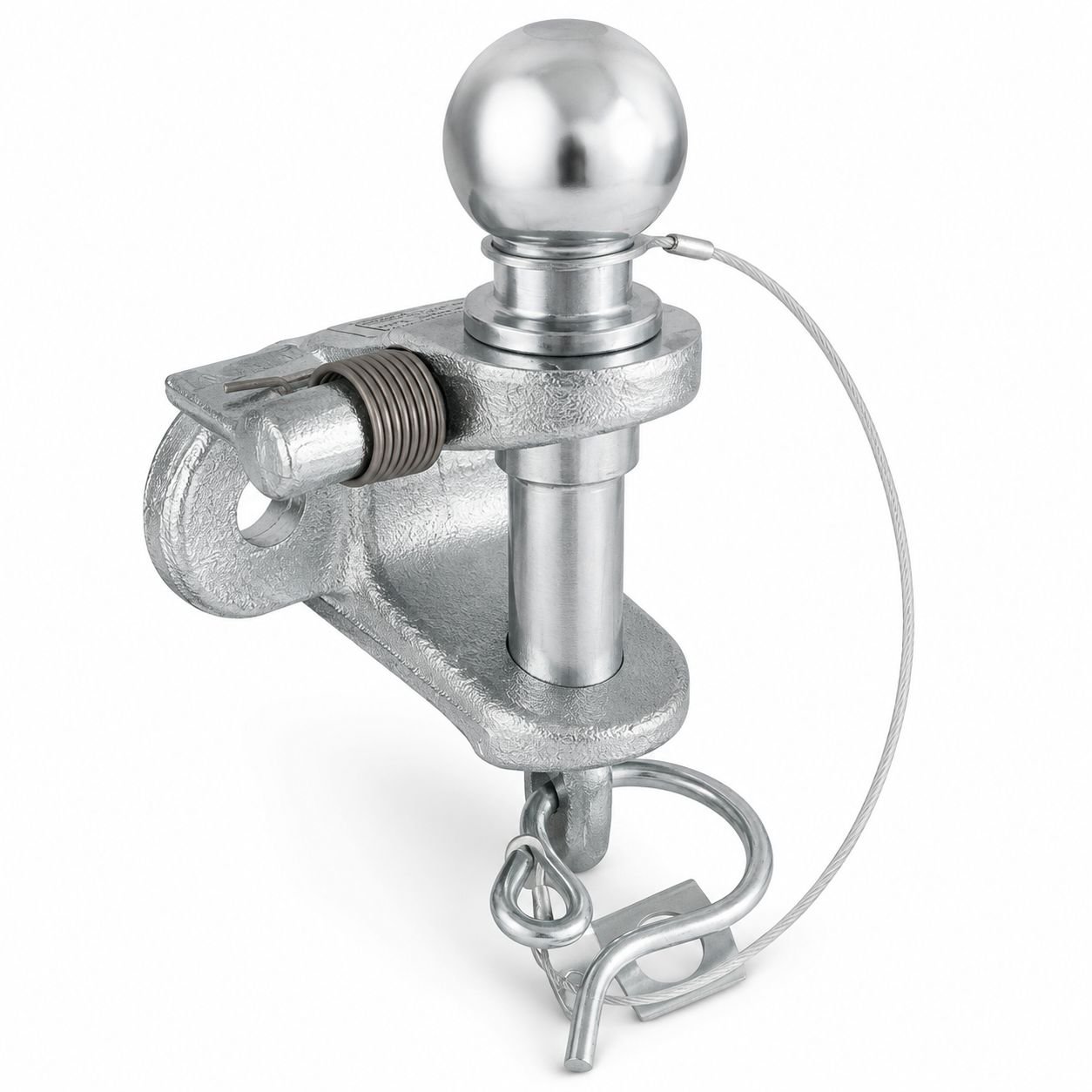

Bradley V352L universal hitch, carrying a 50mm tow ball mounted on a removable ball pin so the same unit serves both ball coupling trailers and towing eye trailers. Two-bolt mounting to the vehicle towing plate in accordance with ECE-R55-01. The ball forms part of the pin assembly, which is replaceable as a service item without changing the body.
Specification:
- D-value: 17kN
- S-value (vertical load): 200kg
- Ball diameter: 50mm
- Pin diameter: 25mm
- Mounting: 2 bolt
- Standard: ECE-R55-01
- Manufacturer part number: 185080815
Towing Capacity:
Maximum braked trailer weight derived from the D-value:
- Behind a 3,500kg vehicle: 3,430kg
- Behind a 7,500kg vehicle: 2,250kg
These are coupling limits only. The lowest of the coupling limit, the towing vehicle's plated towing limit, the trailer's gross weight and the driver's licence entitlement applies. Centre-axle trailers are rated on Dc and V-value rather than D.
Typical Applications:
Mixed trailer fleets on commercial vehicles and site transport where both ball couplings and towing eyes are in service. A replacement ball and pin assembly is available separately as part number KIT 172.
Product Specifications
| L&S Part No. | 800 160 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | AL-KO Kober |
| OEM No. | 185080815 |
| Unit of Sale | 1 |
| Machine Type | Trailers |
| Key Features | - D-value: 17kN, S-value: 200kg - Ball diameter: 50mm, Pin diameter: 25mm - Two-bolt mounting as per ECE-R55-01 - Serves ball and towing eye trailers - Replaceable ball and pin assembly available |
