Description
Overview:

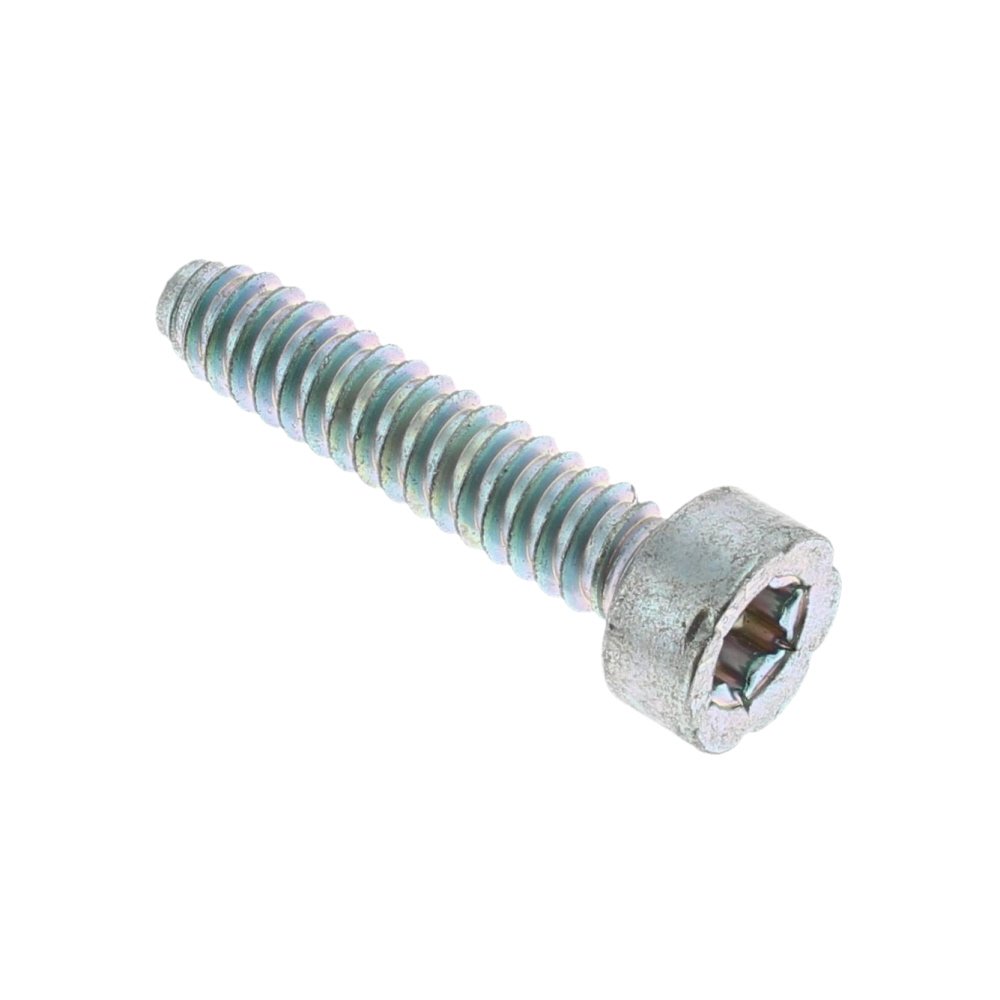

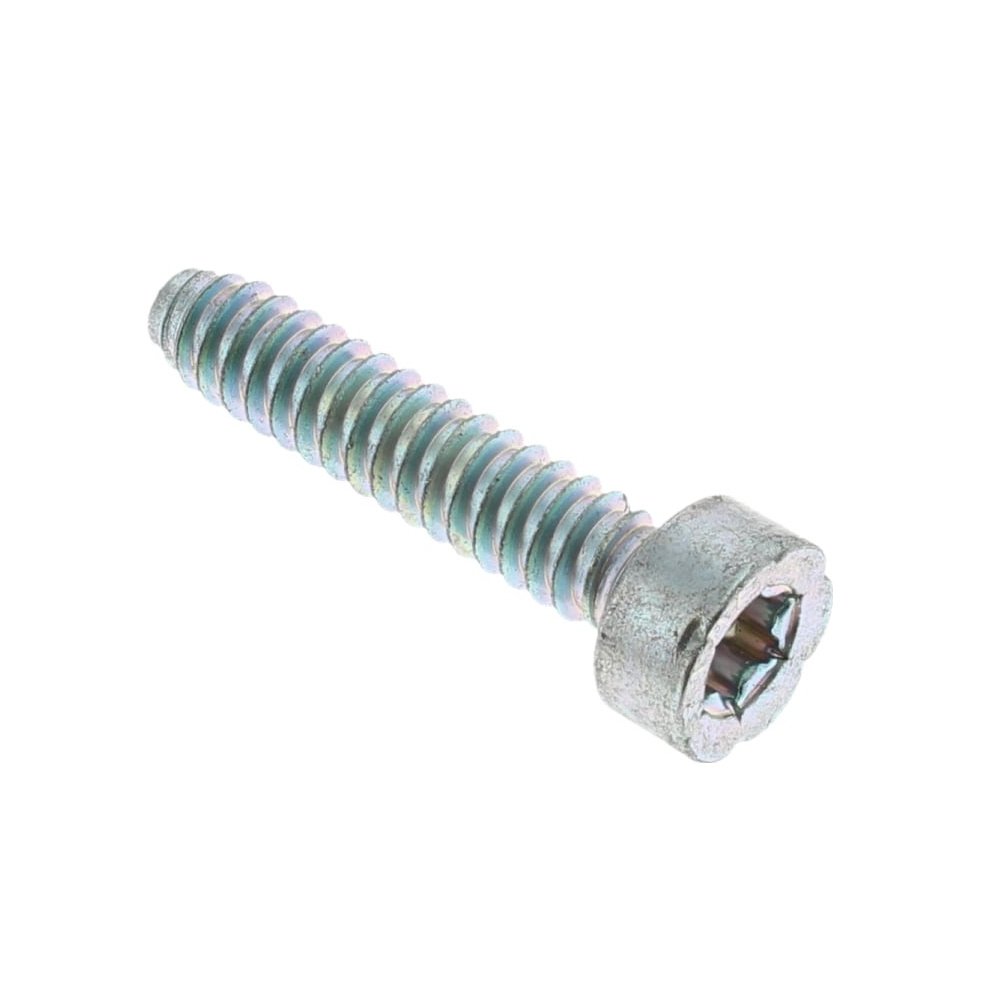

This Pan Head Self Tapping Screw D5 x 24 is a Genuine Stihl part designed for secure fastening across a wide range of Stihl machines, including the TS 400 and MS 230. It is a steel fastener with a corrosion‐resistant finish for dependable service in outdoor and workshop conditions. The self‐tapping thread forms its own mating thread in suitable materials, reducing the need for pre‐drilling and speeding up repairs and assembly. The pan head provides a broad bearing surface for reliable clamping. Size: 5 mm diameter x 24 mm length (0.20 in x 0.94 in). Ideal for routine maintenance, part replacement, and rebuilds where a D5 x 24 specification is required, helping keep your equipment assembled to the original standard.
Key Features:
- Genuine Stihl OEM part for verified compatibility and performance
- Pan head provides a wide seating area for secure, tidy fastening
- Self‐tapping thread for efficient installation without pre‐cut threads
- Durable steel with a corrosion‐resistant finish for long service life
- Size: 5 mm x 24 mm (0.20 in x 0.94 in) for direct like‐for‐like replacements
- Suitable for plastics, thin steel brackets and light alloy castings where specified
- Helps maintain factory build quality and reliability after repairs
- Fits a broad range of Stihl saws, brushcutters and Kombi tools when this size is specified
Typical Applications:
Used to secure covers, shrouds, air filter housings, guards, handles, accessory brackets and similar components on compatible Stihl equipment. Ideal when replacing missing, worn or corroded fixings during servicing. Suitable for fastening into plastic housings, sheet metal and cast alloy parts where a D5 x 24 self‐tapping screw is called for.
Also known as:
Thread‐forming screw, tapping fastener, self‐forming fastener, D5 × 24 fixing, 5 × 24 mm screw, equipment fixing, thread‐cutting screw.
Fits Models:
017, 018, 019 T, 021, 023, 025, 028, 028 AV, 029, 030, 031, 039, BT 45, FC 44, FC 55 DZ, FS 36, FS 38, FS 40, FS 44, FS 45, FS 45 C, FS 45 L, FS 46, FS 46 C, FS 50, FS 55, FS 55 C, FS 55 R, FS 55 RC, FS 55 T, FW 20, FW 20 Cart, HL 45, KM 55, KM 55 C, KM 55 R, KM 55 RC, MM 55, MM 55 C, MM 55 C MultiSystem, MM 55-Z MultiSystem, MS 170, MS 170 C, MS 180, MS 180 C, MS 190 T, MS 191 T, MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C, MS 270, MS 270 C, MS 280, MS 280 C, MS 290, MS 310, MS 390, TS 400, TS 460
Alternate Part Numbers:
9075-478-4155, 90754784155
Product Specifications
| L&S Part No. | 9075 478 4155 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90754784155 |
| Unit of Sale | 1 |
| Size | IS-P6 x 19mm |
| Applications | 017, 018, 019 T, 019T, 021, 023, 025, 028, 028 AV, 028AV, 029, 030, 031, 039, BT 45, BT45, FC 44, FC 55 DZ, FC44, FC55DZ, FS 36, FS 38, FS 40, FS 44, FS 45, FS 45 C, FS 45 L, FS 46, FS 46 C, FS 50, FS 55, FS 55 C, FS 55 R, FS 55 RC, FS 55 T, FS36, FS38, FS40, FS44, FS45, FS45C, FS45L, FS46, FS46C, FS50, FS55, FS55C, FS55R, FS55RC, FS55T, FW 20, FW 20 Cart, FW20, FW20 Cart, FW20Cart, HL 45, HL45, KM 55, KM 55 C, KM 55 R, KM 55 RC, KM55, KM55C, KM55R, KM55RC, MM 55, MM 55 C, MM 55 C MultiSystem, MM 55-Z MultiSystem, MM55, MM55-ZMultiSystem, MM55C, MS 170, MS 170 C, MS 180, MS 180 C, MS 190 T, MS 191 T, MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C, MS 270, MS 270 C, MS 280, MS 280 C, MS 290, MS 310, MS 390, MS170, MS170C, MS180, MS180C, MS190T, MS191T, MS210, MS210C, MS230, MS230C, MS250, MS250C, MS270, MS270C, MS280, MS280C, MS290, MS310, MS390, TS 400, TS 460, TS400, TS460 |
| Machine Type | Disc Cutters, Brushcutters, Chainsaws, Kombi Tools |
| Fits Brands | Stihl |
| Fits Models | TS400 | MS170, MS170C | MS180, MS180C | MS230, MS230C | MS250, MS250C | MS290, MS310, MS390 | 030, 031 | 029, 039 | MS270, MS270C, MS280, MS280C | 028, 028AV | TS460 | FS36, FS40, FS44 | FS38, FS45, FS46 | FS40, FS50 | FS55, FS55C, FS55R | FW20 Cart | 017 | 018 | 019T | 021, 023, 025 | MS190T | MS191T | KM55, KM55C, KM55R, KM55RC | MM 55, MM 55 C MultiSystem | MM 55-Z MultiSystem | FC 44 | FC 55 DZ | BT 45 | HL45 |
