Description
Overview:

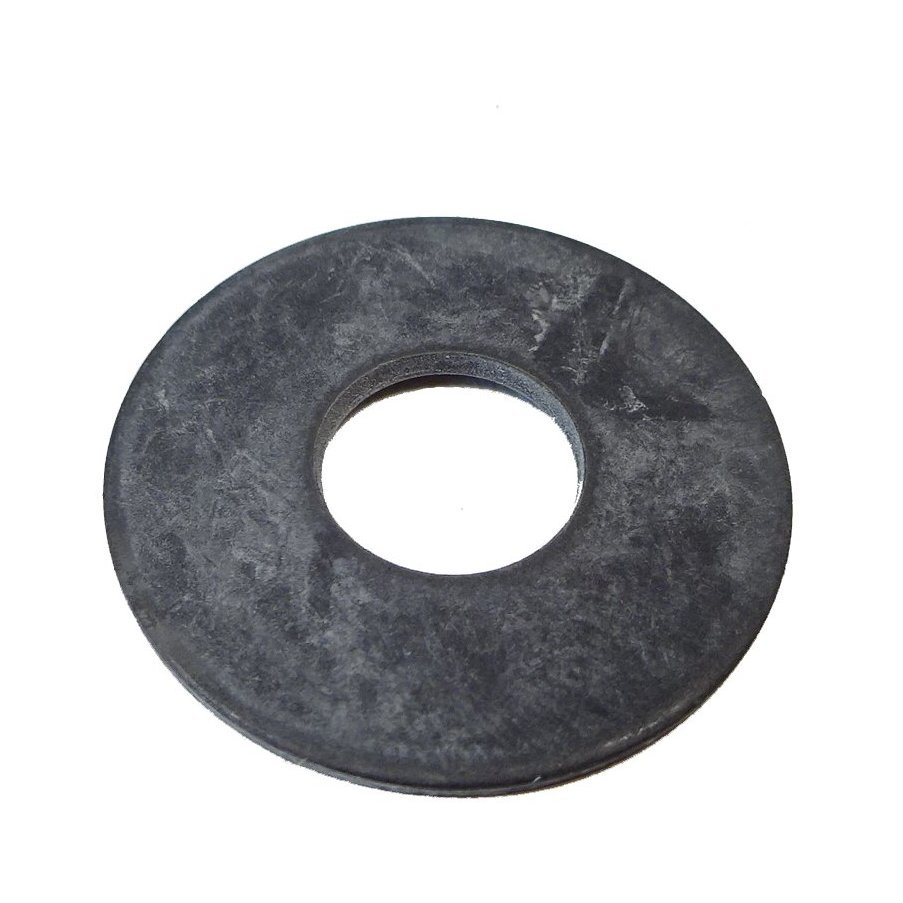

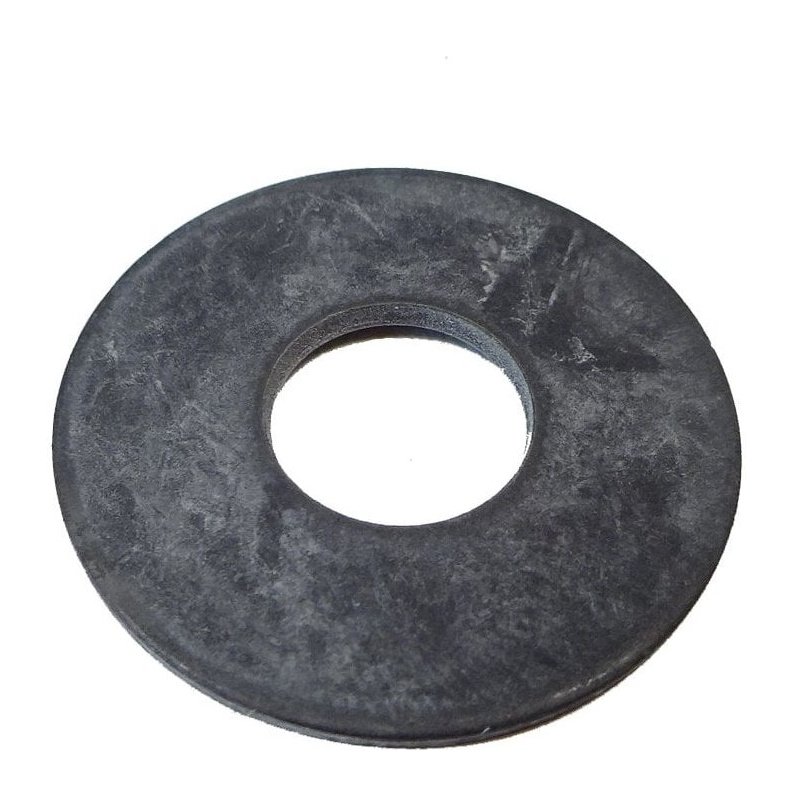

The Cup Spring 28x10.2x1.25 is a Genuine Stihl OEM component designed to maintain stable preload and tension in compact mechanical assemblies. Made from durable spring steel for strength and resilience, it supports smooth operation in high-vibration environments. This cup-shaped spring is commonly used in Stihl pole pruners and selected walk-behind mowers to keep parts seated and to compensate for wear. It is identified by MPN 9485 648 1694 and matches precise dimensions of 28 mm outer diameter, 10.2 mm inner diameter, and 1.25 mm thickness for a reliable fit. Suitable for professional and domestic users alike, it is a dependable replacement choice for machines such as the Stihl HT 130 and HT 131.
Key Features:
- Genuine Stihl OEM part for assured fit and function
- Robust spring steel construction for long service life
- Precise dimensions: 28 mm OD, 10.2 mm ID, 1.25 mm thick
- Maintains consistent preload to reduce looseness and vibration
- Compact form factor improves assembly stability without bulk
- Helps prevent premature wear of mating parts
- Suitable for frequent use in demanding outdoor conditions
- Straightforward like-for-like replacement with the correct MPN
- Optimised to integrate with Stihl assemblies across multiple models
- Supports dependable performance in pole pruners and lawn mowers
Typical Applications:
Used wherever controlled clamping force and tension are required in Stihl equipment, such as in drive-related linkages, assemblies that experience vibration, and interfaces that need a resilient preload. Ideal for maintaining adjustment stability and compensating for thermal expansion or component settling in pole pruners and selected mower mechanisms.
Also known as:
Disc spring, Belleville washer, conical spring washer, washer spring, spring washer, preload washer, tension washer.
Fits Models:
HT 100, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 250, HT 56 C, HT 56C, HT 70, HT 70K, HT 73, HT 75, HT-KM, HT-KM Pole Pruner, HTKM, MB 650.3 VS, MB 655.3 RS, MB 655.3 VS, MB 655.3 YS, RM 655.0 RS, RM 655.0 VS, RM 655.0 YS, RM 655.1 RS, RM 655.1 VS.
Alternate Part Numbers:
9485-648-1694, 94856481694
Product Specifications
| L&S Part No. | 9485 648 1694 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94856481694 |
| Unit of Sale | 1 |
| Applications | HT 100, HT 101, HT 102, HT 103, HT 130, HT 131, HT 132, HT 133, HT 250, HT 56 C, HT 70, HT 73, HT 75, HT-KM, HT-KM Pole Pruner, HT100, HT101, HT102, HT103, HT130, HT131, HT132, HT133, HT250, HT56 C, HT56C, HT70, HT70K, HT73, HT75, HTKM, MB 650.3 VS, MB 655.3 RS, MB 655.3 VS, MB 655.3 YS, MB650.3VS, MB655.3RS, MB655.3VS, MB655.3YS, RM 655.0 RS, RM 655.0 VS, RM 655.0 YS, RM 655.1 RS, RM 655.1 VS, RM655.0RS, RM655.0VS, RM655.0YS, RM655.1RS, RM655.1VS |
| Machine Type | Pole Pruners, Mowers |
| Fits Brands | Stihl |
| Fits Models | HT56 C | HT70, HT70K, HT75 | HT73 | HT101 | HT102, HT103 | HT130 | HT131 | HT132, HT133 | HT-KM Pole Pruner | RM 655.0 VS | RM 655.0 RS | MB 655.3 VS | MB 655.3 YS | MB 655.3 RS | MB 650.3 VS | RM 655.0 YS | RM 655.1 VS | RM 655.1 RS |
